Wastewater/Activity/PacpInspection/1.0Jun 6, 2017, 08:17 AM
- Date
- 06/06/2017
- W/O
- 641200
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00775
- PipeID
- P15970
- Time
- 1:17 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K4540
- Sewer Name
- 21 LA VERNE-"B" STREET TRUNK
- City
- LA VERNE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 05
- Purpose
- Routine Assessment
- Project
- WO_641200_TV21051_JUN2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 21 0882
- Downstream MH
- 21 0881
- Dir. of Survey
- Downstream
- Length Surveyed
- 195.7 ft.
- Total Length
- 195.7 ft.
- Structural Index
- 5
- Structural Quick
- 5100
- Structural Rating
- 5
- O&M Index
- 2
- O&M Quick
- 2G00
- O&M Rating
- 78
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 83
Observation photos (2)

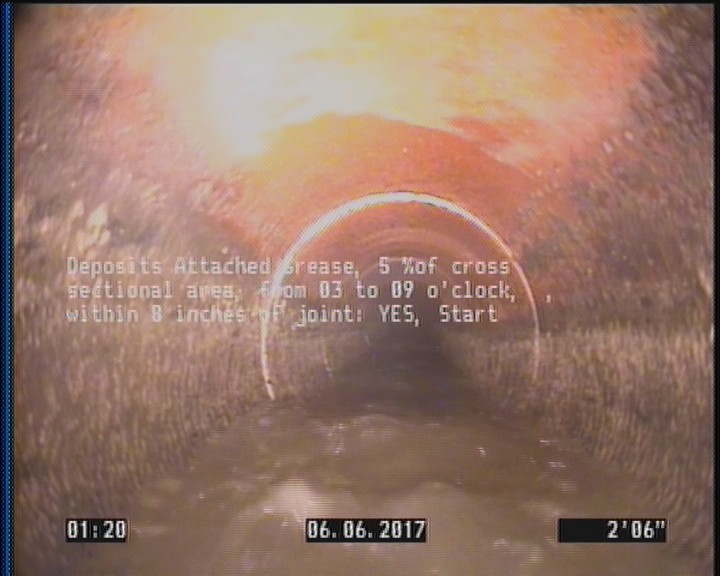

2.5 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

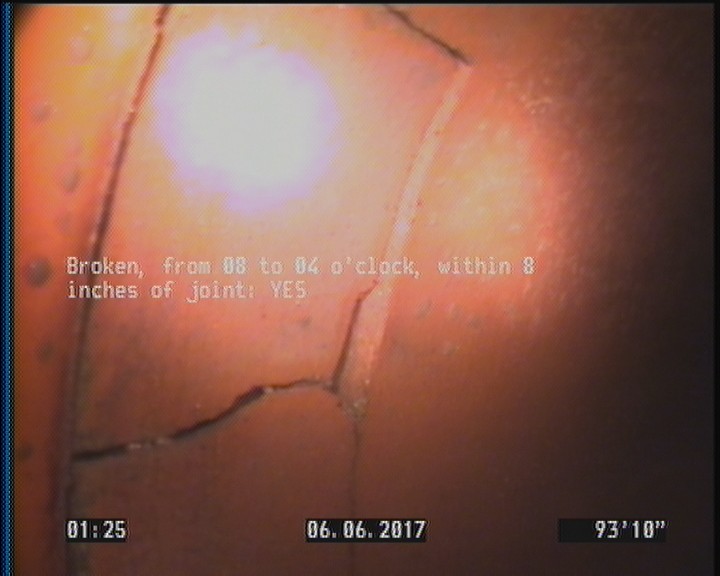

93.9 ft. - Broken, from 08 to 04 o'clock, within 8 inches of joint: YES
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 195.7 | DAGS | — |
| 0 | MWL | — |
| 2.5 | DAGS | — |
| 195.7 | AMH | 21 0881 |
| 93.9 | B | — |
| 0 | MWM | — |
| 0 | AMH | 21 0882 |
Properties (6)
- additional_info
- SC345355
- custom_field_two
- 1
- customer
- LACSD
- datetime
- 2017-06-06T01:17:26-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
