Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 21, 2017, 09:54 AM

  • 02 0009_02 0008_21062017_041102.mp4

Date
06/21/2017
W/O
640701
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00234
PipeID
P03035
Time
2:54 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4623
Sewer Name
02 ARTESIA EXTENSION TRUNK
City
BELLFLOWER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
38
Purpose
Routine Assessment
Project
WO_640701_TV02341_JUN2017
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
21 in.
Width
21 in.
Upstream MH
02 0009
Downstream MH
02 0008
Dir. of Survey
Downstream
Length Surveyed
364.8 ft.
Total Length
364.8 ft.
Structural Index
3
Structural Quick
4D39
Structural Rating
167
O&M Index
1
O&M Quick
2215
O&M Rating
9
Overall Index
3
Overall Quick
—
Overall Rating
176
Pipe schematic from manhole 02 0009 to 02 0008
MH: 02 0009MH: 02 0008downstream0 ft. MGO - General Observation - CONNECTION AT THE MH 3 O'CLOCK0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 02 00090 ft. MWM - Water Mark, 35 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT THE MH 9 O'CLOCK64.9 ft. CM - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES94.4 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES97.5 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start113.8 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"180.3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES182.3 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: NO, 6"191.4 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start191.4 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish233.1 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish233.1 ft. FM - Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Start249.7 ft. RFJ - Roots Fine Joint, from 09 to 03 o'clock, within 8 inches of joint: YESR252.7 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES252.7 ft. RFJ - Roots Fine Joint, at 02 o'clock, within 8 inches of joint: YESR254.9 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: NO, 6"256 ft. RFJ - Roots Fine Joint, from 09 to 03 o'clock, within 8 inches of joint: YESR312.2 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"312.2 ft. RFL - Roots Fine Lateral, at 12 o'clock312.2 ft. RFJ - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YESR357.4 ft. FM - Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Finish364.8 ft. AMH - Downstream Manhole, Survey Ends - 02 0008

Observation photos (8)

  • Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES

    64.9 ft. - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    94.4 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

    97.5 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

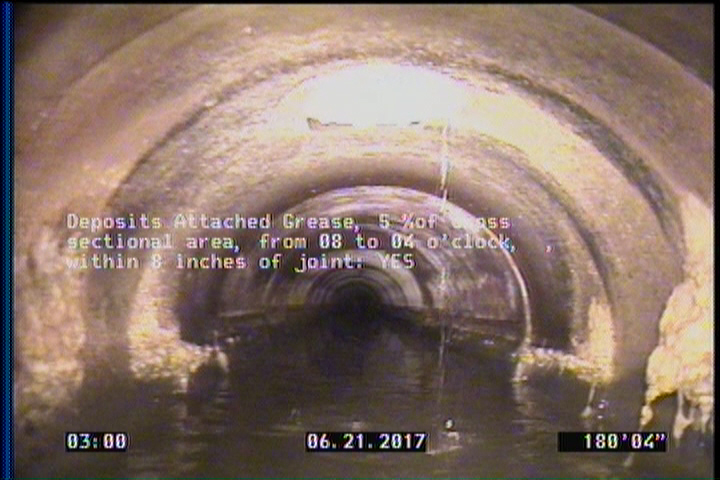

  • Deposits Attached Grease, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES

    180.3 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    191.4 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

  • Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

    233.1 ft. - Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

  • Deposits Attached Grease, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES

    252.7 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES

  • Roots Fine Lateral, at 12 o'clock

    312.2 ft. - Roots Fine Lateral, at 12 o'clock

All inspections of P03035Work order 640701

Observations (25)

DistanceCodeObservation
312.2TF—
312.2RFL—
233.1CM—
191.4CM—
0MGOCONNECTION AT THE MH 3 O'CLOCK
0MWL—
113.8TF—
252.7DAGS—
97.5CL—
233.1FM—
357.4FM—
252.7RFJ—
249.7RFJ—
0AMH02 0009
312.2RFJ—
94.4CL—
191.4CL—
180.3DAGS—
0MWM—
254.9TFA—
182.3TFA—
364.8AMH02 0008
0MGOCONNECTION AT THE MH 9 O'CLOCK
64.9CM—
256RFJ—

Properties (6)

additional_info
SC345338
custom_field_two
2
customer
LACSD
datetime
2017-06-21T02:54:27-07:00
documentation
PROPIPE
is_lateral_inspection
false
