Wastewater/Activity/PacpInspection/1.0Feb 18, 2017, 12:45 AM
H 0200_H 0199 _010102_043429.mp4
- Date
- 02/17/2017
- W/O
- 1590881
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00169
- PipeID
- P11224
- Time
- 4:45 PM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4320
- Sewer Name
- H JOINT OUTFALL H - UNIT 2C
- City
- BELL GARDENS
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 23
- Purpose
- Routine Assessment
- Project
- WO_624328_TV02168_MAR2017
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 36 in.
- Width
- 36 in.
- Upstream MH
- H 0200
- Downstream MH
- H 0199
- Dir. of Survey
- Downstream
- Length Surveyed
- 457.4 ft.
- Total Length
- 457.4 ft.
- Structural Index
- 2
- Structural Quick
- 2Q1Q
- Structural Rating
- 273
- O&M Index
- 2
- O&M Quick
- 2Q00
- O&M Rating
- 182
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 455
Observation photos (3)

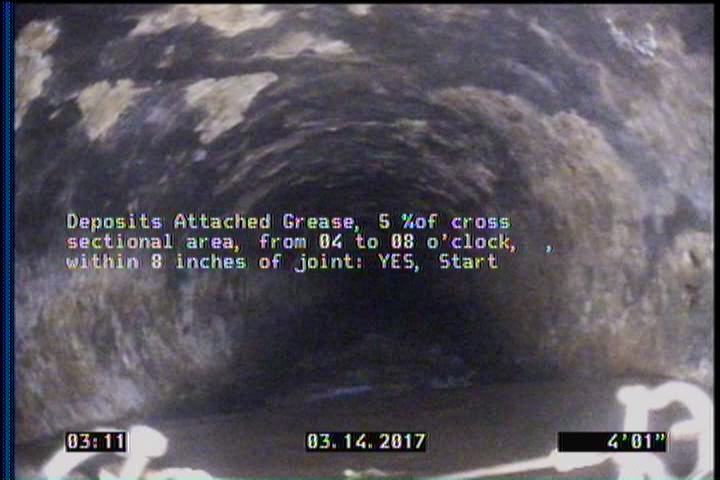

4 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

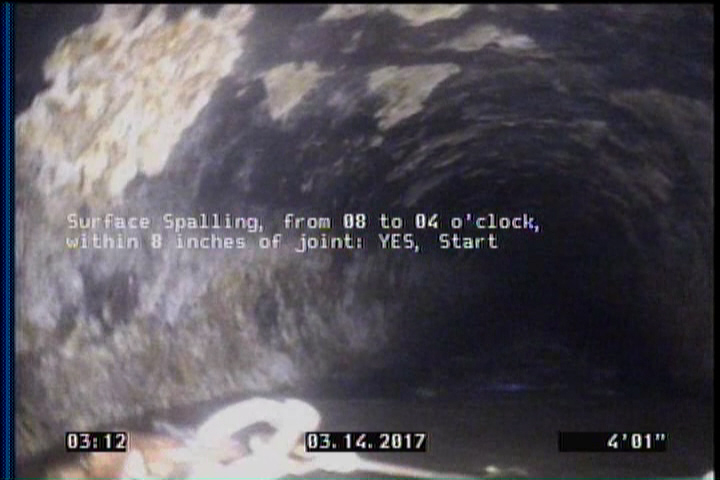

4 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

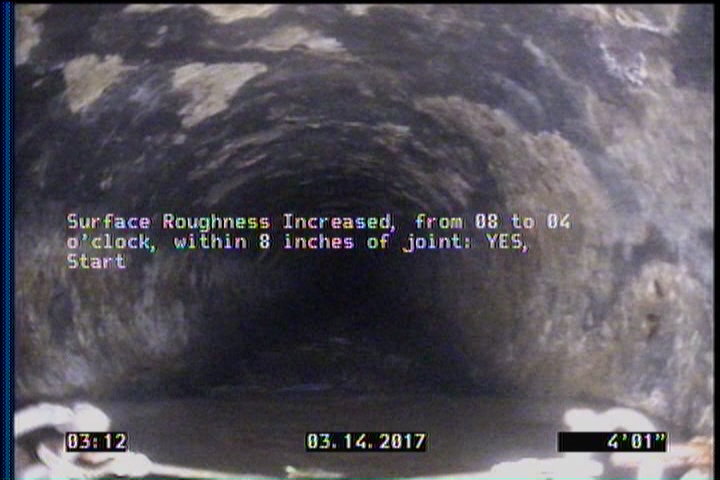

4 ft. - Surface Roughness Increased, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 4 | DAGS | — |
| 0 | AMH | H 0200 |
| 4 | SSS | — |
| 4 | SRI | — |
| 457.1 | DAGS | — |
| 457.1 | SSS | — |
| 457.1 | SRI | — |
| 457.4 | AMH | H 0199 |
| 0 | MWM | — |
| 0 | MWL | — |
Properties (6)
- additional_info
- SC31734
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-02-17T16:45:05-08:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
