Wastewater/Activity/PacpInspection/1.0Jul 28, 2017, 06:45 AM
03 0060_03 0059_11082017_104435.mp4
- Date
- 07/27/2017
- W/O
- 646534
- Weather
- Dry
- Operator/Surveyor
- M.MARTINEZ
- Sewer ID
- Z00366
- PipeID
- P05081
- Time
- 11:45 PM
- Certificate
- U-115-06022794
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3994
- Sewer Name
- 03 LOS COYOTES DIAGONAL TRUNK
- City
- LAKEWOOD
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- WO_646534_TV03011_JUL2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 03 0060
- Downstream MH
- 03 0059
- Dir. of Survey
- Downstream
- Length Surveyed
- 196.6 ft.
- Total Length
- 196.6 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2311
- O&M Rating
- 7
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 7
Observation photos (2)

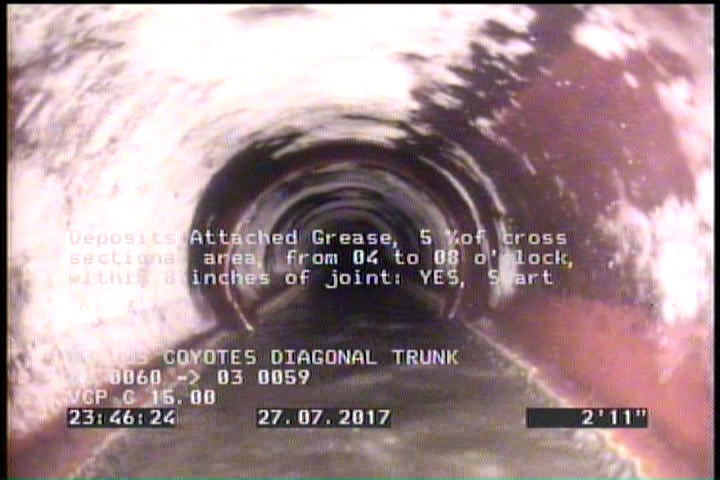

2.9 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

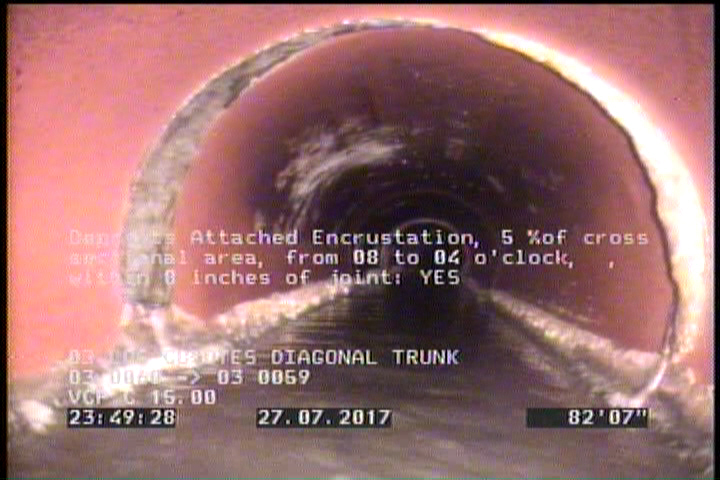

82.6 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 39 | TB | — |
| 196.6 | MSA | UNABLE TO GET PAST UNKNOWN OBSTACLE |
| 107.8 | LL | — |
| 196.6 | OBZ | . |
| 152.2 | OBZ | UNDER FLOWLINE |
| 196.6 | DAGS | — |
| 2.9 | DAGS | — |
| 0 | MWL | — |
| 82.6 | DAE | — |
| 144.9 | TB | — |
| 0 | AMH | 03 0060 |
| 0 | MWM | — |
Properties (4)
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2017-07-27T23:45:59-07:00
- is_lateral_inspection
- false
