Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 3, 2017, 07:04 AM

  • 03 0041_03 0040_03082017_001658.mp4

Date
08/03/2017
W/O
646910
Weather
Dry
Operator/Surveyor
B. FUGATE
Sewer ID
Z00366
PipeID
P05061
Time
12:04 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4769
Sewer Name
03 LOS COYOTES DIAGONAL TRUNK
City
LAKEWOOD
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 03
Page No.
13
Purpose
Routine Assessment
Project
WO_646534_TV03011_JUL2017
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
03 0041
Downstream MH
03 0040
Dir. of Survey
Downstream
Length Surveyed
336.8 ft.
Total Length
336.8 ft.
Structural Index
3
Structural Quick
3A00
Structural Rating
36
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
36
Pipe schematic from manhole 03 0041 to 03 0040
MH: 03 0041MH: 03 0040downstream0 ft. AMH - Upstream Manhole, Survey Begins - 03 00410 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area50.3 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"51.8 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES105.3 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"107.1 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES148.9 ft. CM - Crack Multiple, from 09 to 04 o'clock, within 8 inches of joint: YES150.7 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"197.4 ft. TS - Tap Saddle, at 02 o'clock, -, within 8 inches of joint: NO, 6"240.3 ft. CM - Crack Multiple, from 10 to 04 o'clock, within 8 inches of joint: YES243.6 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"296.8 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start336.8 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK336.8 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish336.8 ft. AMH - Downstream Manhole, Survey Ends - 03 0040336.8 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK

Observation photos (6)

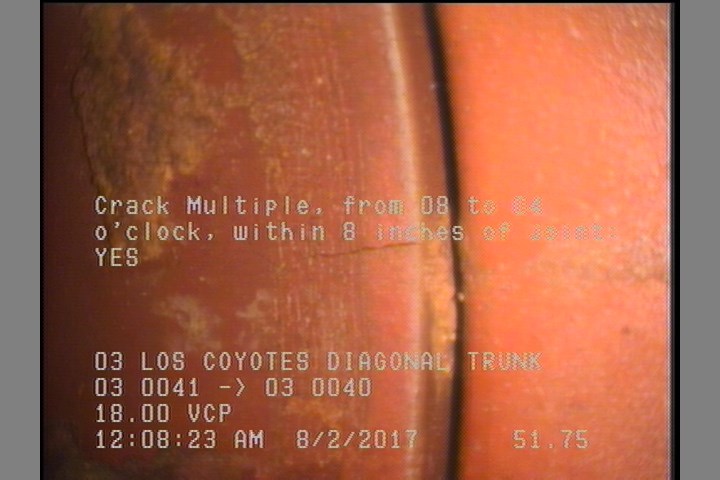

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    51.8 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

    107.1 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

  • Crack Multiple, from 09 to 04 o'clock, within 8 inches of joint: YES

    148.9 ft. - Crack Multiple, from 09 to 04 o'clock, within 8 inches of joint: YES

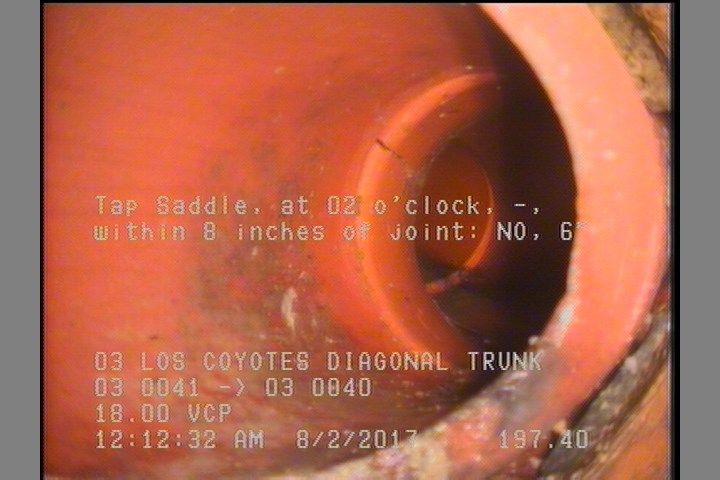

  • Tap Saddle, at 02 o'clock, -, within 8 inches of joint: NO, 6"

    197.4 ft. - Tap Saddle, at 02 o'clock, -, within 8 inches of joint: NO, 6"

  • Crack Multiple, from 10 to 04 o'clock, within 8 inches of joint: YES

    240.3 ft. - Crack Multiple, from 10 to 04 o'clock, within 8 inches of joint: YES

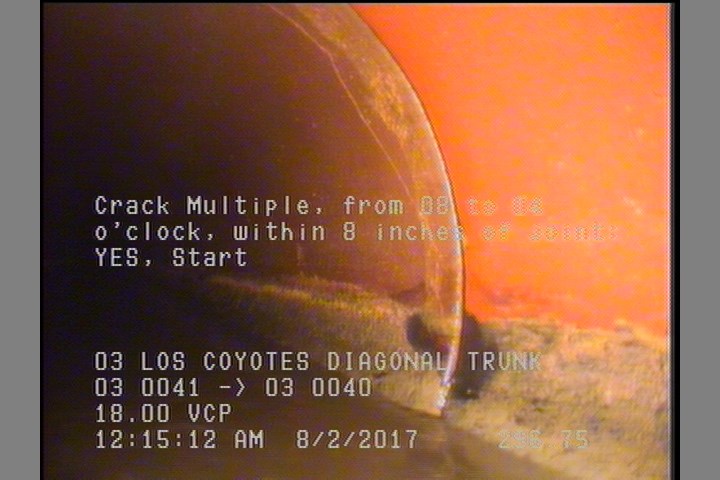

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    296.8 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P05061Work order 646910

Observations (17)

DistanceCodeObservation
150.7TF—
243.6TF—
0AMH03 0041
197.4TS—
0MWM—
148.9CM—
336.8MGOCONNECTION AT MH 9 O'CLOCK
107.1CM—
336.8CM—
296.8CM—
50.3TF—
336.8AMH03 0040
0MWL—
240.3CM—
51.8CM—
336.8MGOCONNECTION AT MH 3 O'CLOCK
105.3TF—

Properties (6)

additional_info
SC345529
custom_field_two
3
customer
LACSD
datetime
2017-08-03T00:04:52-07:00
documentation
PRO PIPE
is_lateral_inspection
false
