Wastewater/Activity/PacpInspection/1.0Jul 20, 2017, 06:21 AM
03 0462A_03 0462_07192017_232122.mp4
- Date
- 07/19/2017
- W/O
- 646485
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00402
- PipeID
- P05190
- Time
- 11:21 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4713
- Sewer Name
- 03 PUMP DISTRICTS #S 7&9 CONNECTION TRUNK
- City
- LONG BEACH
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 23
- Purpose
- Routine Assessment
- Project
- WO_646485_TV03034_JUL2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 03 0462A
- Downstream MH
- 03 0462
- Dir. of Survey
- Downstream
- Length Surveyed
- 221.7 ft.
- Total Length
- 221.7 ft.
- Structural Index
- 3
- Structural Quick
- 3H00
- Structural Rating
- 129
- O&M Index
- 2
- O&M Quick
- 2H00
- O&M Rating
- 88
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 217
Observation photos (2)

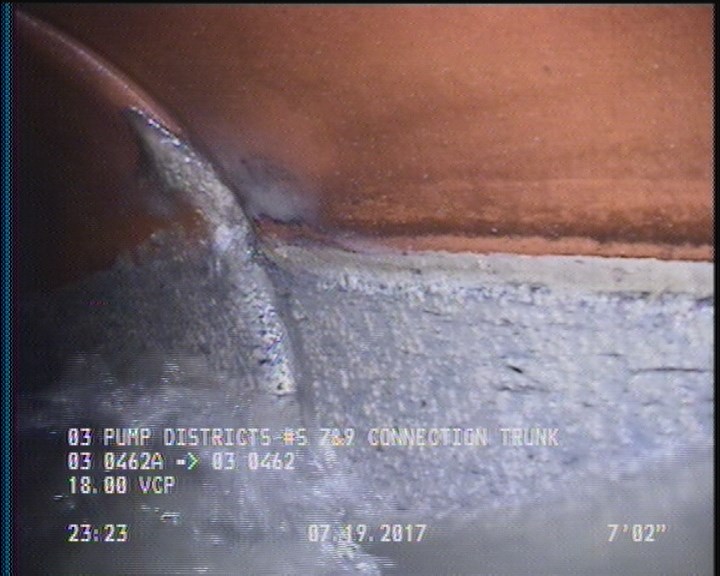

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

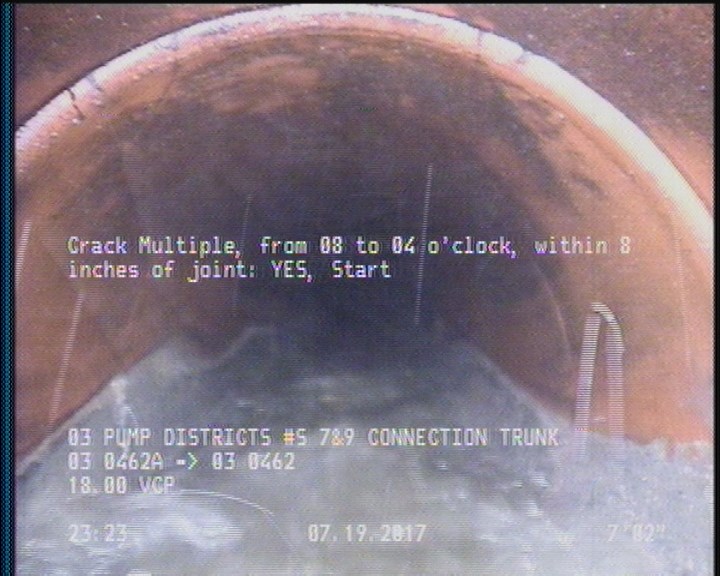

7.2 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 0 | AMH | 03 0462A |
| 221.7 | CM | — |
| 221.7 | AMH | 03 0462 |
| 7.2 | CM | — |
| 0 | MWL | — |
| 221.7 | DAGS | — |
| 0 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 2 | DAGS | — |
Properties (6)
- additional_info
- SC345446
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-07-19T23:21:04-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
