Wastewater/Activity/PacpInspection/1.0Jul 17, 2017, 10:00 AM
H 0743_H 0742_07072017_031114.mp4
- Date
- 07/17/2017
- W/O
- 640626
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00941
- PipeID
- P11152
- Time
- 3:00 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K4553
- Sewer Name
- H JOINT OUTFALL H - UNIT 9B
- City
- WEST COVINA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 24
- Purpose
- Routine Assessment
- Project
- WO_640626_TV22077_JUN2017
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 25 in.
- Width
- 25 in.
- Upstream MH
- H 0743
- Downstream MH
- H 0742
- Dir. of Survey
- Downstream
- Length Surveyed
- 558.6 ft.
- Total Length
- 558.6 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 4
Observation photos (2)

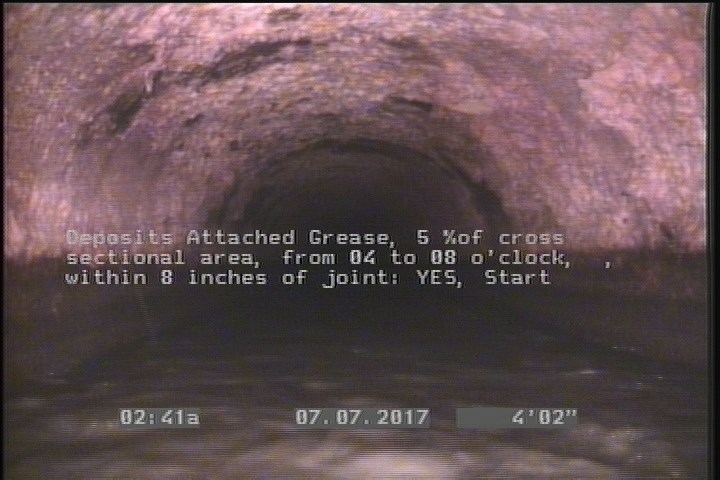

3.6 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

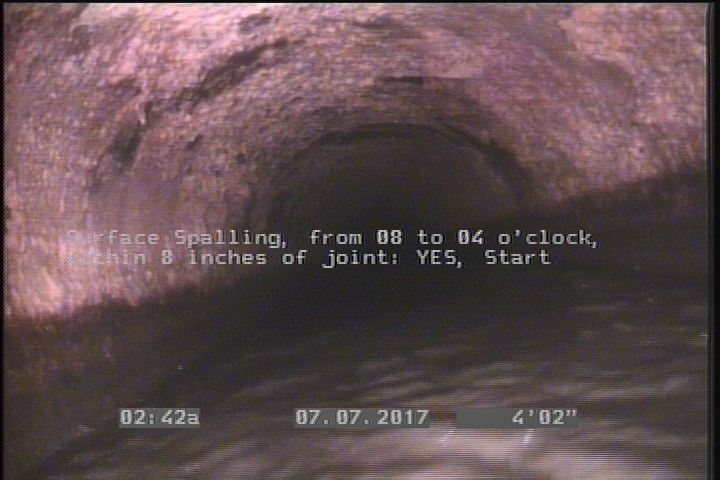

4.2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 558.6 | SSS | — |
| 558.6 | DAGS | — |
| 0 | AMH | H 0743 |
| 0 | MWL | — |
| 3.6 | DAGS | — |
| 0 | MWM | — |
| 4.2 | SSS | — |
| 558.6 | MSA | MISC. |
| 4.2 | MGO | MAG COATING |
Properties (6)
- additional_info
- SC345391
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-07-17T03:00:43-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
