Wastewater/Activity/PacpInspection/1.0Jun 21, 2016, 06:52 AM
05 1466_05 1465_062016_235303.mpg
- Date
- 06/20/2016
- W/O
- 574372
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00438
- PipeID
- P06688
- Time
- 11:52 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3401
- Sewer Name
- 05 EL NIDO TRUNK
- City
- TORRANCE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 23
- Purpose
- Routine Assessment
- Project
- WO_574372_TV05300_JUNE2016
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Upstream MH
- 05 1466
- Downstream MH
- 05 1465
- Dir. of Survey
- Downstream
- Length Surveyed
- 316.8 ft.
- Total Length
- 316.8 ft.
- Structural Index
- 3
- Structural Quick
- 3K2K
- Structural Rating
- 308
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 308
Observation photos (2)

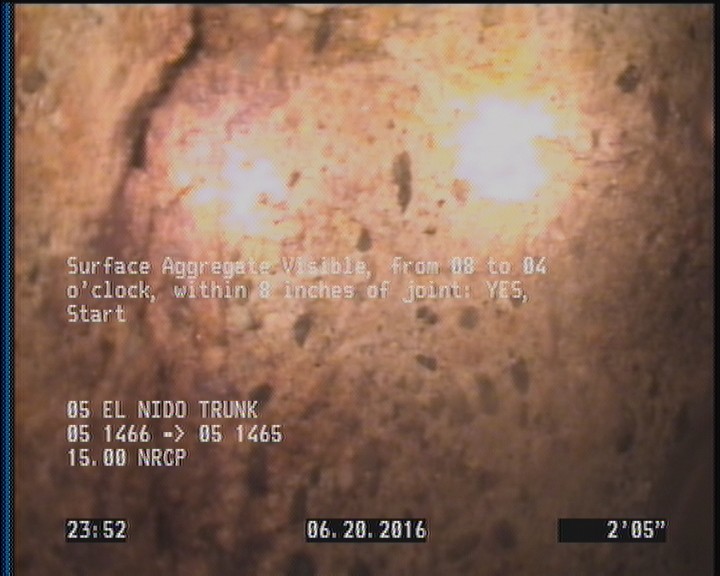

2.4 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

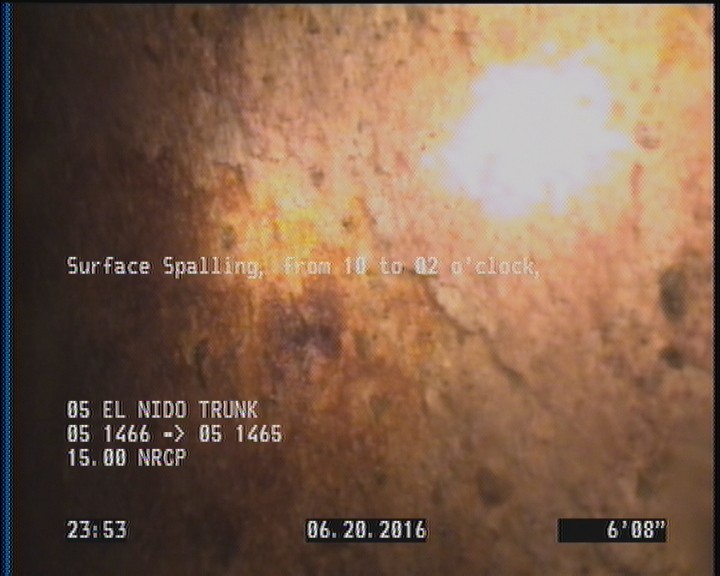

6.7 ft. - Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: YES, Start
Observations (19)
| Distance | Code | Observation |
|---|---|---|
| 316.8 | AMH | 05 1465 |
| 314 | SSS | — |
| 316.8 | MGO | CONNECTION AT THE MH 3 O'CLOCK |
| 271.1 | TFC | — |
| 21.5 | TFC | — |
| 6.7 | SSS | — |
| 0 | MGO | CONNECTION AT THE MH 3 O'CLOCK |
| 0 | AMH | 05 1466 |
| 316.1 | MGO | CONNECTION AT THE MH 9 O'CLOCK |
| 314 | SAV | — |
| 120.3 | TFC | — |
| 316.1 | MGO | CONNECTION AT THE MH 7 O'CLOCK |
| 167.7 | TFC | — |
| 60.4 | TFC | — |
| 0 | MWL | — |
| 159.1 | TFC | — |
| 218.8 | TFC | — |
| 0 | MWM | — |
| 2.4 | SAV | — |
Properties (6)
- additional_info
- SC305851
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2016-06-20T23:52:43-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
