Wastewater/Activity/PacpInspection/1.0Aug 19, 2017, 05:25 PM
05 1111_05 1173_8192017_103331.mp4
- Date
- 08/19/2017
- W/O
- 0651798
- Weather
- Dry
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z00549
- PipeID
- P06411
- Time
- 10:25 AM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7497
- Sewer Name
- 05 135TH STREET TRUNK
- City
- GARDENA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 14
- Purpose
- Routine Assessment
- Project
- 20170819DF_135TH_ST_TRUNK
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Upstream MH
- 05 1173
- Downstream MH
- 05 1111
- Dir. of Survey
- Upstream
- Length Surveyed
- 196.5 ft.
- Total Length
- 196.5 ft.
- Structural Index
- 4
- Structural Quick
- 5121
- Structural Rating
- 7
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 7
Observation photos (6)

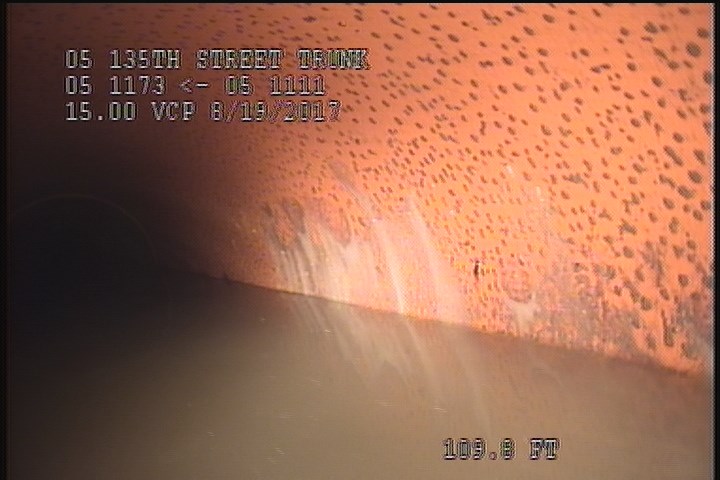

2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

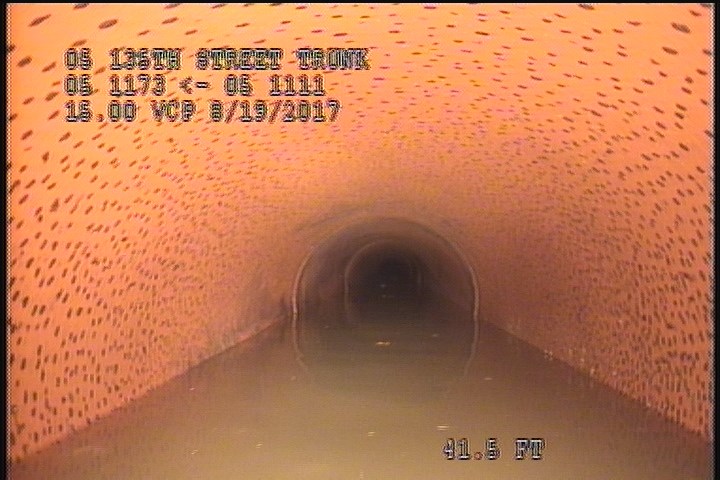

41.5 ft. - General Photograph

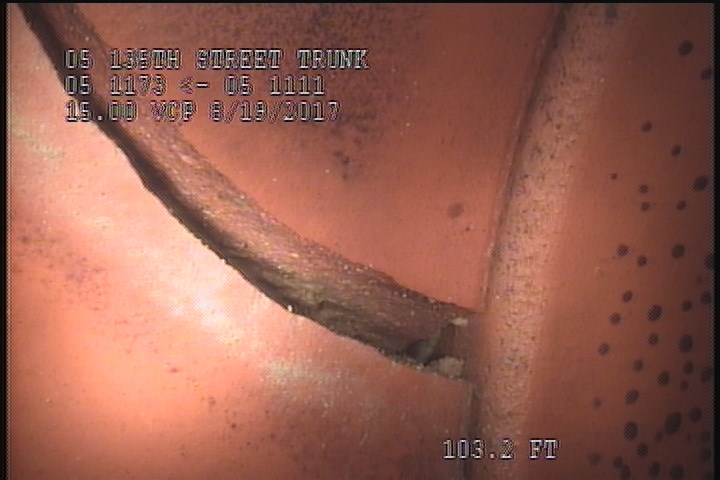

103.2 ft. - General Photograph - BROKEN

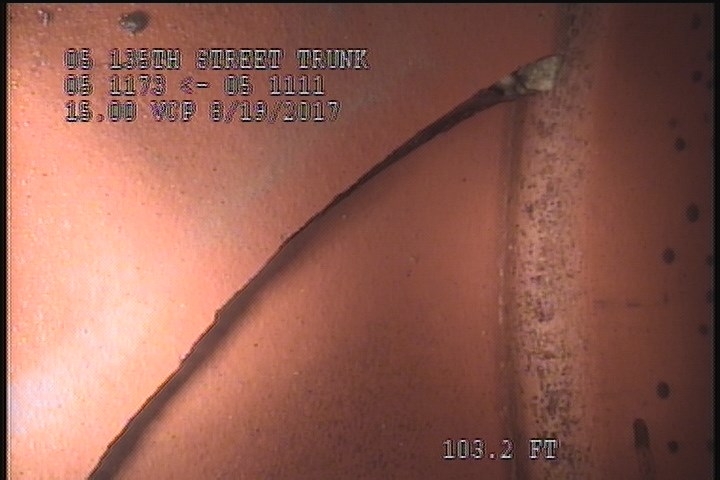

103.2 ft. - Broken, from 08 to 12 o'clock, within 8 inches of joint: YES

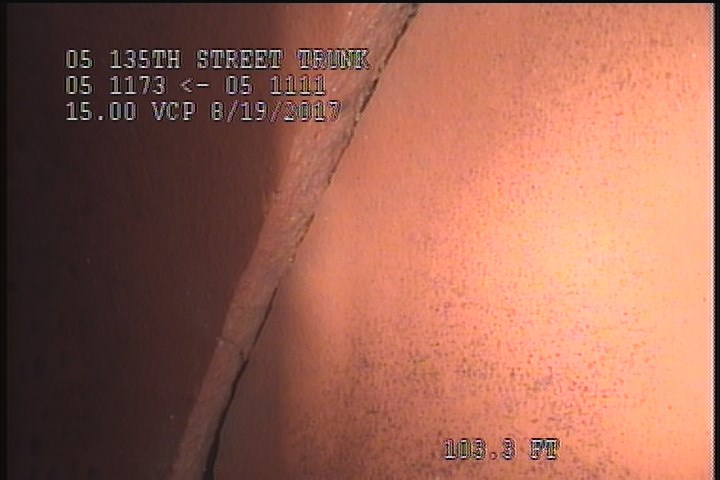

103.3 ft. - General Photograph - BROKEN

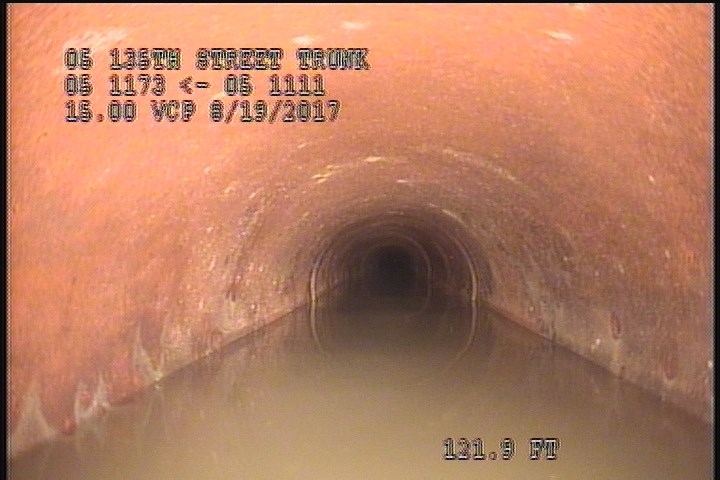

121.9 ft. - General Photograph - SPALLING
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 196.5 | AMH | 10:50 AM |
| 0 | AMH | 10:29 AM |
| 2 | MGO | Conn. @ Mh, 9 O' Clock. UNKNOWN |
| 2 | SSS | — |
| 121.9 | MGP | SPALLING |
| 41.5 | MGP | — |
| 103.2 | MGP | BROKEN |
| 103.2 | B | — |
| 2 | MGO | STOPLOG DOWN @ 9 O'CLOCK |
| 0.1 | MWL | — |
| 0.1 | MWM | — |
| 103.3 | MGP | BROKEN |
| 194.9 | SSS | — |
Properties (5)
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2017-08-19T10:25:35-07:00
- documentation
- FRANKLIN, BRAR
- is_lateral_inspection
- false
