Wastewater/Activity/PacpInspection/1.0May 25, 2017, 11:07 PM
01 0266B_01 0266A_09062017_034139.mp4
- Date
- 05/25/2017
- W/O
- 640730
- Weather
- Dry
- Operator/Surveyor
- M MARTINEZ
- Sewer ID
- Z00218
- PipeID
- P01314
- Time
- 4:07 PM
- Certificate
- U-115-06022794
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3968
- Sewer Name
- 01 SOUTH PARK AVENUE TRUNK
- City
- LOS ANGELES
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- WO_640730_TV01204_JUN2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 01 0266B
- Downstream MH
- 01 0266A
- Dir. of Survey
- Downstream
- Length Surveyed
- 148.6 ft.
- Total Length
- 148.6 ft.
- Structural Index
- 4
- Structural Quick
- 4E00
- Structural Rating
- 116
- O&M Index
- 2
- O&M Quick
- 4132
- O&M Rating
- 68
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 184
Observation photos (4)

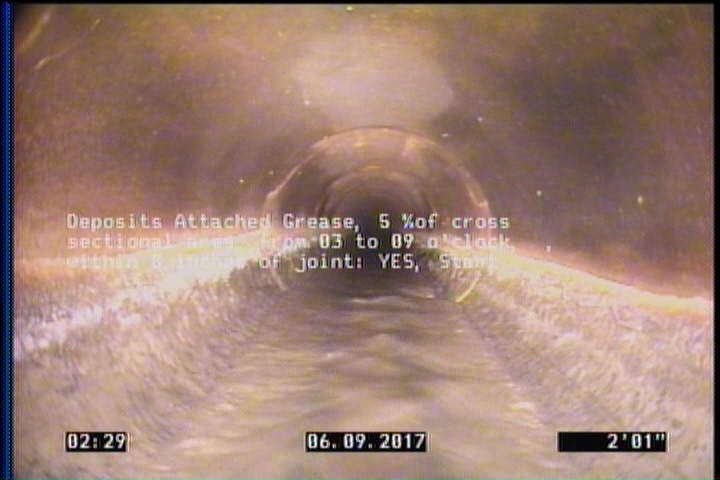

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

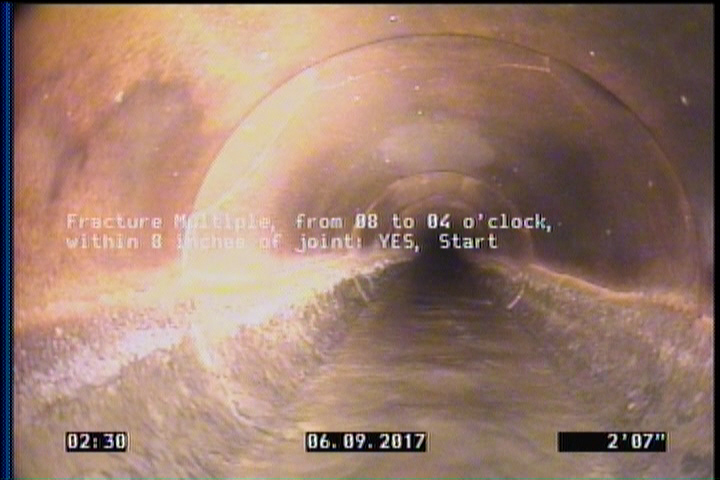

2.1 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

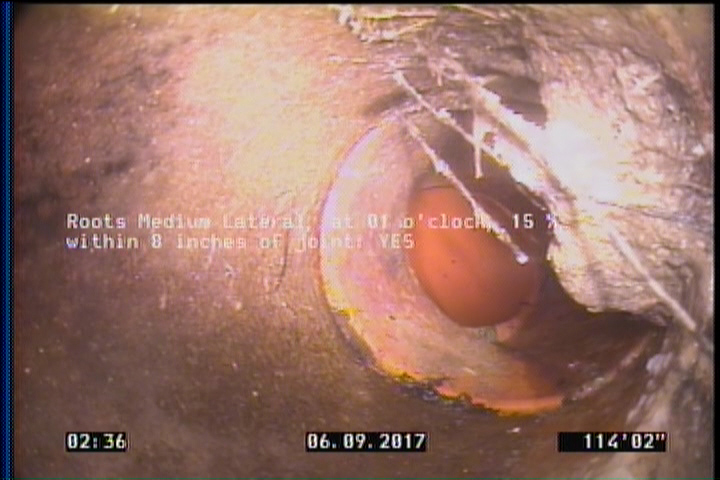

114 ft. - Roots Medium Lateral, at 01 o'clock, 15 %, within 8 inches of joint: YES

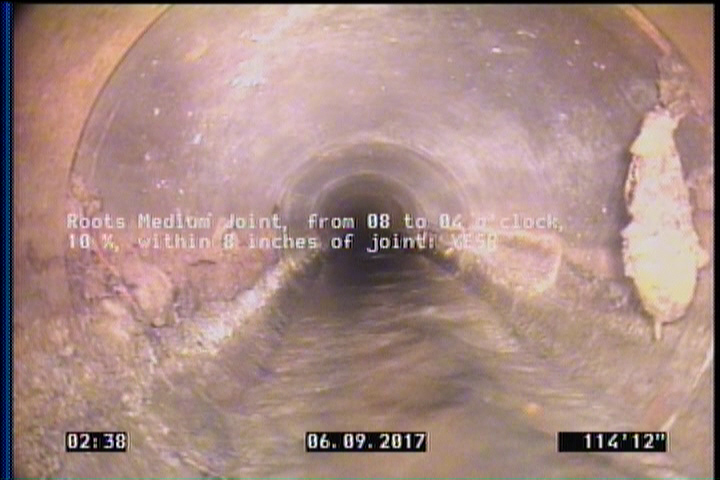

114.1 ft. - Roots Medium Joint, from 08 to 04 o'clock, 10 %, within 8 inches of joint: YESR
Observations (15)
| Distance | Code | Observation |
|---|---|---|
| 148.6 | AMH | 01 0266A |
| 2 | DAGS | — |
| 86.1 | TFC | — |
| 146 | DAGS | — |
| 148 | MGO | CONNECTION AT THE MH 9 O'CLOCK |
| 114 | TF | — |
| 25 | TFC | — |
| 0 | AMH | 01 0266B |
| 146 | FM | — |
| 114 | RML | — |
| 114.1 | RMJ | — |
| 2.1 | FM | — |
| 0 | MWM | — |
| 125.1 | TF | — |
| 0 | MWL | — |
Properties (4)
- additional_info
- SC342121
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2017-05-25T16:07:40-07:00
