Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 28, 2017, 06:34 AM

  • 19 0214_19 0213_27062017_233505.mp4

Date
06/27/2017
W/O
640867
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00718
PipeID
P15183
Time
11:34 PM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4628
Sewer Name
19 ARTESIA-CERRITOS TRUNK
City
ARTESIA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 19
Page No.
04
Purpose
Routine Assessment
Project
WO_640867_TV19059_JUN2017
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
19 0214
Downstream MH
19 0213
Dir. of Survey
Downstream
Length Surveyed
265.5 ft.
Total Length
265.5 ft.
Structural Index
3
Structural Quick
3I00
Structural Rating
150
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
3
Overall Quick
—
Overall Rating
152
Pipe schematic from manhole 19 0214 to 19 0213
MH: 19 0214MH: 19 0213downstream0 ft. MWM - Water Mark, 15 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT MH 9 ACTIVE0 ft. AMH - Upstream Manhole, Survey Begins - 19 02140 ft. MWL - Water Level, 10 %of cross sectional area8.5 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES11.7 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start17.5 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: NO, 6"77.2 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 6"88.5 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 6"106.7 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 6"129.7 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: NO, 6"138.4 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 07 to 05 o'clock, , within 8 inches of joint: YES140.6 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"184 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 6"194.2 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 6"229.6 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: NO, 6"259 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish265.5 ft. AMH - Downstream Manhole, Survey Ends - 19 0213265.5 ft. MGO - General Observation - CONNECTION AT MH 3 ACTIVE265.5 ft. MGO - General Observation - CONNECTION AT MH 9 ACTIVE

Observation photos (3)

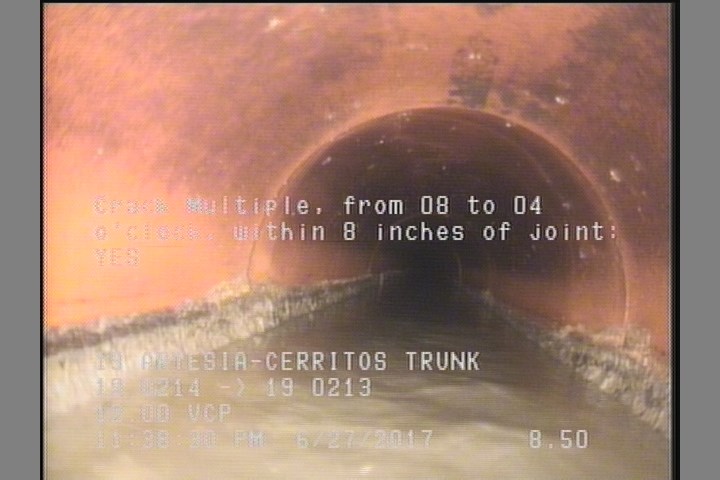

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    8.5 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

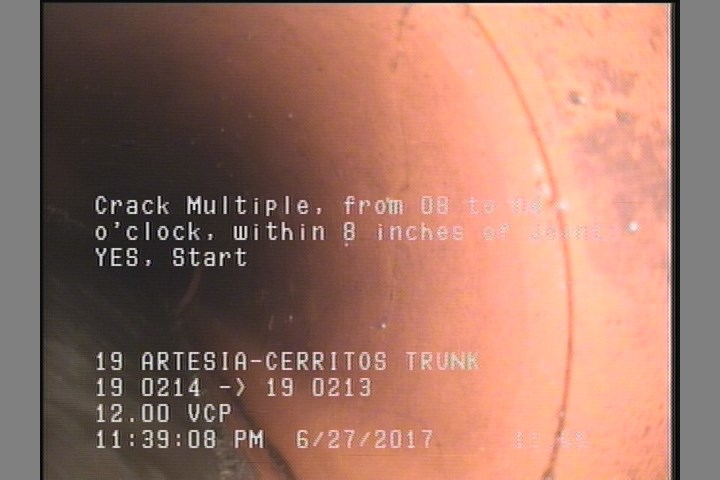

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    11.7 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

  • Deposits Attached Grease, 5 %of cross sectional area, from 07 to 05 o'clock, , within 8 inches of joint: YES

    138.4 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 07 to 05 o'clock, , within 8 inches of joint: YES

All inspections of P15183Work order 640867

Observations (20)

DistanceCodeObservation
265.5AMH19 0213
265.5MGOCONNECTION AT MH 3 ACTIVE
106.7TF—
140.6TF—
259CM—
0MWM—
8.5CM—
138.4DAGS—
0MGOCONNECTION AT MH 9 ACTIVE
194.2TF—
129.7TFC—
0AMH19 0214
77.2TF—
11.7CM—
229.6TFC—
88.5TF—
184TF—
17.5TFC—
265.5MGOCONNECTION AT MH 9 ACTIVE
0MWL—

Properties (4)

additional_info
SC345345
custom_field_two
3
customer
LACSD
datetime
2017-06-27T23:34:59-07:00
