Wastewater/Activity/PacpInspection/1.0Jun 26, 2017, 08:12 AM

  • 01 0554_01 0553_26062017_023514.mp4

Date
06/26/2017
W/O
640684
Weather
Dry
Operator/Surveyor
M.MARTINEZ
Sewer ID
Z00206
PipeID
P01043
Time
1:12 AM
Certificate
U-115-06022794
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3975-SC342136
Sewer Name
01 CROCKETT BOULEVARD-GLEN AVENUE TRUNK
City
LOS ANGELES
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
07
Purpose
Routine Assessment
Project
WO_640684_TV01243_JUN2017
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
10 in.
Width
10 in.
Upstream MH
01 0554
Downstream MH
01 0553
Dir. of Survey
Downstream
Length Surveyed
288.4 ft.
Total Length
288.4 ft.
Structural Index
4
Structural Quick
4J00
Structural Rating
228
O&M Index
2
O&M Quick
412J
O&M Rating
118
Overall Index
3
Overall Quick
—
Overall Rating
346
Pipe schematic from manhole 01 0554 to 01 0553
MH: 01 0554MH: 01 0553downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 01 05540 ft. MWM - Water Mark, 50 %of cross sectional area3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start3 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES5.2 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start60.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"76.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6"120.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"143.6 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6"187.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6"214.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"249.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"252.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6"286.2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish286.2 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish288.1 ft. MGO - General Observation - CONNECTION AT THE MH 9 O'CLOCK288.4 ft. AMH - Downstream Manhole, Survey Ends - 01 0553

Observation photos (3)

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    3 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

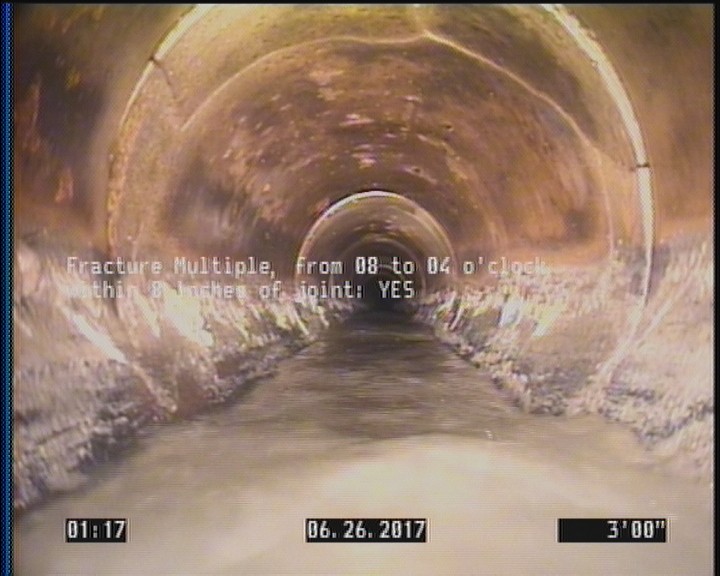

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    3 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

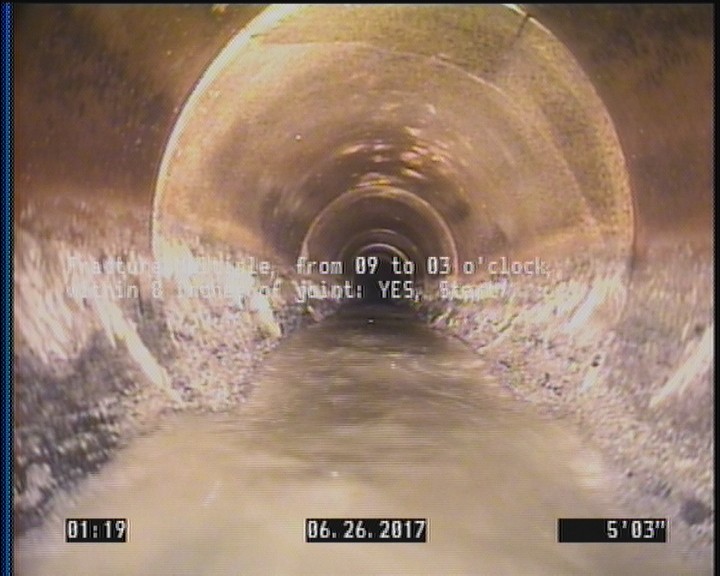

  • Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    5.2 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

All inspections of P01043Work order 640684

Observations (18)

DistanceCodeObservation
60.3TFC—
3DAGS—
120.7TFC—
288.1MGOCONNECTION AT THE MH 9 O'CLOCK
5.2FM—
0MWL—
0AMH01 0554
286.2DAGS—
143.6TF—
249.3TFC—
76.9TFC—
187.6TFC—
3FM—
288.4AMH01 0553
214.1TFC—
252.2TFC—
0MWM—
286.2FM—

Properties (3)

custom_field_two
3
customer
LACSD
datetime
2017-06-26T01:12:58-07:00
