Wastewater/Activity/PacpInspection/1.0Jun 28, 2017, 07:01 AM
01 0541A_01 0541_29062017_012048.mp4
- Date
- 06/28/2017
- W/O
- 640684
- Weather
- Dry
- Operator/Surveyor
- M.MARTINEZ
- Sewer ID
- Z00206
- PipeID
- P01030
- Time
- 12:01 AM
- Certificate
- U-115-06022794
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3976-SC342139
- Sewer Name
- 01 CROCKETT BOULEVARD-GLEN AVENUE TRUNK
- City
- LOS ANGELES
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 10
- Purpose
- Routine Assessment
- Project
- WO_640684_TV01243_JUN2017
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 01 0541A
- Downstream MH
- 01 0541
- Dir. of Survey
- Downstream
- Length Surveyed
- 328 ft.
- Total Length
- 328 ft.
- Structural Index
- 3
- Structural Quick
- 3L00
- Structural Rating
- 195
- O&M Index
- 2
- O&M Quick
- 2L00
- O&M Rating
- 128
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 323
Observation photos (3)

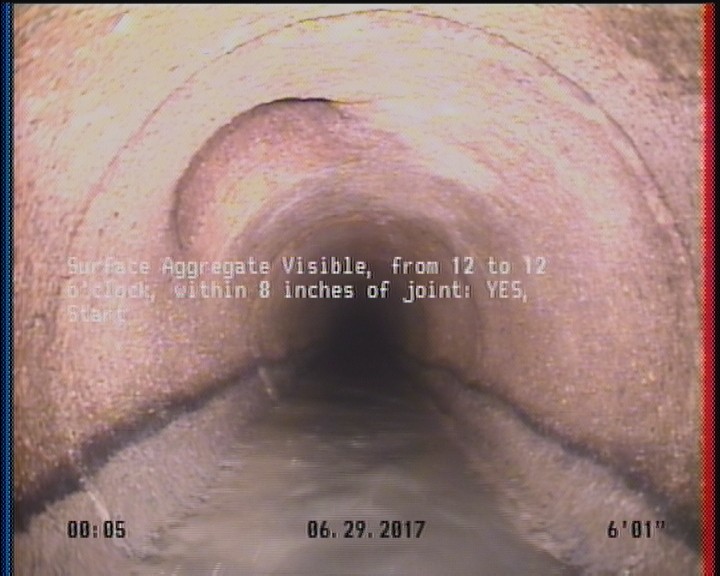

6.1 ft. - Surface Aggregate Visible, from 12 to 12 o'clock, within 8 inches of joint: YES, Start

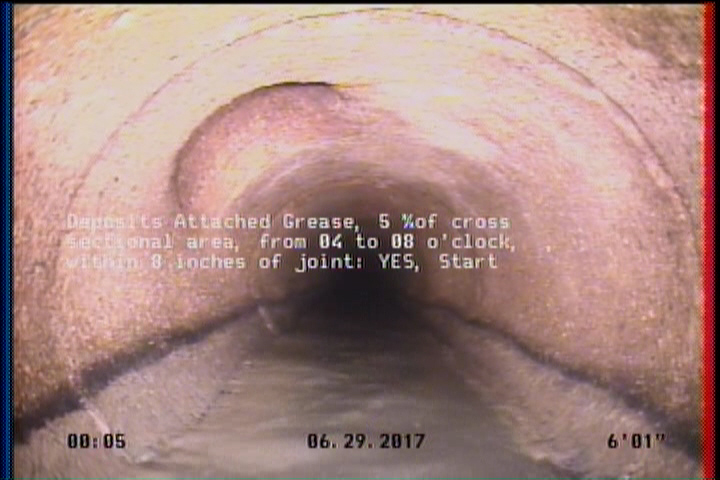

6.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

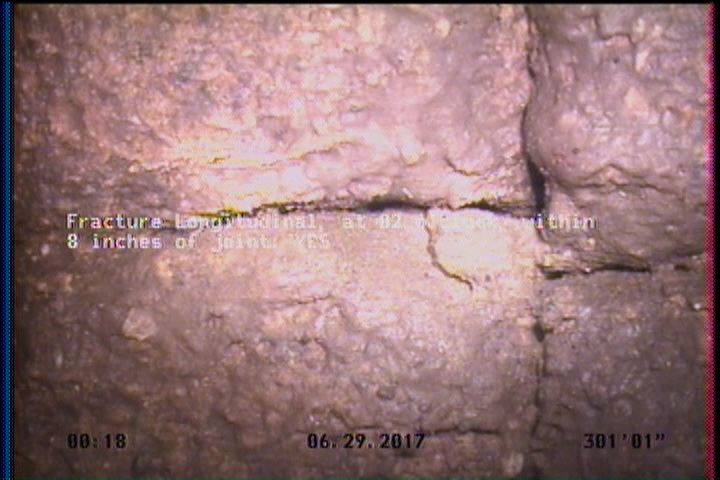

301.1 ft. - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES
Observations (21)
| Distance | Code | Observation |
|---|---|---|
| 299.9 | TF | — |
| 8.3 | TF | — |
| 272.5 | TF | — |
| 99.9 | TF | — |
| 325.4 | SAV | — |
| 325.4 | DAGS | — |
| 328 | AMH | 01 0541 |
| 49.1 | TF | — |
| 6.1 | SAV | — |
| 0 | MWL | — |
| 225.1 | TF | — |
| 164.2 | TF | — |
| 255.2 | TF | — |
| 0 | MWM | — |
| 6.1 | DAGS | — |
| 0 | AMH | 01 0541A |
| 166.8 | TF | — |
| 210.1 | TF | — |
| 112.6 | TF | — |
| 69.4 | TF | — |
| 301.1 | FL | — |
Properties (3)
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-06-28T00:01:19-07:00
