Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 29, 2017, 05:56 AM

  • 01 0325A_01 0545_29062017_000149.mp4

Date
06/28/2017
W/O
640684
Weather
Dry
Operator/Surveyor
M.MARTINEZ
Sewer ID
Z00206
PipeID
P01034
Time
10:56 PM
Certificate
U-115-06022794
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3976-SC342139
Sewer Name
01 CROCKETT BOULEVARD-GLEN AVENUE TRUNK
City
LOS ANGELES
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
07
Purpose
Routine Assessment
Project
WO_640684_TV01243_JUN2017
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
01 0325A
Downstream MH
01 0545
Dir. of Survey
Downstream
Length Surveyed
11.9 ft.
Total Length
11.9 ft.
Structural Index
3
Structural Quick
4132
Structural Rating
10
O&M Index
3
O&M Quick
4122
O&M Rating
8
Overall Index
3
Overall Quick
—
Overall Rating
18
Pipe schematic from manhole 01 0325A to 01 0545
MH: 01 0325AMH: 01 0545downstream0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 01 325A0.5 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES1.9 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start3.6 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start9.1 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish9.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish11.9 ft. AMH - Downstream Manhole, Survey Ends - 01 0545

Observation photos (3)

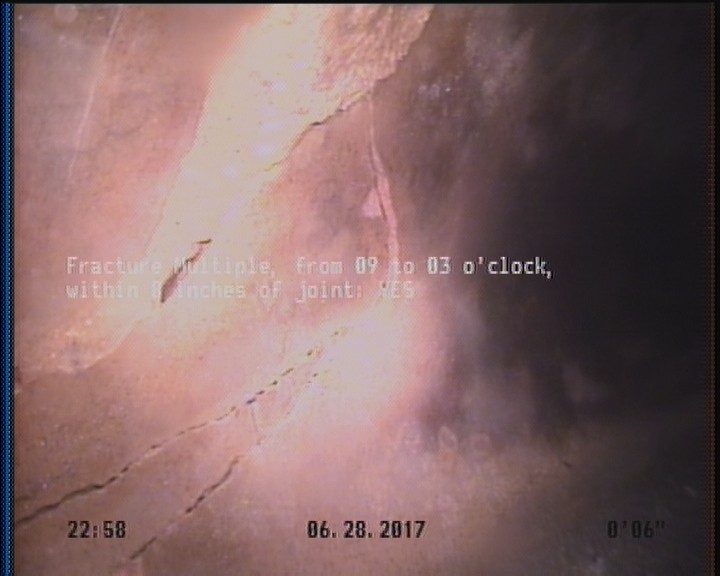

  • Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

    0.5 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

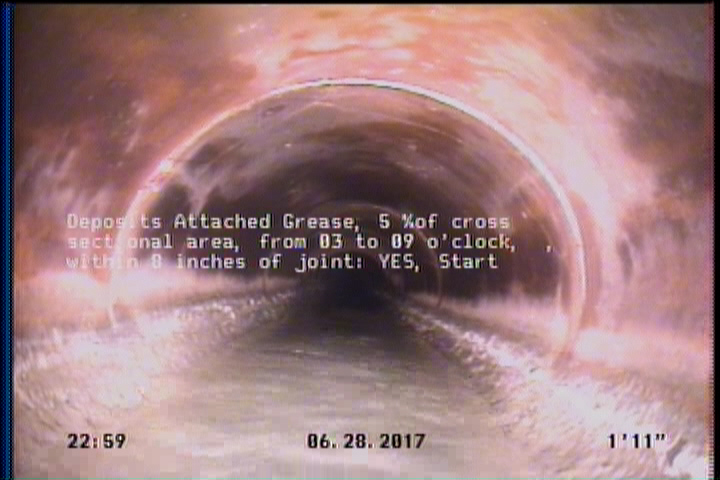

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    1.9 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

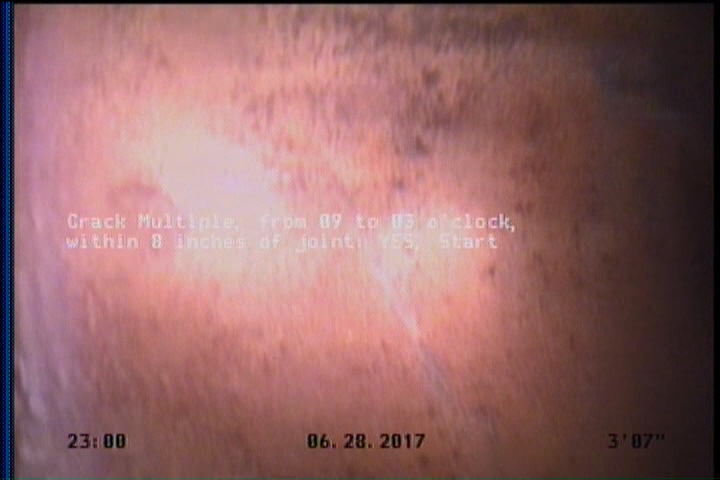

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    3.6 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

All inspections of P01034Work order 640684

Observations (9)

DistanceCodeObservation
9.1CM—
1.9DAGS—
3.6CM—
11.9AMH01 0545
0MWL—
9.1DAGS—
0MWM—
0.5FM—
0AMH01 325A

Properties (3)

custom_field_two
3
customer
LACSD
datetime
2017-06-28T22:56:41-07:00
