Wastewater/Activity/PacpInspection/1.0Jul 14, 2017, 08:05 AM
H 0746_H 0745_14072017_011347.mp4
- Date
- 07/14/2017
- W/O
- 640683
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00941
- PipeID
- P11155
- Time
- 1:05 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K4555
- Sewer Name
- H JOINT OUTFALL H - UNIT 9B
- City
- WEST COVINA
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 30
- Purpose
- Routine Assessment
- Project
- WO_640683_TV18106_JUN2017
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 27 in.
- Width
- 27 in.
- Upstream MH
- H 0745
- Downstream MH
- H 0746
- Dir. of Survey
- Upstream
- Length Surveyed
- 49.3 ft.
- Total Length
- 49.3 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (1)

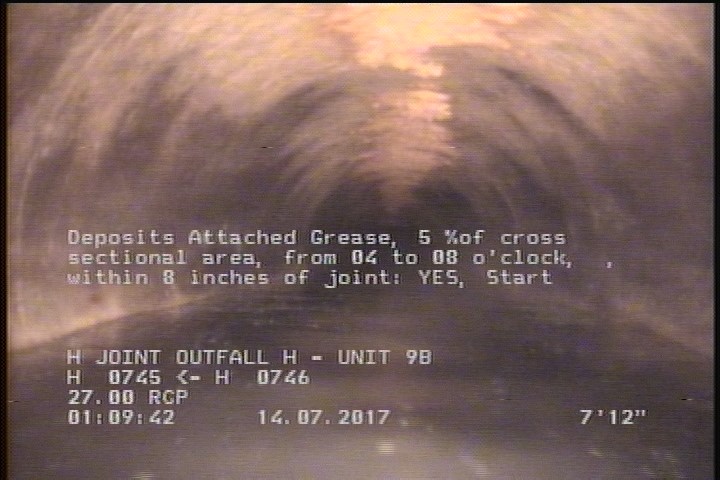

8 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 0 | MWL | — |
| 49.3 | AMH | H 0746 |
| 49.3 | DAGS | — |
| 20.6 | MGO | MAG COATING |
| 0 | AMH | H 0745 |
| 8 | DAGS | — |
Properties (4)
- additional_info
- SC345395
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-07-14T01:05:24-07:00
