Wastewater/Activity/PacpInspection/1.0Jul 13, 2017, 10:59 AM
18 1116_18 1115 _13072017_040034.mp4
- Date
- 07/13/2017
- W/O
- 640649
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00711
- PipeID
- P14967
- Time
- 3:59 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4646
- Sewer Name
- 18 STAGE ROAD JUNCTION TRUNK
- City
- SANTA FE SPRINGS
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 31
- Purpose
- Routine Assessment
- Project
- WO_640649_TV18058_JUN2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 18 1116
- Downstream MH
- 18 1115
- Dir. of Survey
- Downstream
- Length Surveyed
- 159.6 ft.
- Total Length
- 159.7 ft.
- Structural Index
- 3
- Structural Quick
- 3D21
- Structural Rating
- 77
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 77
Observation photos (3)

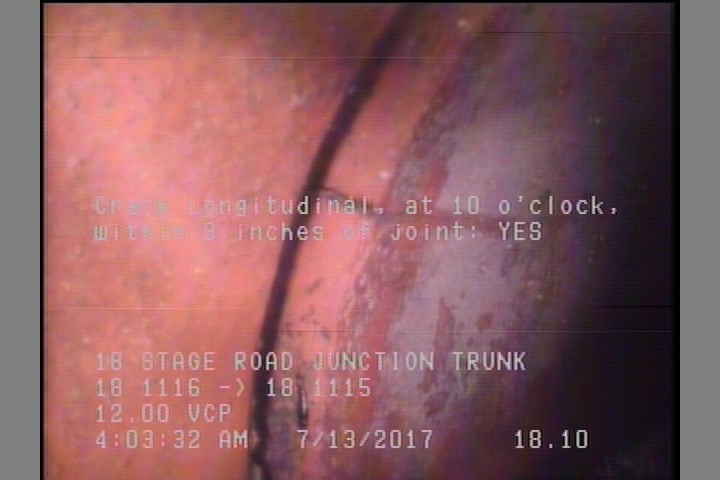

18.1 ft. - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES

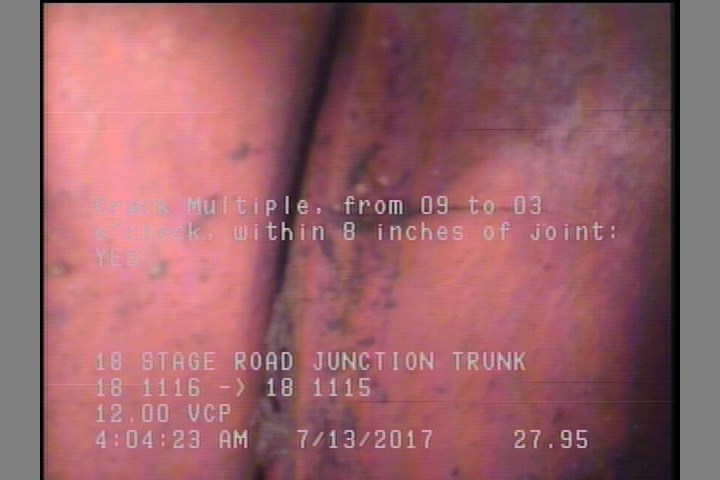

28 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

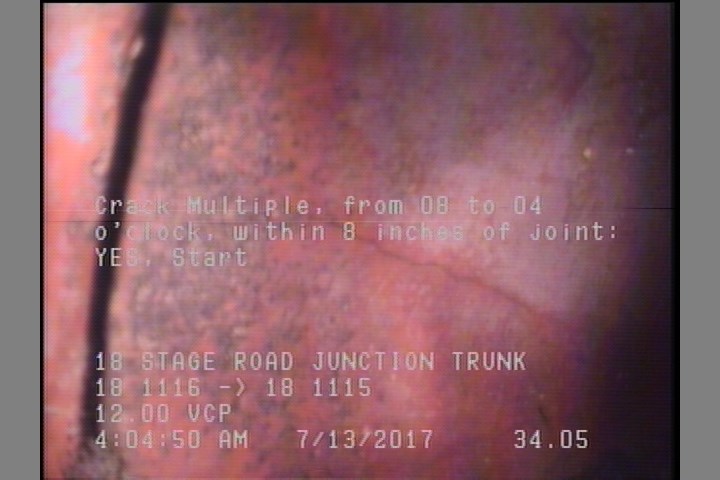

34.1 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 34.1 | CM | — |
| 18.1 | CL | — |
| 0 | AMH | 18 1116 |
| 0 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 25.8 | TFC | — |
| 159.7 | AMH | 18 1115 |
| 155.1 | CM | — |
| 0 | MWM | — |
| 28 | CM | — |
| 75.3 | TFC | — |
| 0 | MWL | — |
| 124.3 | TFC | — |
Properties (4)
- additional_info
- SC345506
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-07-13T03:59:48-07:00
