Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 13, 2017, 11:09 AM

  • 18 1115_18 1114 _13072017_040951.mp4

Date
07/13/2017
W/O
640649
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00711
PipeID
P14966
Time
4:09 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4646
Sewer Name
18 STAGE ROAD JUNCTION TRUNK
City
SANTA FE SPRINGS
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
31
Purpose
Routine Assessment
Project
WO_640649_TV18058_JUN2017
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
18 1115
Downstream MH
18 1114
Dir. of Survey
Downstream
Length Surveyed
327 ft.
Total Length
327.1 ft.
Structural Index
3
Structural Quick
3K22
Structural Rating
178
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
178
Pipe schematic from manhole 18 1115 to 18 1114
MH: 18 1115MH: 18 1114downstream0 ft. MWM - Water Mark, 35 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 18 11150 ft. MWL - Water Level, 5 %of cross sectional area4 ft. CL - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES16.3 ft. CL - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES17.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"37.8 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start70 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"114.2 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"119 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"128.9 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 6"171.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"203.8 ft. TB - Tap Break-In, at 12 o'clock, -, within 8 inches of joint: NO, 6"221 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"270.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"320.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"327.1 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish327.1 ft. AMH - Downstream Manhole, Survey Ends - 18 1114

Observation photos (5)

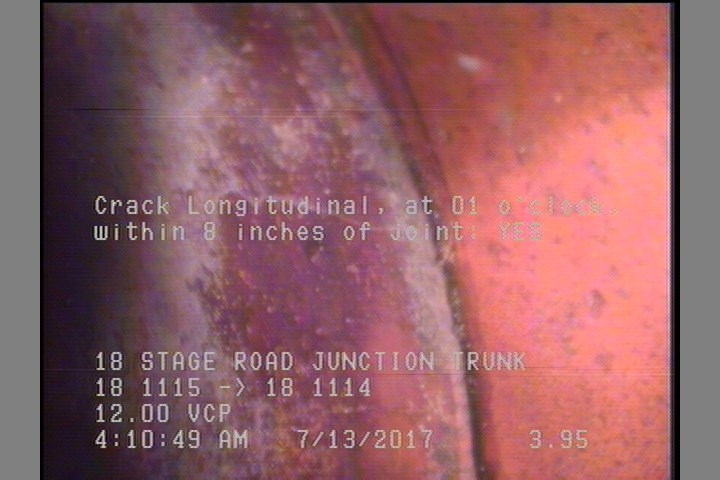

  • Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES

    4 ft. - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES

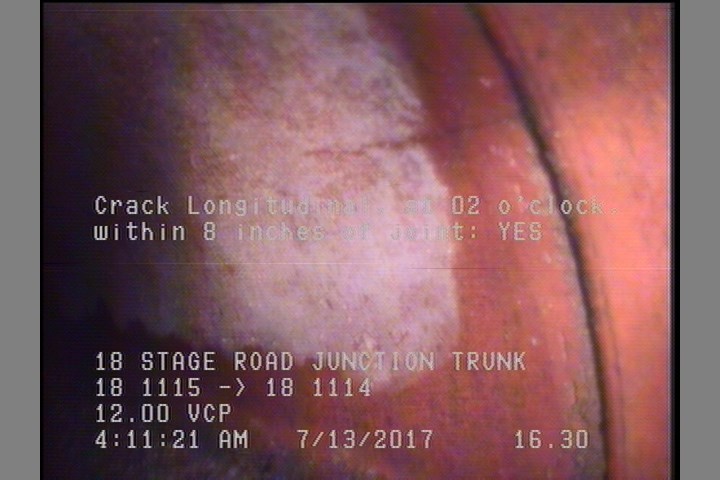

  • Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

    16.3 ft. - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

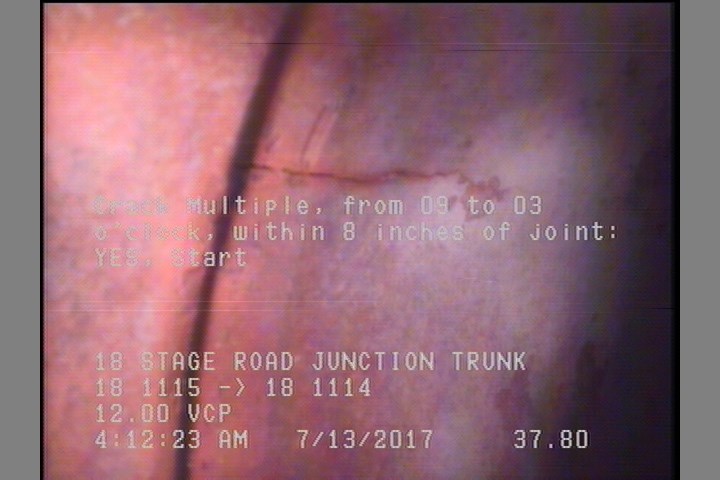

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    37.8 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

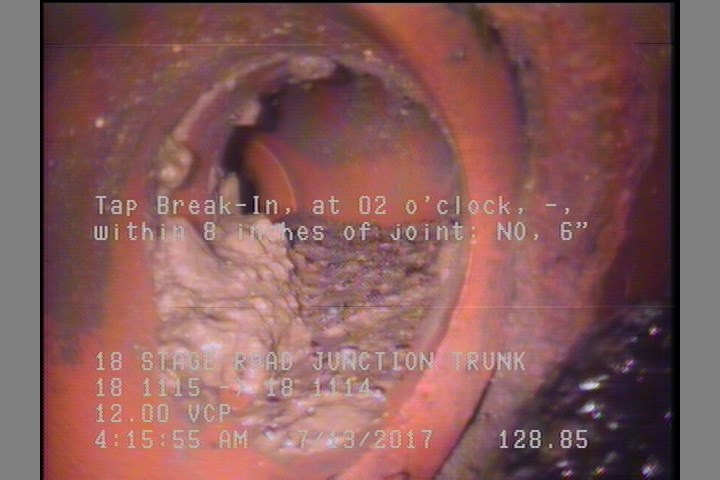

  • Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 6"

    128.9 ft. - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 6"

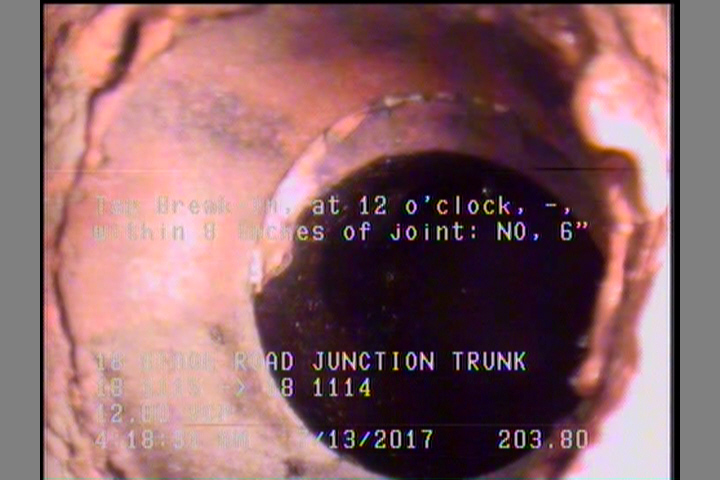

  • Tap Break-In, at 12 o'clock, -, within 8 inches of joint: NO, 6"

    203.8 ft. - Tap Break-In, at 12 o'clock, -, within 8 inches of joint: NO, 6"

All inspections of P14966Work order 640649

Observations (18)

DistanceCodeObservation
128.9TB—
37.8CM—
0MWM—
4CL—
0AMH18 1115
171.7TFC—
16.3CL—
70TFC—
0MWL—
327.1CM—
17.9TFC—
270.6TFC—
320.3TFC—
327.1AMH18 1114
119TFC—
221TFC—
203.8TB—
114.2TF—

Properties (4)

additional_info
SC345506
custom_field_two
3
customer
LACSD
datetime
2017-07-13T04:09:18-07:00
