Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 12, 2017, 10:48 AM

  • 18 1118_18 1117 _12072017_034814.mp4

Date
07/12/2017
W/O
640649
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00711
PipeID
P14970
Time
3:48 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4643
Sewer Name
18 STAGE ROAD JUNCTION TRUNK
City
SANTA FE SPRINGS
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
31
Purpose
Routine Assessment
Project
WO_640649_TV18058_JUN2017
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
18 1118
Downstream MH
18 1117
Dir. of Survey
Downstream
Length Surveyed
301 ft.
Total Length
301 ft.
Structural Index
3
Structural Quick
3I21
Structural Rating
153
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
153
Pipe schematic from manhole 18 1118 to 18 1117
MH: 18 1118MH: 18 1117downstream0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 18 11180 ft. MWM - Water Mark, 15 %of cross sectional area8.4 ft. CM - Crack Multiple, from 01 to 04 o'clock, within 8 inches of joint: YES10.5 ft. CL - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES14.8 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: NO, 6"16.2 ft. CM - Crack Multiple, from 07 to 10 o'clock, within 8 inches of joint: YES53.7 ft. CC - Crack Circumferential, from 01 to 04 o'clock, within 8 inches of joint: YES59.4 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES62.5 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start64.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"113.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"166.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"219.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"269 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"297.1 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish301 ft. AMH - Downstream Manhole, Survey Ends - 18 1117

Observation photos (6)

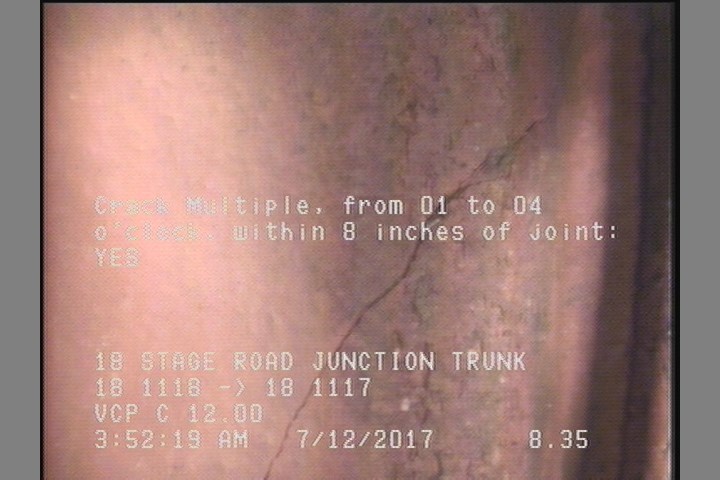

  • Crack Multiple, from 01 to 04 o'clock, within 8 inches of joint: YES

    8.4 ft. - Crack Multiple, from 01 to 04 o'clock, within 8 inches of joint: YES

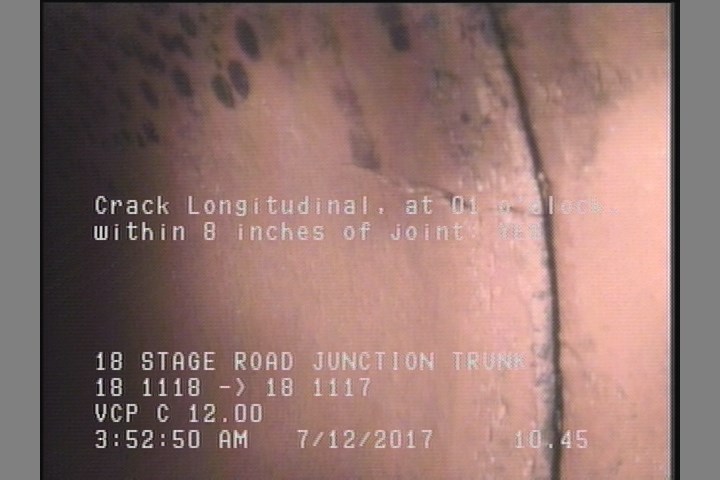

  • Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES

    10.5 ft. - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES

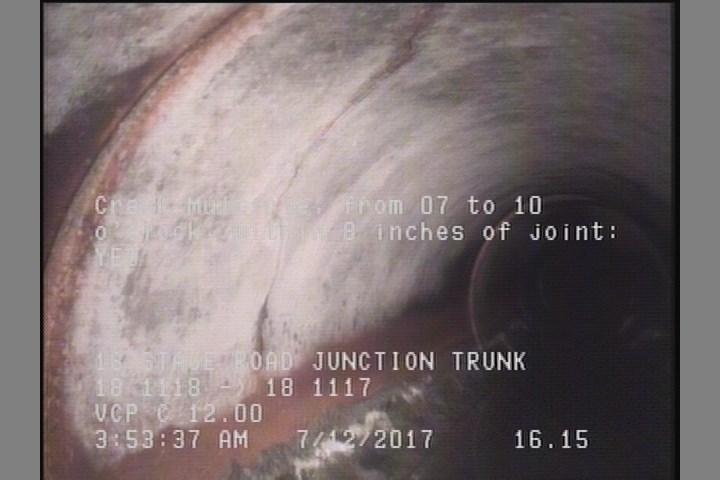

  • Crack Multiple, from 07 to 10 o'clock, within 8 inches of joint: YES

    16.2 ft. - Crack Multiple, from 07 to 10 o'clock, within 8 inches of joint: YES

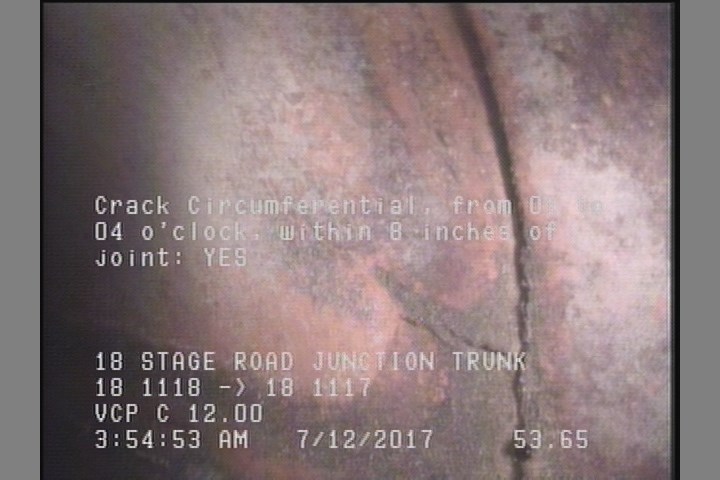

  • Crack Circumferential, from 01 to 04 o'clock, within 8 inches of joint: YES

    53.7 ft. - Crack Circumferential, from 01 to 04 o'clock, within 8 inches of joint: YES

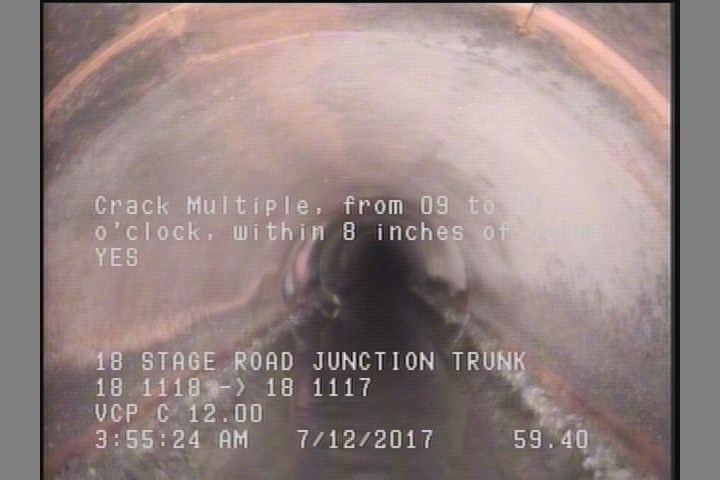

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

    59.4 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

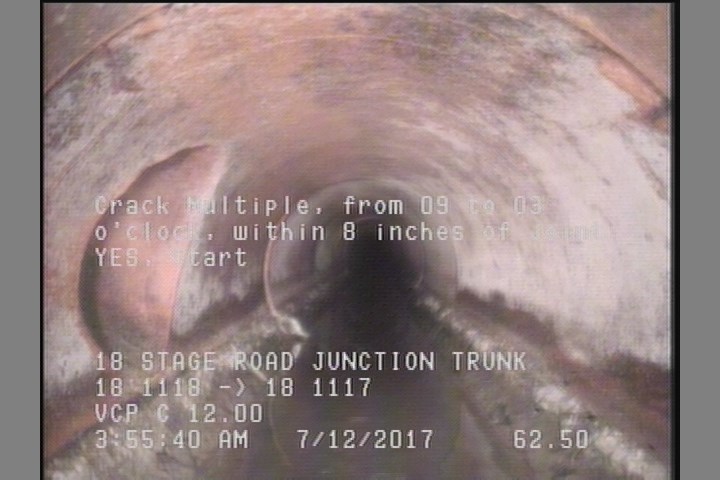

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    62.5 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

All inspections of P14970Work order 640649

Observations (17)

DistanceCodeObservation
0MWL—
10.5CL—
113.8TFC—
53.7CC—
301AMH18 1117
16.2CM—
166.7TFC—
269TFC—
297.1CM—
0AMH18 1118
59.4CM—
14.8TFC—
8.4CM—
0MWM—
219.3TFC—
62.5CM—
64.5TFC—

Properties (4)

additional_info
SC345503
custom_field_two
3
customer
LACSD
datetime
2017-07-12T03:48:10-07:00
