Wastewater/Activity/PacpInspection/1.0May 11, 2016, 05:24 AM
02 1391_02 1390_20160510_223553.mp4
- Date
- 05/10/2016
- W/O
- 568667
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00349
- PipeID
- P02962
- Time
- 10:24 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3370
- Sewer Name
- 02 DISTRICT #2 INTERCEPTOR TRUNK
- City
- BELL GARDENS
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 26
- Purpose
- Routine Assessment
- Project
- RFIR_WO_568667_TV02220_MAY2016
- Sewer Type
- GRAVITY
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 57 in.
- Upstream MH
- 02 1391
- Downstream MH
- 02 1390
- Dir. of Survey
- Downstream
- Length Surveyed
- 271 ft.
- Total Length
- 271 ft.
- Structural Index
- 4
- Structural Quick
- 5131
- Structural Rating
- 8
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 8
Observation photos (2)

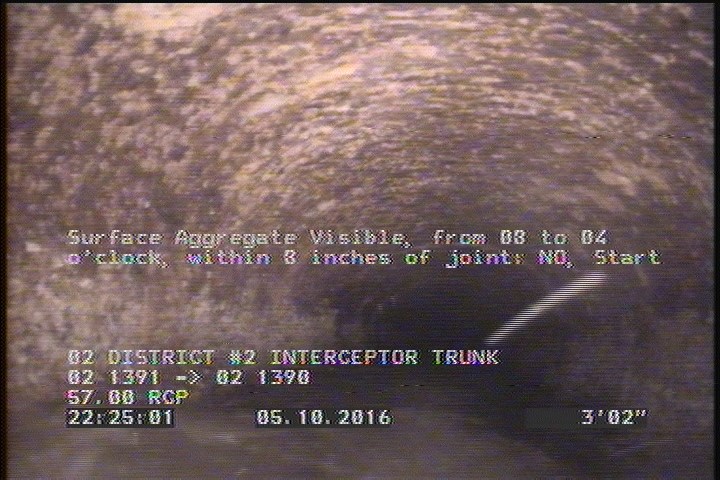

3.2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

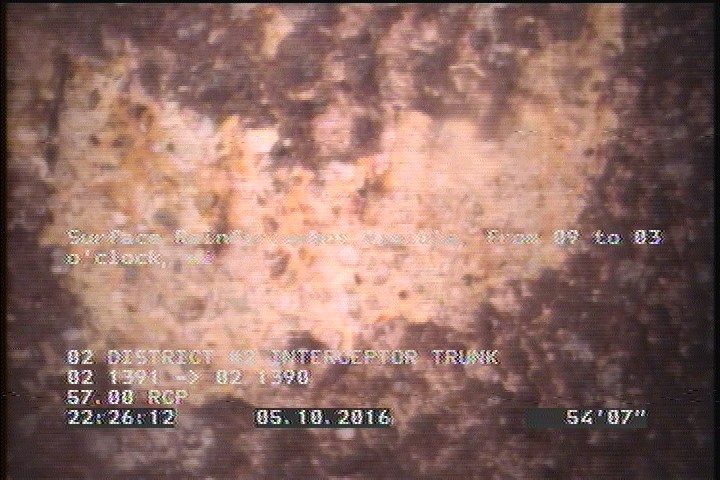

54.5 ft. - Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: NO, Start
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 3.2 | SAV | — |
| 0 | MWM | — |
| 270.8 | SAV | — |
| 0 | MWL | — |
| 54.5 | SRV | — |
| 271 | AMH | 02 1390 ZOOMED IN |
| 270.9 | SRV | — |
| 0 | AMH | 02 1391 |
Properties (4)
- additional_info
- SC300368
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2016-05-10T22:24:49-07:00
