Wastewater/Activity/PacpInspection/1.0May 18, 2016, 09:12 AM
03 0330_03 0329_18052016_021304.mp4
- Date
- 05/18/2016
- W/O
- 573469
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00359
- PipeID
- P04904
- Time
- 2:12 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3353
- Sewer Name
- 03 ANAHEIM STREET TRUNK
- City
- LONG BEACH
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 24
- Purpose
- Routine Assessment
- Project
- WO_573469_JUNE2016
- Sewer Type
- GRAVITY
- Material
- Reinforced Concrete Pipe
- Lining Method
- Segmented Panel
- Shape
- Circular
- Height
- 30 in.
- Upstream MH
- 03 0330
- Downstream MH
- 03 0329
- Dir. of Survey
- Downstream
- Length Surveyed
- 276.3 ft.
- Total Length
- 276.3 ft.
- Structural Index
- 3
- Structural Quick
- 3J2J
- Structural Rating
- 275
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 275
Observation photos (2)

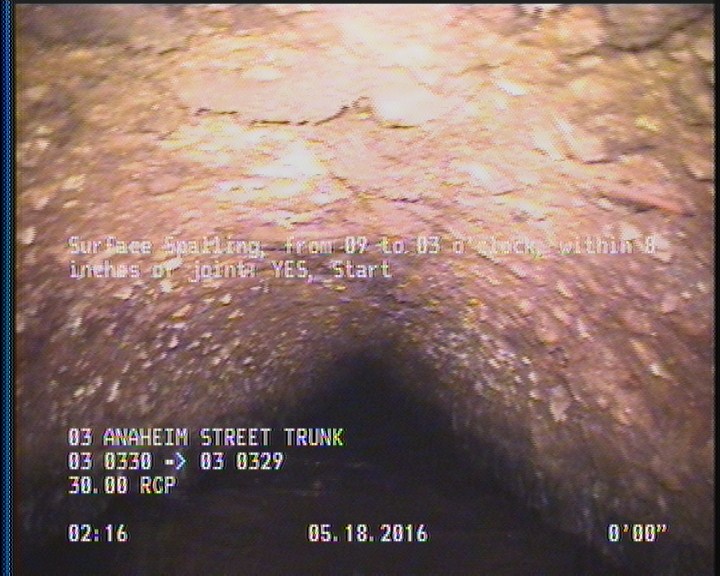

2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

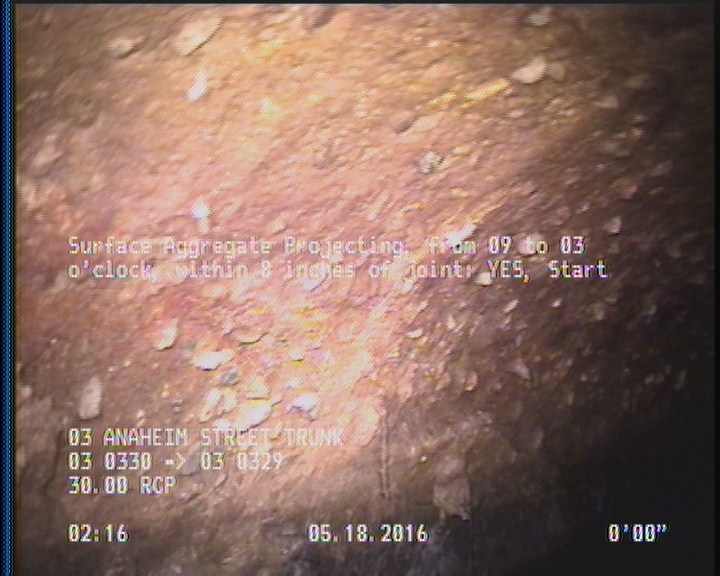

2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 276.3 | SSS | — |
| 2 | SSS | — |
| 276.3 | AMH | 03 0329 |
| 276.3 | SAP | — |
| 2 | SAP | — |
| 0 | AMH | 03 0330 |
Properties (4)
- additional_info
- SC305633
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-05-18T02:12:46-07:00
