Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 22, 2017, 10:11 AM

  • 14 0162B_14 0162A_09222017_031301.mp4

Date
09/22/2017
W/O
657965
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00584
PipeID
P18200
Time
3:11 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4732
Sewer Name
14 WEST SIDE TRUNK
City
LANCASTER
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 14
Page No.
17
Purpose
Routine Assessment
Project
WO_657965_TV14035_SEP2017
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
14 0162B
Downstream MH
14 0162A
Dir. of Survey
Downstream
Length Surveyed
240.6 ft.
Total Length
240.6 ft.
Structural Index
3
Structural Quick
3H00
Structural Rating
141
O&M Index
2
O&M Quick
412H
O&M Rating
98
Overall Index
3
Overall Quick
—
Overall Rating
239
Pipe schematic from manhole 14 0162B to 14 0162A
MH: 14 0162BMH: 14 0162Adownstream0 ft. MWL - Water Level, 25 %of cross sectional area0 ft. MGO - General Observation - MAG COATING 75%0 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 14 0162B0 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK2 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start39 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"41.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"87.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"90.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"138.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"141.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"189.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"192.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"237.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"238.7 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish238.7 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish239 ft. MGO - General Observation - PEELING/FLAKING/SPALLING THROUGHOUT THE REACH240.6 ft. AMH - Downstream Manhole, Survey Ends - 14 0162A240.6 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK

Observation photos (2)

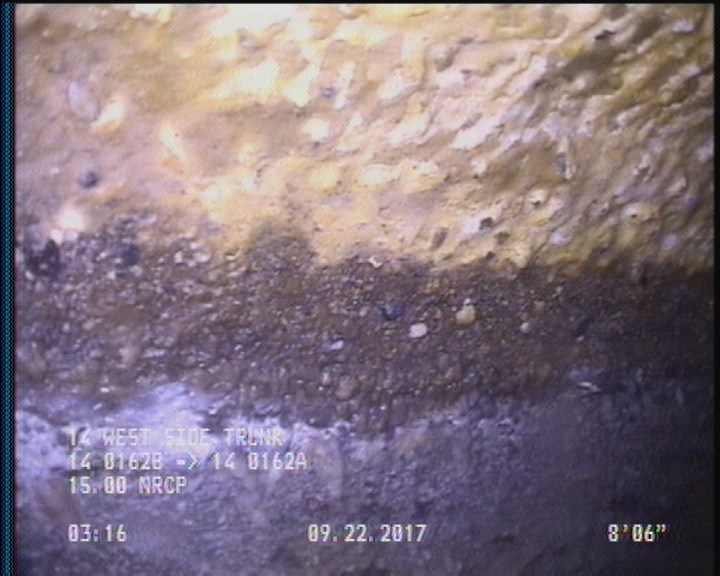

  • Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

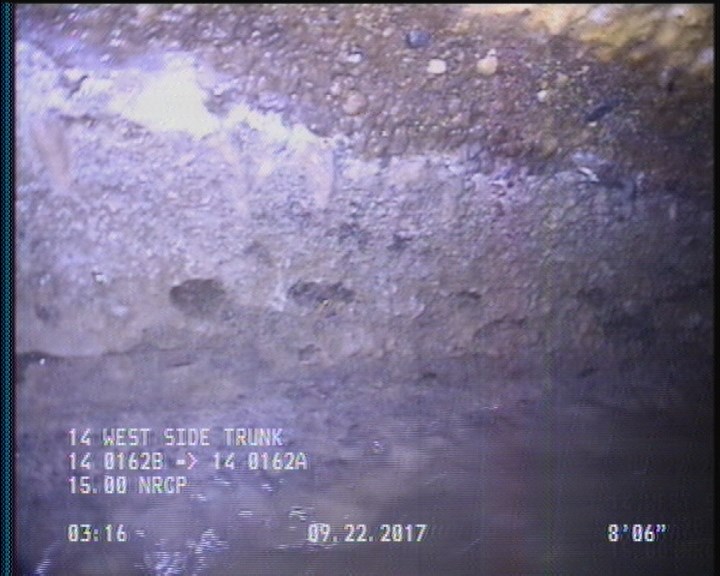

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

All inspections of P18200Work order 657965

Observations (21)

DistanceCodeObservation
237.8TFC—
141.4TFC—
2SAP—
2DAGS—
41.9TFC—
0MWL—
90.3TFC—
138.3TFC—
39TFC—
0MGOMAG COATING 75%
189.4TFC—
0MWM—
240.6AMH14 0162A
240.6MGOACTIVE CONNECTION AT MH 9 O'CLOCK
239MGOPEELING/FLAKING/SPALLING THROUGHOUT THE REACH
87.4TFC—
192.3TFC—
238.7SAP—
0AMH14 0162B
0MGOACTIVE CONNECTION AT MH 9 O'CLOCK
238.7DAGS—

Properties (4)

additional_info
SC345745
custom_field_two
2
customer
LACSD
datetime
2017-09-22T03:11:16-07:00
