Wastewater/Activity/PacpInspection/1.0Sep 29, 2017, 07:51 AM
- Date
- 09/29/2017
- W/O
- 663060
- Weather
- Dry
- Operator/Surveyor
- R.VARGAS
- Sewer ID
- Z00659
- PipeID
- P13595
- Time
- 12:51 AM
- Certificate
- U-209-211
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4281
- Sewer Name
- 16 LAMANDA PARK TRUNK
- City
- PASADENA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 15
- Purpose
- Routine Assessment
- Project
- WO_630370_TV05315_AUG2017
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 27 in.
- Width
- 27 in.
- Upstream MH
- 16 0543
- Downstream MH
- 16 0544
- Dir. of Survey
- Upstream
- Length Surveyed
- 190.6 ft.
- Total Length
- 190.6 ft.
- Structural Index
- 3
- Structural Quick
- 3200
- Structural Rating
- 6
- O&M Index
- 2
- O&M Quick
- 2F11
- O&M Rating
- 75
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 81
Observation photos (2)
2.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

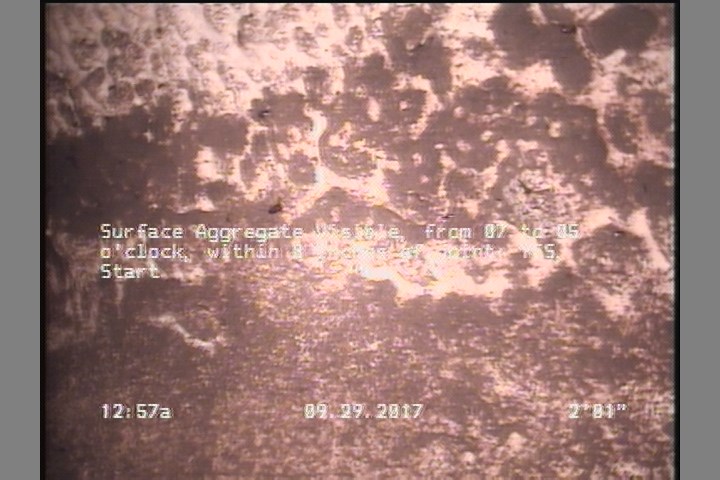

2.1 ft. - Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: YES, Start
Observations (20)
| Distance | Code | Observation |
|---|---|---|
| 178.6 | TFC | — |
| 0 | AMH | 16 0543 |
| 33.5 | TBA | — |
| 188.2 | DAGS | — |
| 190.6 | MGO | CONNECTION AT MH 9 O'CLOCK ACTIVE |
| 190.6 | AMH | 16 0544 |
| 190.6 | VC | — |
| 0 | MGO | ACTIVE CONN. INSIDE THE MH. @ 06 O'CLOCK |
| 2.1 | MGO | MAG COAT START |
| 138.8 | TFC | — |
| 90.6 | TFC | — |
| 0 | MWL | — |
| 85.2 | TFC | — |
| 2.1 | DAGS | — |
| 144.1 | TFC | — |
| 184.6 | TFC | — |
| 188.2 | MGO | MAG COAT FINISH |
| 2.1 | SAV | — |
| 0 | MWM | — |
| 188.2 | SAV | — |
Properties (4)
- additional_info
- SC352127
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-09-29T00:51:23-07:00
