Wastewater/Activity/PacpInspection/1.0Oct 3, 2017, 07:15 AM
- Date
- 10/03/2017
- W/O
- 658492
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00113
- PipeID
- P09420
- Time
- 12:15 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4900
- Sewer Name
- B JOINT OUTFALL B - UNIT 9A
- City
- COMPTON
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- WO_630370_TV05315_AUG2017
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 78 in.
- Width
- 78 in.
- Upstream MH
- B 0959
- Downstream MH
- B 0039
- Dir. of Survey
- Downstream
- Length Surveyed
- 29.7 ft.
- Total Length
- 29.7 ft.
- Structural Index
- 4
- Structural Quick
- 5535
- Structural Rating
- 40
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 40
Observation photos (2)

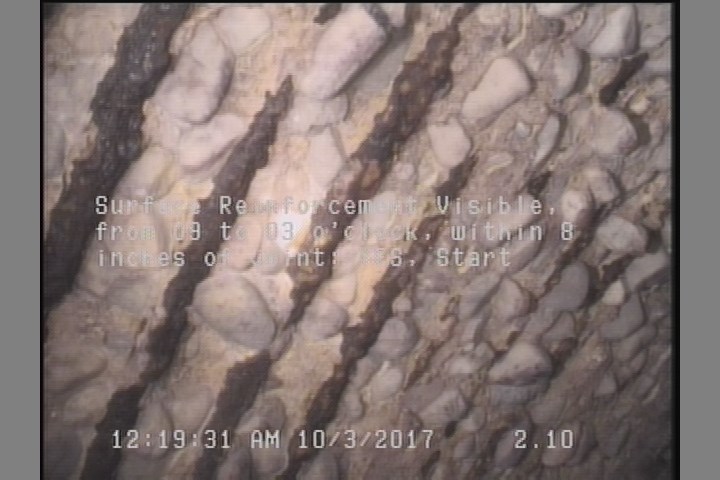

2.1 ft. - Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

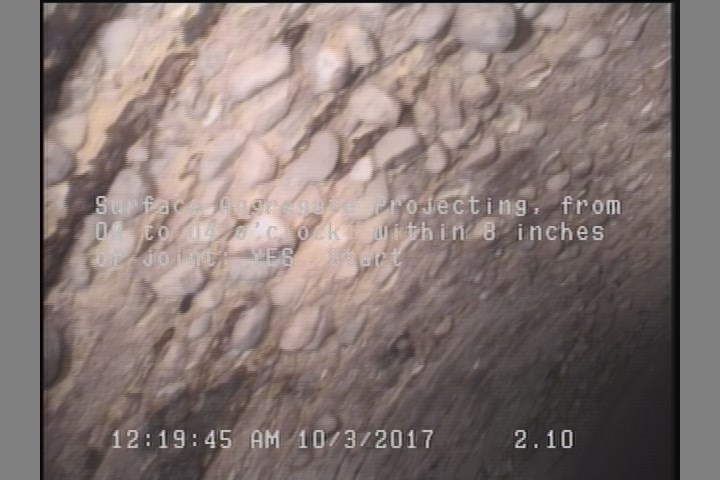

2.1 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 28 | MGO | SPALLING THROUGHOUT THE REACH |
| 0 | MWM | — |
| 0 | AMH | B 0959 |
| 24.8 | SRV | — |
| 2.1 | SRV | — |
| 2.1 | SAP | — |
| 29.7 | AMH | B 0039 |
| 0 | MWL | — |
| 24.8 | SAP | — |
Properties (4)
- additional_info
- SC346160
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2017-10-03T00:15:03-07:00
