Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 22, 2017, 09:44 AM
Date
09/22/2017
W/O
658119
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00375
PipeID
P24189
Time
2:44 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4887
Sewer Name
29 ORANGE AVENUE SEWER
City
SIGNAL HILL
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
01
Purpose
Routine Assessment
Project
WO_630370_TV05315_AUG2017
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Width
8 in.
Upstream MH
29 0280
Downstream MH
29 0279
Dir. of Survey
Downstream
Length Surveyed
330.5 ft.
Total Length
330.5 ft.
Structural Index
1
Structural Quick
2112
Structural Rating
4
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
1
Overall Quick
—
Overall Rating
4
Pipe schematic from manhole 29 0280 to 29 0279
MH: 29 0280MH: 29 0279downstream0 ft. MWM - Water Mark, 10 %of cross sectional area0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK0 ft. AMH - Upstream Manhole, Survey Begins - 29 027953.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"56.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"104.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"106.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"154.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"157.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"159.1 ft. CL - Crack Longitudinal, at 04 o'clock, within 8 inches of joint: YES163.5 ft. CC - Crack Circumferential, from 12 to 05 o'clock, within 8 inches of joint: YES178.5 ft. CC - Crack Circumferential, from 01 to 05 o'clock, within 8 inches of joint: YES205.6 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"213.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"261.2 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: NO, 6"309.8 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"312.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"329 ft. MGO - General Observation - SPALLING THROUGHOUT THE REACH330.5 ft. AMH - Downstream Manhole, Survey Ends - 29 0279

Observation photos (3)

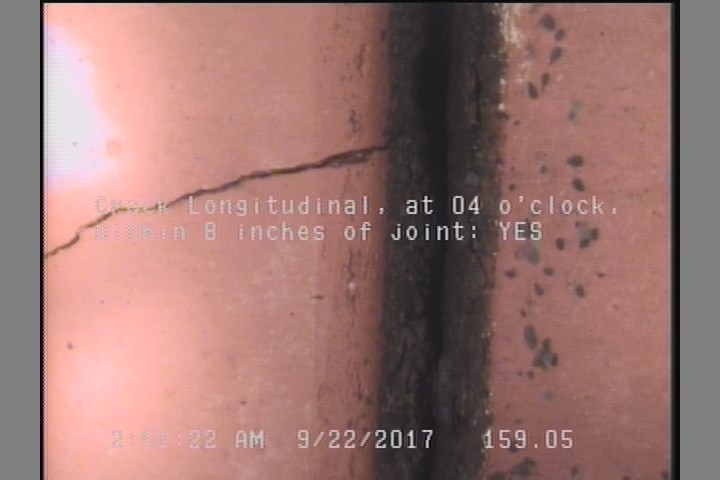

  • Crack Longitudinal, at 04 o'clock, within 8 inches of joint: YES

    159.1 ft. - Crack Longitudinal, at 04 o'clock, within 8 inches of joint: YES

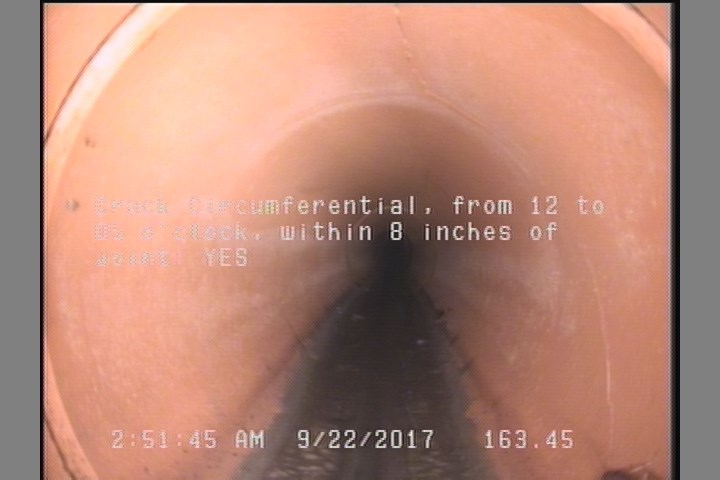

  • Crack Circumferential, from 12 to 05 o'clock, within 8 inches of joint: YES

    163.5 ft. - Crack Circumferential, from 12 to 05 o'clock, within 8 inches of joint: YES

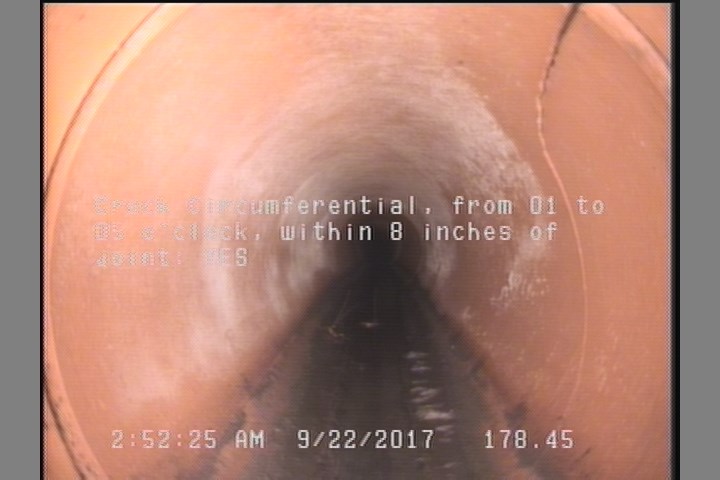

  • Crack Circumferential, from 01 to 05 o'clock, within 8 inches of joint: YES

    178.5 ft. - Crack Circumferential, from 01 to 05 o'clock, within 8 inches of joint: YES

All inspections of P24189Work order 658119

Observations (20)

DistanceCodeObservation
205.6TF—
159.1CL—
56.2TFC—
157.4TFC—
312.2TFC—
163.5CC—
330.5AMH29 0279
104.1TFC—
309.8TF—
154.9TFC—
106.8TFC—
0MWM—
53.3TFC—
0MWL—
0MGOCONNECTION AT MH 9 O'CLOCK
213.4TFC—
178.5CC—
329MGOSPALLING THROUGHOUT THE REACH
261.2TFC—
0AMH29 0279

Properties (5)

additional_info
SC345947
custom_field_two
4
customer
LACSD
datetime
2017-09-22T02:44:46-07:00
year_laid
39295
