Wastewater/Activity/PacpInspection/1.0Sep 27, 2017, 10:04 AM
05 0713_05 0752 _27092017_023121.mpg
- Date
- 09/27/2017
- W/O
- 658045
- Weather
- Dry
- Operator/Surveyor
- CORTEZ ESTEBAN
- Sewer ID
- Z00521
- PipeID
- P05978
- Time
- 3:04 AM
- Certificate
- U-209-8148
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4942
- Sewer Name
- 05 SOUTH INGLEWOOD-ORANGE AVENUE TRUNK, EXTENSION #1
- City
- INGLEWOOD
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 07
- Purpose
- Routine Assessment
- Project
- WO_630370_TV05315_AUG2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 10 in.
- Width
- 10 in.
- Upstream MH
- 05 0713
- Downstream MH
- 05 0752
- Dir. of Survey
- Downstream
- Length Surveyed
- 342.4 ft.
- Total Length
- 342.4 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2200
- O&M Rating
- 4
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 4
Observation photos (1)

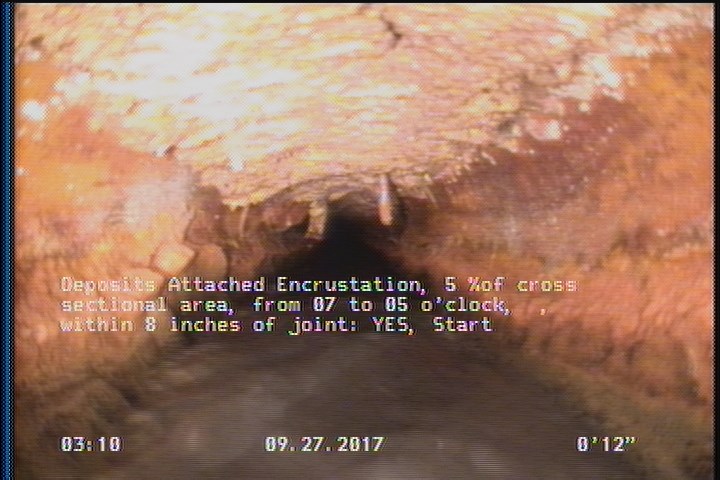

1 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 07 to 05 o'clock, , within 8 inches of joint: YES, Start
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 342.4 | AMH | 05 0752 |
| 0 | MWL | — |
| 1 | DAE | — |
| 67.1 | DAE | — |
| 0 | MGO | SERVICE CONNECTION AT 3 O' CLOCK AT MH |
| 0 | MGO | CONN. INSIDE THE MH. @ 11 O'CLOCK |
| 0 | MWM | — |
| 0 | AMH | 05 0713 |
| 0 | MGO | SERVICE CONNECTION AT 9 O'CLOCK AT MH |
Properties (4)
- additional_info
- SC345850
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-09-27T03:04:27-07:00
