Wastewater/Activity/PacpInspection/1.0Sep 21, 2017, 07:04 AM
14 0174_14 0173_09212017_000429.mp4
- Date
- 09/21/2017
- W/O
- 657965
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00584
- PipeID
- P18212
- Time
- 12:04 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4730
- Sewer Name
- 14 WEST SIDE TRUNK
- City
- LANCASTER
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 14
- Page No.
- 18
- Purpose
- Routine Assessment
- Project
- WO_630370_TV05315_AUG2017
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 14 0174
- Downstream MH
- 14 0173
- Dir. of Survey
- Downstream
- Length Surveyed
- 367.3 ft.
- Total Length
- 367.3 ft.
- Structural Index
- 2
- Structural Quick
- 322N
- Structural Rating
- 152
- O&M Index
- 3
- O&M Quick
- 4122
- O&M Rating
- 8
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 160
Observation photos (3)

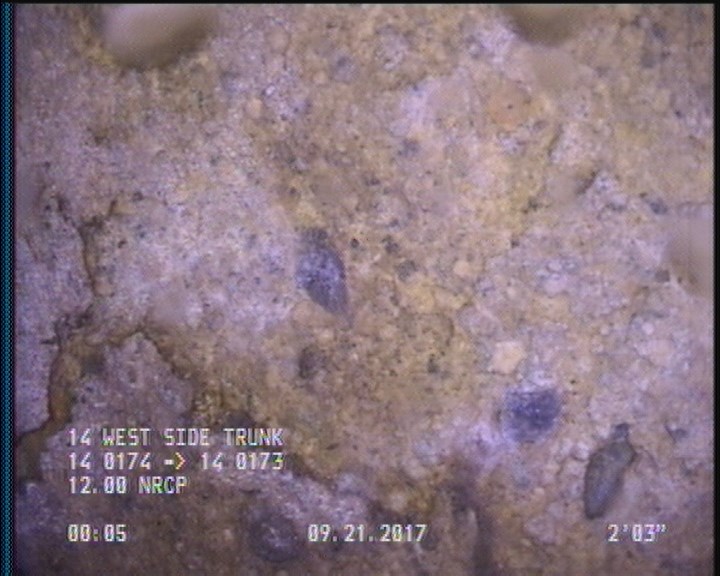

2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

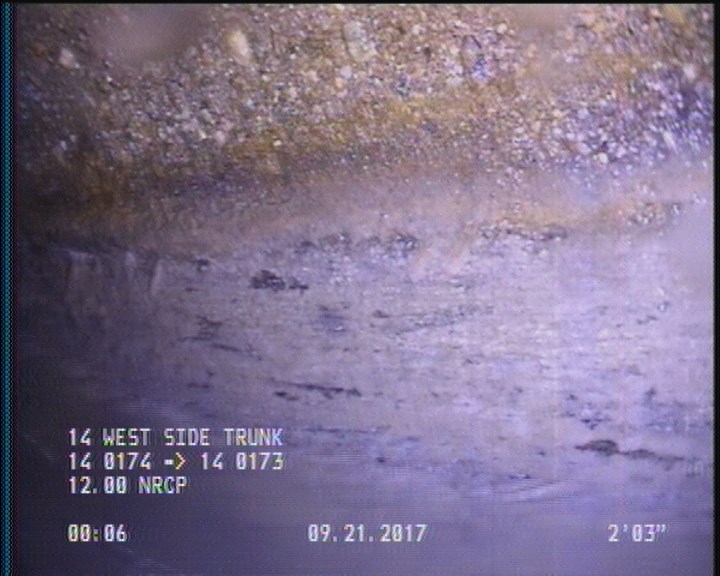

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

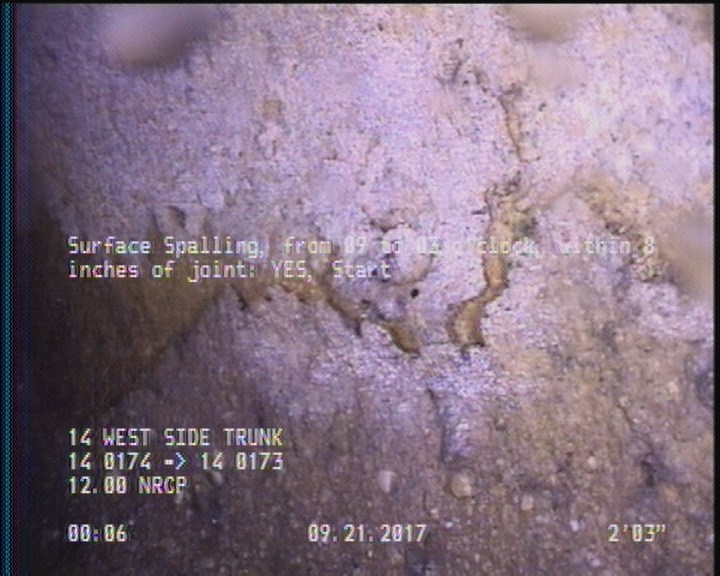

2.2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 14 0174 |
| 367.3 | AMH | 14 0173 |
| 365.4 | SAP | — |
| 119 | MGO | POSSIBLE SAG, START |
| 2 | SAP | — |
| 2.2 | SSS | — |
| 0 | MWM | — |
| 365.4 | DAGS | — |
| 365.4 | SSS | — |
| 0 | MWL | — |
| 139 | MGO | POSSIBLE SAG, FINISH |
| 2 | DAGS | — |
Properties (4)
- additional_info
- SC345743
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2017-09-21T00:04:11-07:00
