Wastewater/Activity/PacpInspection/1.0Sep 22, 2017, 10:25 AM
14 0162A_14 0162_09222017_032553.mp4
- Date
- 09/22/2017
- W/O
- 657965
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00584
- PipeID
- P18199
- Time
- 3:25 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4732
- Sewer Name
- 14 WEST SIDE TRUNK
- City
- LANCASTER
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 14
- Page No.
- 17
- Purpose
- Routine Assessment
- Project
- WO_630370_TV05315_AUG2017
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 14 0162A
- Downstream MH
- 14 0162
- Dir. of Survey
- Downstream
- Length Surveyed
- 24.7 ft.
- Total Length
- 24.7 ft.
- Structural Index
- 3
- Structural Quick
- 3200
- Structural Rating
- 6
- O&M Index
- 2
- O&M Quick
- 4124
- O&M Rating
- 12
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 18
Observation photos (2)

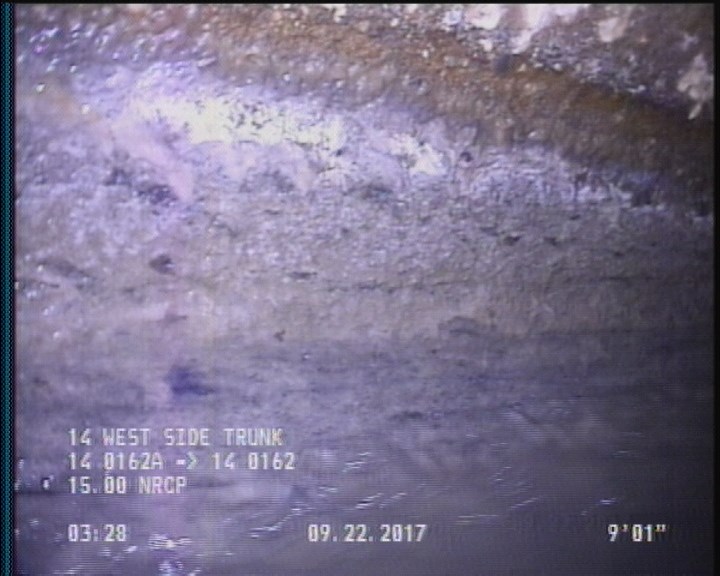

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

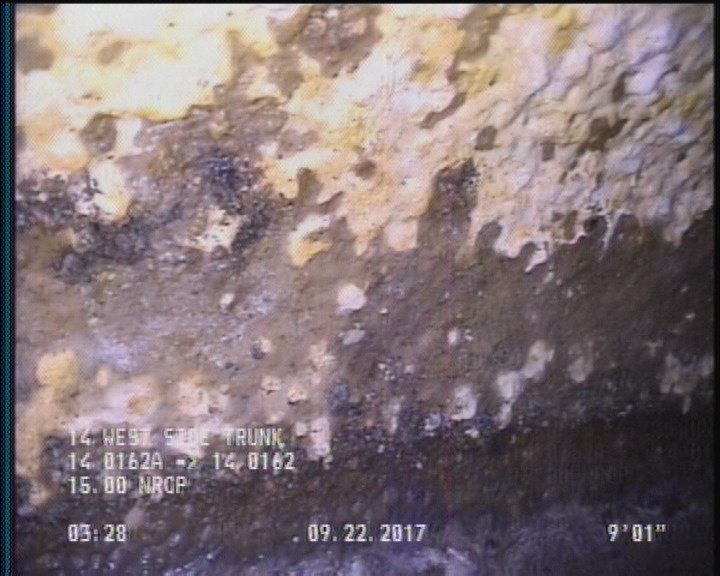

2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 2 | DAGS | — |
| 0 | MWM | — |
| 23 | DAGS | — |
| 0 | AMH | 14 0162A |
| 2 | MGO | MAG COATING 75% |
| 0 | MWL | — |
| 2 | SAP | — |
| 0 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 24.7 | AMH | 14 0162 |
| 23 | SAP | — |
| 23 | MGO | PEELING/FLAKING/SPALLING THROUGHOUT THE REACH |
Properties (4)
- additional_info
- SC345745
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2017-09-22T03:25:33-07:00
