Wastewater/Activity/PacpInspection/1.0Sep 19, 2017, 07:41 AM
22 0734_22 0733 _09192017_005514.mp4
- Date
- 09/19/2017
- W/O
- 657961
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00818
- PipeID
- P17090
- Time
- 12:41 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K4976
- Sewer Name
- 22 LONE HILL AVENUE TRUNK
- City
- GLENDORA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 14
- Purpose
- Routine Assessment
- Project
- WO_630370_TV05315_AUG2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 8 in.
- Width
- 8 in.
- Upstream MH
- 22 0733
- Downstream MH
- 22 0734
- Dir. of Survey
- Upstream
- Length Surveyed
- 154.4 ft.
- Total Length
- 154.4 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2B00
- O&M Rating
- 28
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 28
Observation photos (2)

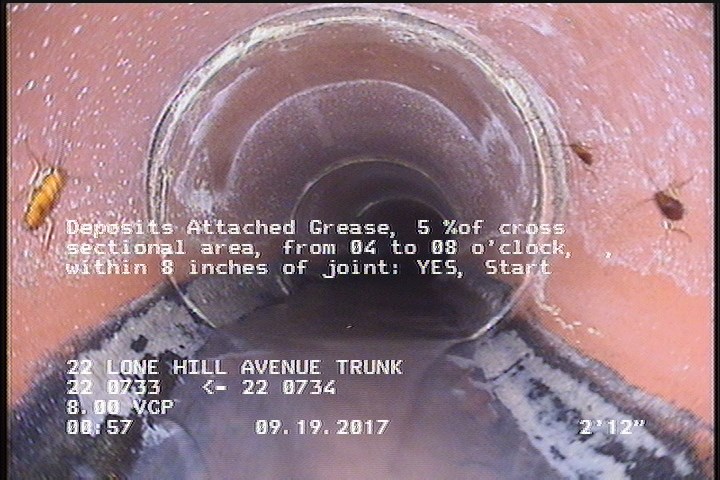

3 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

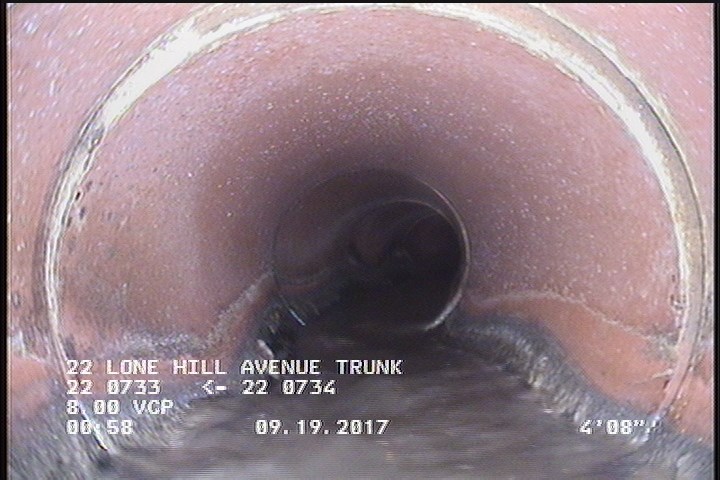

4.6 ft. - Alignment Right, 15 %, Start
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 54.6 | LR | — |
| 154.4 | DAGS | — |
| 154.4 | AMH | 22 0734 |
| 154.4 | MGO | CONNECTION AT 9 OC |
| 153 | MGO | SPALLING THROUGHOUT THE REACH |
| 154.2 | LL | — |
| 3 | DAGS | — |
| 0 | AMH | 22 0733 |
| 0 | MWM | — |
| 4.6 | LR | — |
| 109.3 | LL | — |
| 0 | MWL | — |
Properties (4)
- additional_info
- SC345968
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-09-19T00:41:29-07:00
