Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 19, 2017, 08:57 AM

  • 14 0202_14 0201 _09192017_015931.mp4

Date
09/19/2017
W/O
657830
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00584
PipeID
P18241
Time
1:57 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4728
Sewer Name
14 WEST SIDE TRUNK
City
LANCASTER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 14
Page No.
18
Purpose
Routine Assessment
Project
WO_630370_TV05315_AUG2017
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Width
8 in.
Upstream MH
14 0202
Downstream MH
14 0201
Dir. of Survey
Downstream
Length Surveyed
287.4 ft.
Total Length
287.4 ft.
Structural Index
3
Structural Quick
3I22
Structural Rating
160
O&M Index
2
O&M Quick
2J00
O&M Rating
114
Overall Index
2
Overall Quick
—
Overall Rating
274
Pipe schematic from manhole 14 0202 to 14 0201
MH: 14 0202MH: 14 0201downstream0 ft. AMH - Upstream Manhole, Survey Begins - 14 02020 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 40 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start13.9 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES19.9 ft. CL - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES23 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start33 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"65.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"95.6 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"159.2 ft. TBA - Tap Break-In Active, at 09 o'clock, -, within 8 inches of joint: NO, 6"168.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"222.3 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"267.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"284.8 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish284.8 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish287.4 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK287.4 ft. AMH - Downstream Manhole, Survey Ends - 14 0201287.4 ft. MGO - General Observation - COCKROACHES IN MANHOLE

Observation photos (5)

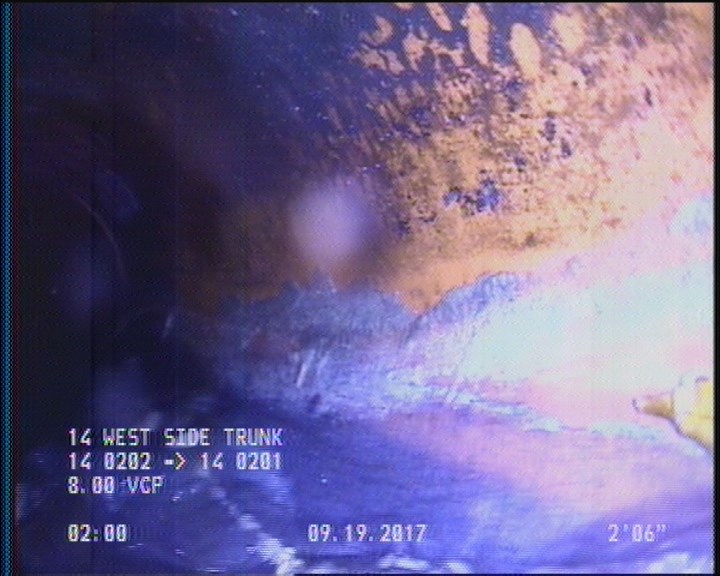

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

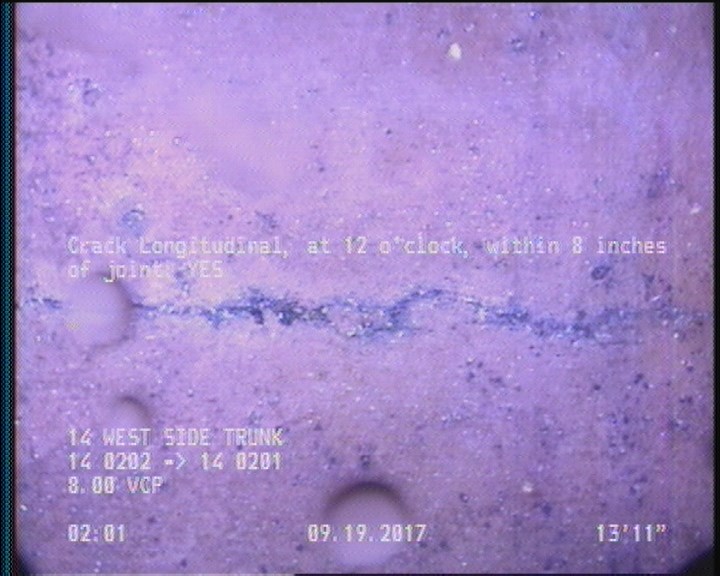

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    13.9 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

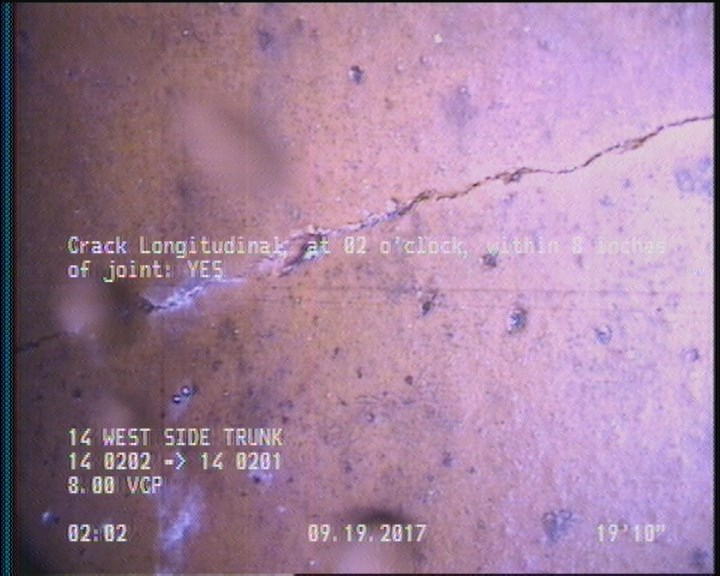

  • Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

    19.9 ft. - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

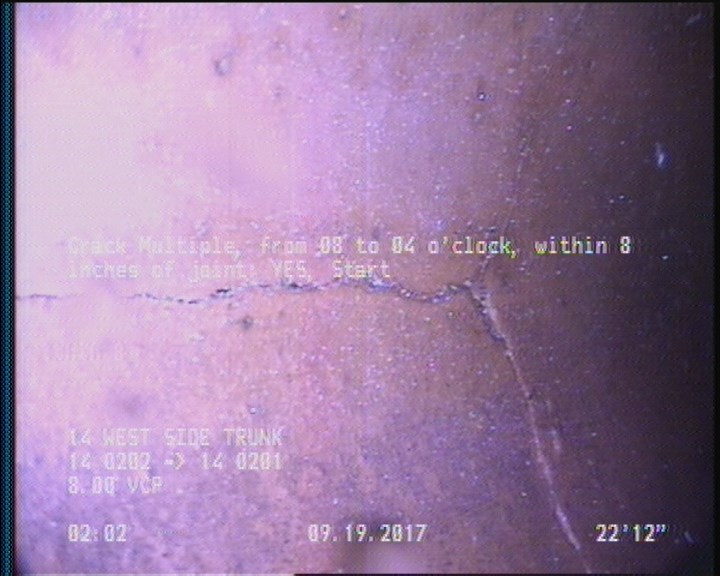

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    23 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

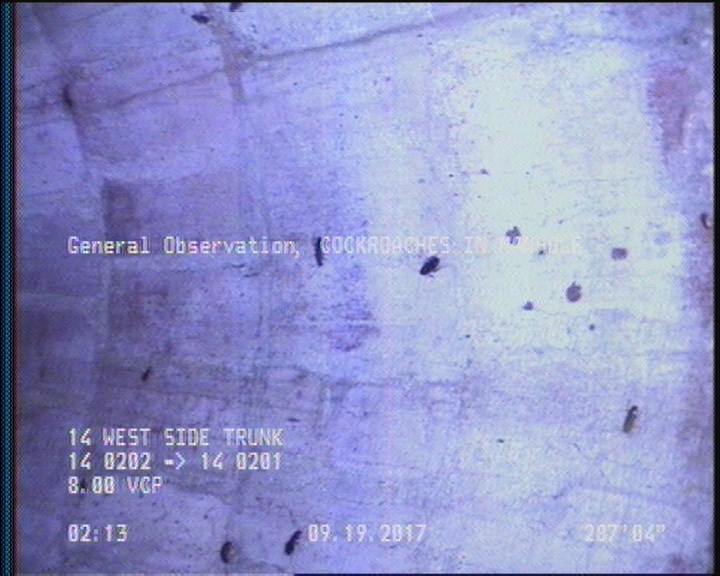

  • General Observation - COCKROACHES IN MANHOLE

    287.4 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P18241Work order 657830

Observations (19)

DistanceCodeObservation
0AMH14 0202
287.4MGOACTIVE CONNECTION AT MH 9 O'CLOCK
287.4AMH14 0201
0MWL—
284.8DAGS—
284.8CM—
65.7TFC—
33TFA—
287.4MGOCOCKROACHES IN MANHOLE
95.6TFA—
0MWM—
23CM—
267.8TFC—
2DAGS—
222.3TFA—
168.4TFC—
13.9CL—
19.9CL—
159.2TBA—

Properties (4)

additional_info
SC345741
custom_field_two
3
customer
LACSD
datetime
2017-09-19T01:57:39-07:00
