Wastewater/Activity/PacpInspection/1.0Jan 23, 2018, 07:20 AM
J 0067_J 0066_22012018_232616.mp4
- Date
- 01/22/2018
- W/O
- 679392
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00063
- PipeID
- P11646
- Time
- 11:20 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5416
- Sewer Name
- J JOINT OUTFALL J - UNIT 2D
- City
- TORRANCE
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 32
- Purpose
- Routine Assessment
- Project
- WO_679392_TV05160_JAN2018
- Sewer Type
- Siphon
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 39 in.
- Width
- 39 in.
- Upstream MH
- J 0066
- Downstream MH
- J 0067
- Dir. of Survey
- Upstream
- Length Surveyed
- 2.1 ft.
- Total Length
- 2.1 ft.
- Structural Index
- 4
- Structural Quick
- 5131
- Structural Rating
- 8
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 8
Observation photos (3)

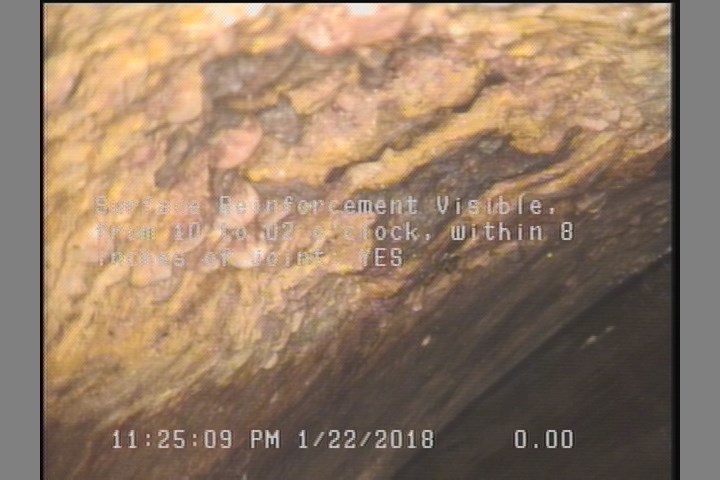

2.1 ft. - Surface Reinforcement Visible, from 10 to 02 o'clock, within 8 inches of joint: YES

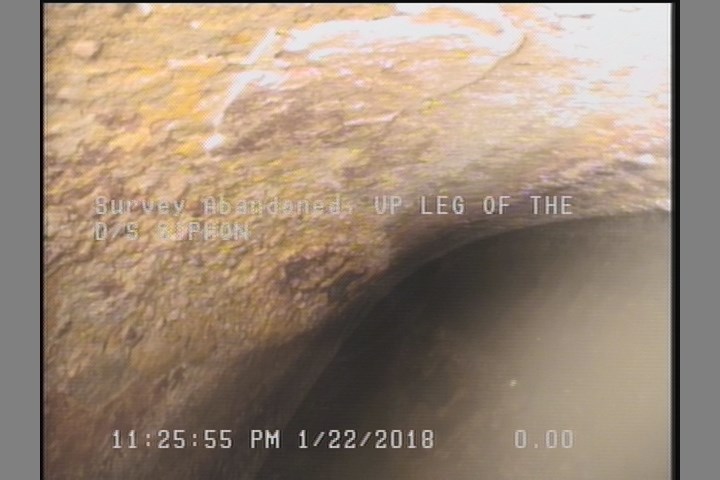

2.1 ft. - Survey Abandoned - UP LEG OF THE D/S SIPHON

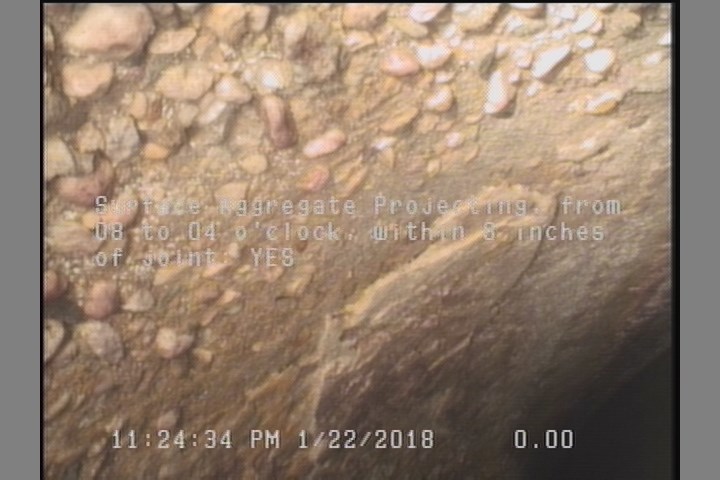

2.1 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 2.1 | SRV | — |
| 0 | AMH | J 0066 |
| 0 | MWM | — |
| 0 | MWL | — |
| 2.1 | MSA | UP LEG OF THE D/S SIPHON |
| 2.1 | SAP | — |
Properties (4)
- additional_info
- SC346800
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-01-22T23:20:41-08:00
