Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 4, 2017, 12:28 PM
Date
11/04/2017
W/O
#
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z01180
PipeID
P01464
Time
5:28 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G6859
Sewer Name
G JOINT OUTFALL G - UNIT 8
City
COMPTON
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
19
Purpose
Routine assessment
Project
JOINT_OUTFALL_G_UNIT_8
Material
RCP-CTL
Shape
Circular
Height
36 in.
Upstream MH
G 0141
Downstream MH
G 0140
Dir. of Survey
Downstream
Length Surveyed
343.6 ft.
Total Length
343.6 ft.
Structural Index
3
Structural Quick
3M00
Structural Rating
204
O&M Index
5
O&M Quick
5100
O&M Rating
5
Overall Index
3
Overall Quick
—
Overall Rating
209
Pipe schematic from manhole G 0141 to G 0140
MH: G 0141MH: G 0140downstream0 ft. AMH - Upstream Manhole, Survey Begins - 6:30AM0 ft. MWL - Water Level, 70 %of cross sectional area0 ft. MWM - Water Mark, 80 %of cross sectional area2 ft. MGO - General Observation - 20% MISSING TILES START 9:00 TO 3:002 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - AREAS OF MISSING TILES24.6 ft. MGO - General Observation - 20% MISSING TILES58.2 ft. MGO - General Observation - 40% MISSING TILES75.5 ft. MGO - General Observation - 40% MISSING TILES START302.5 ft. MGO - General Observation - 30% MISSING TILES343.2 ft. MGO - General Observation - 30% MISSING TILES FINISH343.2 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish - SEVERE AGG AREAS OF MISSING TILES343.2 ft. MGO - General Observation - MH CONN STUB 9:00343.2 ft. MGO - General Observation - MH CONN 3:00 STUB343.6 ft. AMH - Downstream Manhole, Survey Ends - 7:00AM

Observation photos (6)

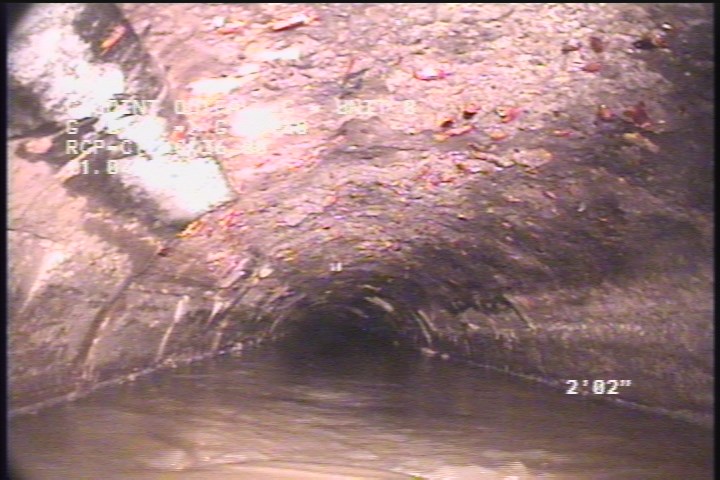

  • General Observation - 20% MISSING TILES START 9:00 TO 3:00

    2 ft. - General Observation - 20% MISSING TILES START 9:00 TO 3:00

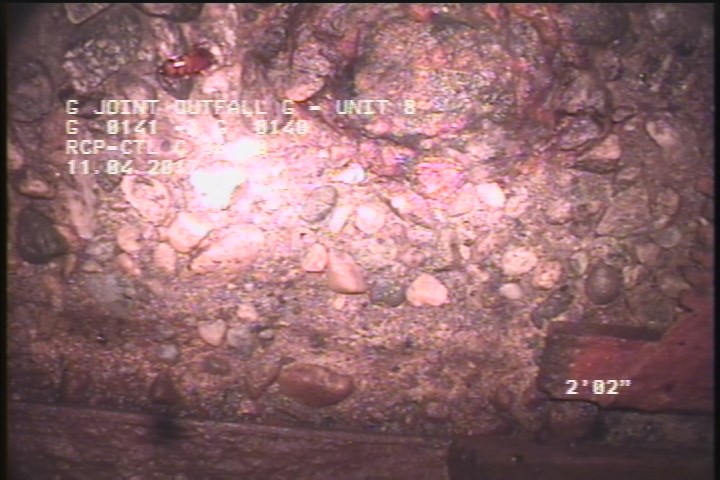

  • Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - AREAS OF MISSING TILES

    2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - AREAS OF MISSING TILES

  • General Observation - 20% MISSING TILES

    24.6 ft. - General Observation - 20% MISSING TILES

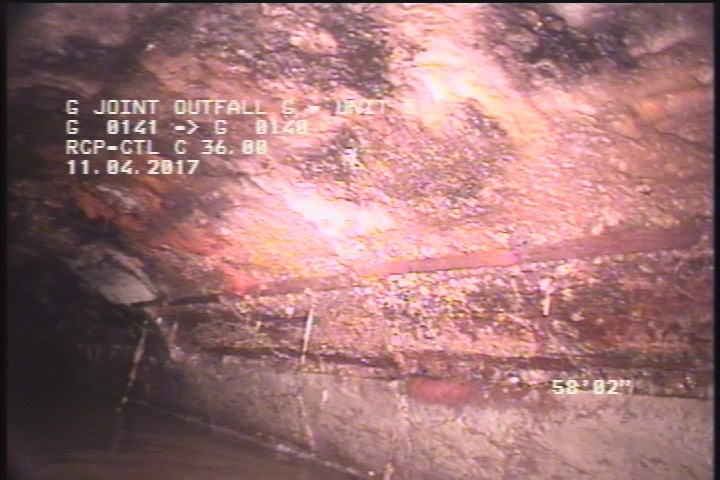

  • General Observation - 40% MISSING TILES

    58.2 ft. - General Observation - 40% MISSING TILES

  • General Observation - 40% MISSING TILES START

    75.5 ft. - General Observation - 40% MISSING TILES START

  • General Observation - 30% MISSING TILES

    302.5 ft. - General Observation - 30% MISSING TILES

All inspections of P01464Work order #

Observations (14)

DistanceCodeObservation
0AMH6:30AM
0MWL—
58.2MGO40% MISSING TILES
343.2MGO30% MISSING TILES FINISH
24.6MGO20% MISSING TILES
2MGO20% MISSING TILES START 9:00 TO 3:00
2SAPAREAS OF MISSING TILES
343.6AMH7:00AM
343.2SAPSEVERE AGG AREAS OF MISSING TILES
0MWM—
343.2MGOMH CONN STUB 9:00
302.5MGO30% MISSING TILES
343.2MGOMH CONN 3:00 STUB
75.5MGO40% MISSING TILES START

Properties (4)

custom_field_three
MISSING TILES - SEVERE AGG VISIBLE
custom_field_two
2
customer
LACSD
datetime
2017-11-04T05:28:35-07:00
