Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 10, 2018, 09:09 AM

  • 22 1117A_22 1117 _10092018_021008.mp4

Date
09/10/2018
W/O
724242
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00820
PipeID
P17495
Time
2:09 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5996
Sewer Name
22 POLYMER PLANT WASTE WATER DISPOSAL LINE
City
IRWINDALE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
10
Purpose
Routine Assessment
Project
WO_724242_TV22115_SEP2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Width
8 in.
Upstream MH
22 1117A
Downstream MH
22 1117
Dir. of Survey
Downstream
Length Surveyed
616.5 ft.
Total Length
616.5 ft.
Structural Index
3
Structural Quick
4123
Structural Rating
10
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
10
Pipe schematic from manhole 22 1117A to 22 1117
MH: 22 1117AMH: 22 1117downstream0 ft. MWM - Water Mark, 5 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 22 1117A0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK16.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"97.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"197.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"273.5 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 6"296.7 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: NO, 6"356.2 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: NO, 6"370.1 ft. FM - Fracture Multiple, from 08 to 01 o'clock, within 8 inches of joint: YES398.1 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: NO, 6"442.5 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"459.9 ft. CL - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES496.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"550.1 ft. TB - Tap Break-In, at 09 o'clock, -, within 8 inches of joint: NO, 6"563.9 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES611.6 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: NO, 6"613.1 ft. CL - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES616.5 ft. AMH - Downstream Manhole, Survey Ends - 22 1117

Observation photos (6)

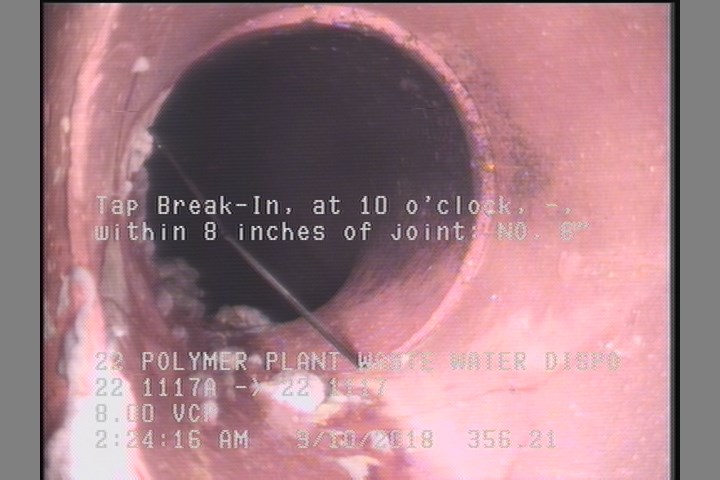

  • Tap Break-In, at 10 o'clock, -, within 8 inches of joint: NO, 6"

    356.2 ft. - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: NO, 6"

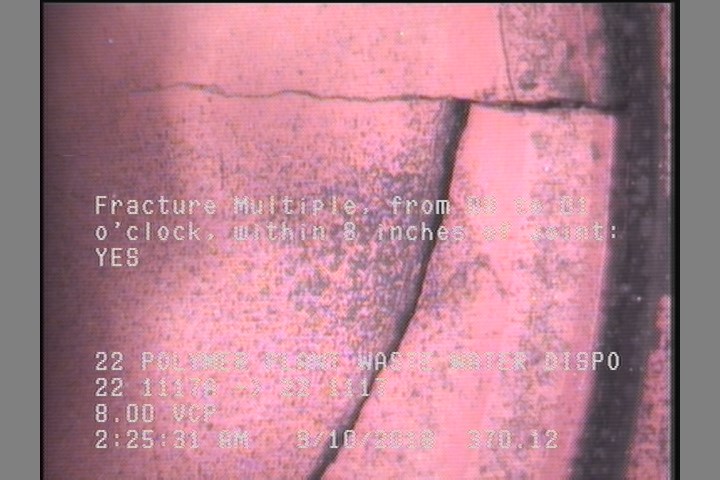

  • Fracture Multiple, from 08 to 01 o'clock, within 8 inches of joint: YES

    370.1 ft. - Fracture Multiple, from 08 to 01 o'clock, within 8 inches of joint: YES

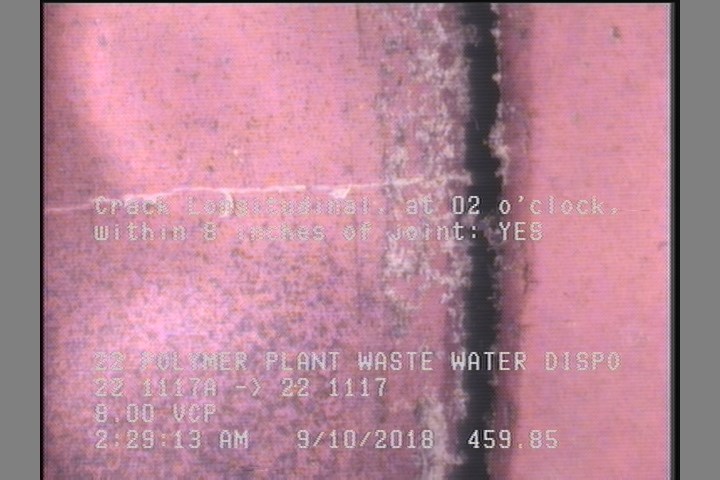

  • Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

    459.9 ft. - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

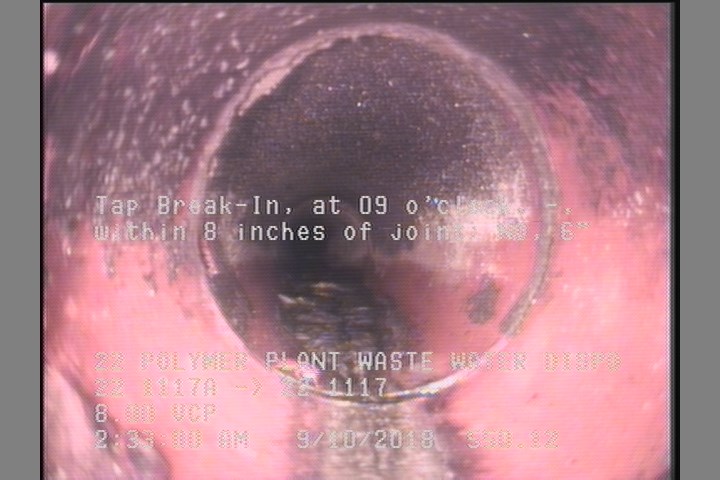

  • Tap Break-In, at 09 o'clock, -, within 8 inches of joint: NO, 6"

    550.1 ft. - Tap Break-In, at 09 o'clock, -, within 8 inches of joint: NO, 6"

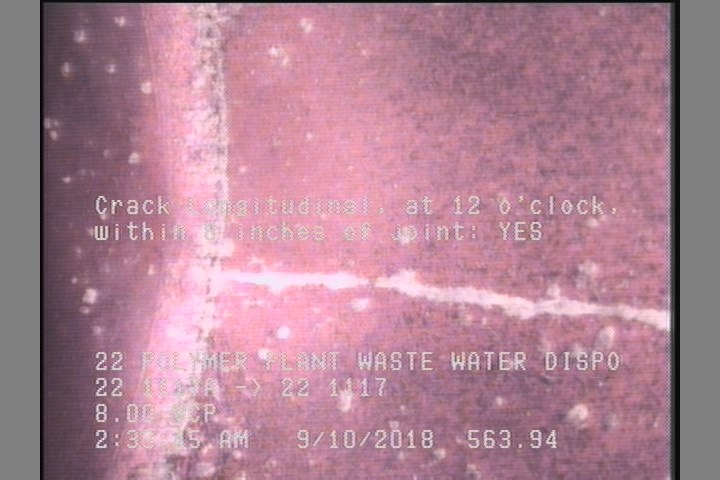

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    563.9 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

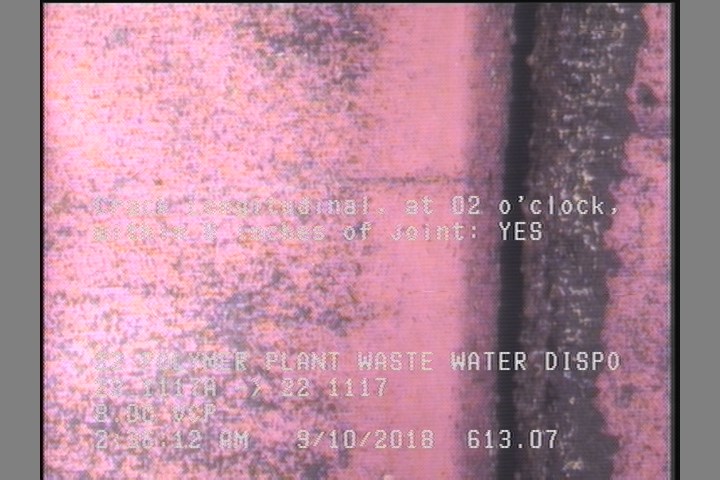

  • Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

    613.1 ft. - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

All inspections of P17495Work order 724242

Observations (20)

DistanceCodeObservation
16.8TFC—
550.1TB—
296.7TFC—
97.8TFC—
0MWM—
496.2TFC—
197.7TFC—
398.1TFC—
563.9CL—
273.5TF—
442.5TF—
0AMH22 1117A
616.5AMH22 1117
459.9CL—
611.6TFC—
356.2TB—
0MWL—
0MGOCONNECTION AT MH 9 O'CLOCK
613.1CL—
370.1FM—

Properties (5)

additional_info
SC364811
custom_field_two
3
customer
LACSD
datetime
2018-09-10T02:09:42-07:00
year_laid
27163
