  • 22 1118A_22 1118 _10092018_010430.mp4

Date
09/10/2018
W/O
724242
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00820
PipeID
P17497
Time
1:04 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5996
Sewer Name
22 POLYMER PLANT WASTE WATER DISPOSAL LINE
City
AZUSA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
10
Purpose
Routine Assessment
Project
WO_724242_TV22115_SEP2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Width
8 in.
Upstream MH
22 1118A
Downstream MH
22 1118
Dir. of Survey
Downstream
Length Surveyed
983.4 ft.
Total Length
983.4 ft.
Structural Index
3
Structural Quick
3W21
Structural Rating
356
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
356
Pipe schematic from manhole 22 1118A to 22 1118
MH: 22 1118AMH: 22 1118downstream0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. MWM - Water Mark, 5 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 22 1118A0 ft. MGO - General Observation - CONNECTION AT MH 7 O'CLOCK153.4 ft. CM - Crack Multiple, from 08 to 12 o'clock, within 8 inches of joint: YES178.2 ft. CM - Crack Multiple, from 11 to 02 o'clock, within 8 inches of joint: YES249.4 ft. CM - Crack Multiple, from 11 to 01 o'clock, within 8 inches of joint: YES254.6 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start826.7 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish878.3 ft. CM - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES899 ft. CL - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES983.4 ft. AMH - Downstream Manhole, Survey Ends - 22 1118

Observation photos (6)

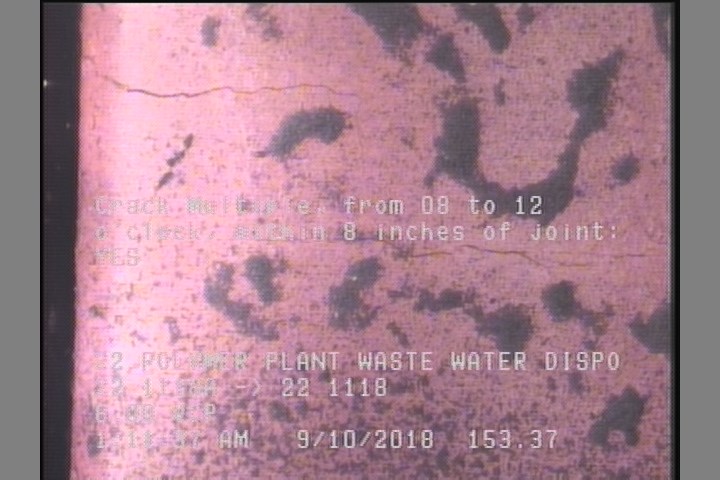

  • Crack Multiple, from 08 to 12 o'clock, within 8 inches of joint: YES

    153.4 ft. - Crack Multiple, from 08 to 12 o'clock, within 8 inches of joint: YES

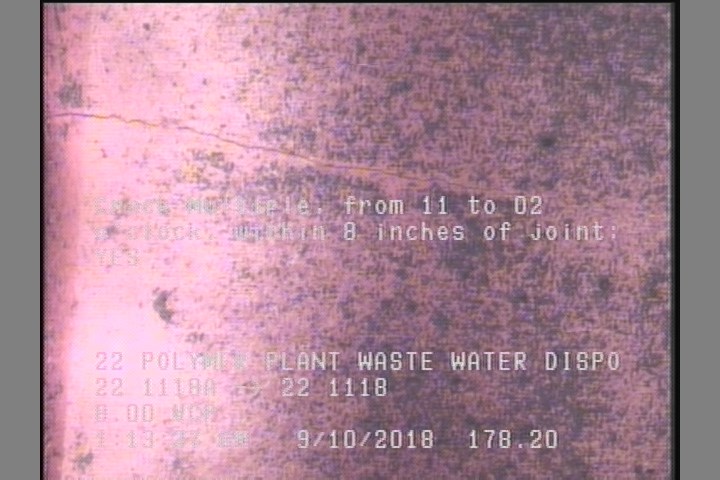

  • Crack Multiple, from 11 to 02 o'clock, within 8 inches of joint: YES

    178.2 ft. - Crack Multiple, from 11 to 02 o'clock, within 8 inches of joint: YES

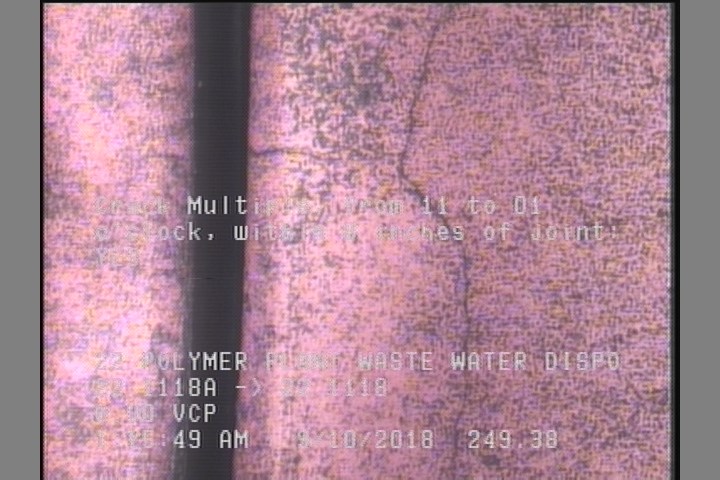

  • Crack Multiple, from 11 to 01 o'clock, within 8 inches of joint: YES

    249.4 ft. - Crack Multiple, from 11 to 01 o'clock, within 8 inches of joint: YES

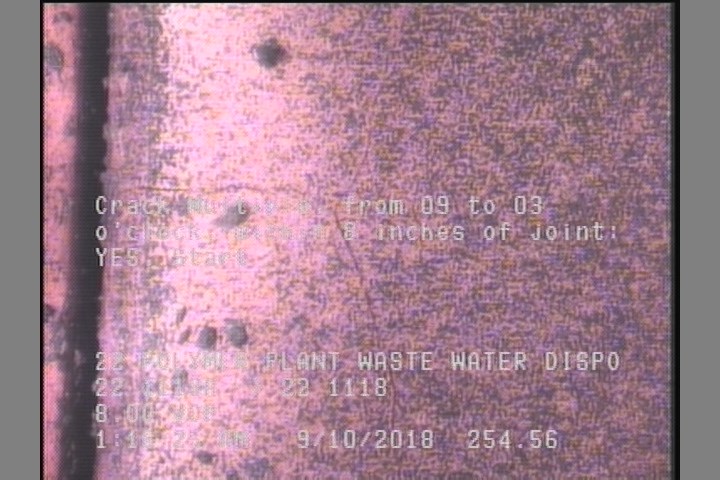

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    254.6 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

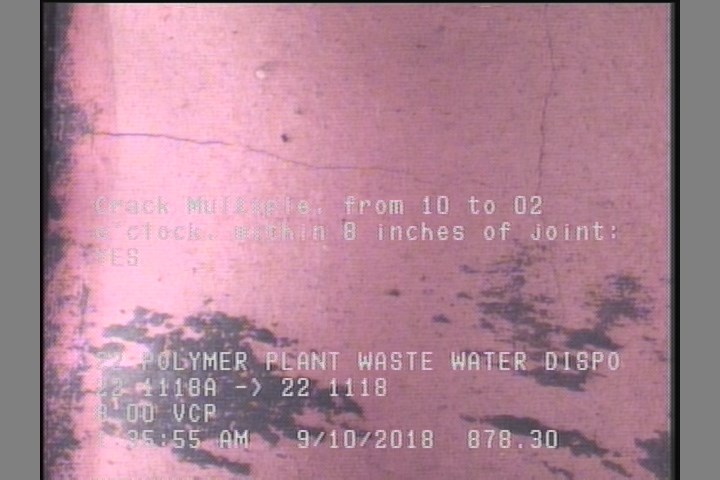

  • Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES

    878.3 ft. - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES

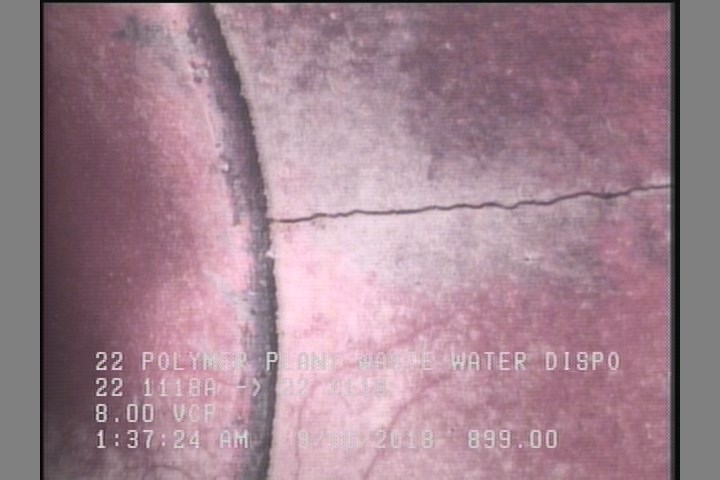

  • Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

    899 ft. - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

All inspections of P17497Work order 724242

Observations (12)

DistanceCodeObservation
178.2CM—
826.7CM—
878.3CM—
983.4AMH22 1118
254.6CM—
0MWL—
0MWM—
153.4CM—
899CL—
0AMH22 1118A
0MGOCONNECTION AT MH 7 O'CLOCK
249.4CM—

Properties (5)

additional_info
SC364811
custom_field_two
3
customer
LACSD
datetime
2018-09-10T01:04:21-07:00
year_laid
27163
