Wastewater/Activity/PacpInspection/1.0Aug 30, 2018, 08:24 AM
14 0117_14 0116A _08302018_012440.mp4
- Date
- 08/30/2018
- W/O
- 723899
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00571
- PipeID
- P25683
- Time
- 1:24 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6022
- Sewer Name
- 14 DISTRICT #14 OUTFALL TRUNK
- City
- LANCASTER
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 14
- Page No.
- 05
- Purpose
- Routine Assessment
- Project
- WO_723899_TV14075_SEP2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 14 0117
- Downstream MH
- 14 0116A
- Dir. of Survey
- Downstream
- Length Surveyed
- 410.3 ft.
- Total Length
- 410.3 ft.
- Structural Index
- 3
- Structural Quick
- 493O
- Structural Rating
- 273
- O&M Index
- 2
- O&M Quick
- 412O
- O&M Rating
- 166
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 439
Observation photos (3)

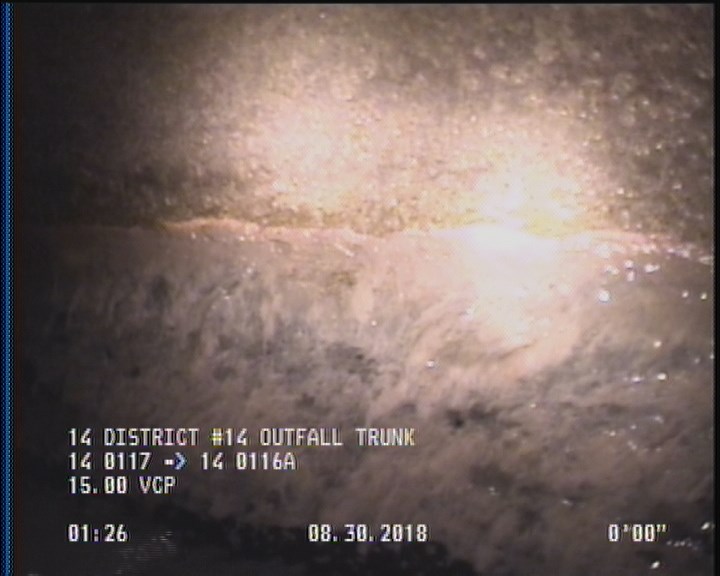

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

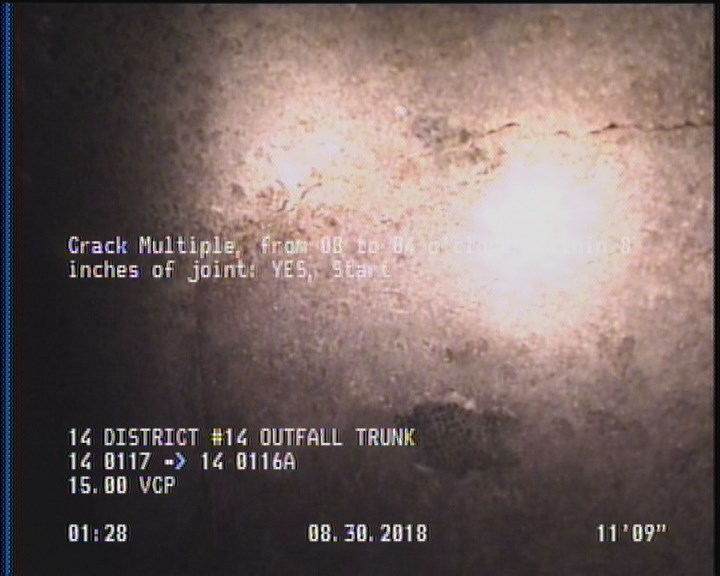

11.8 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

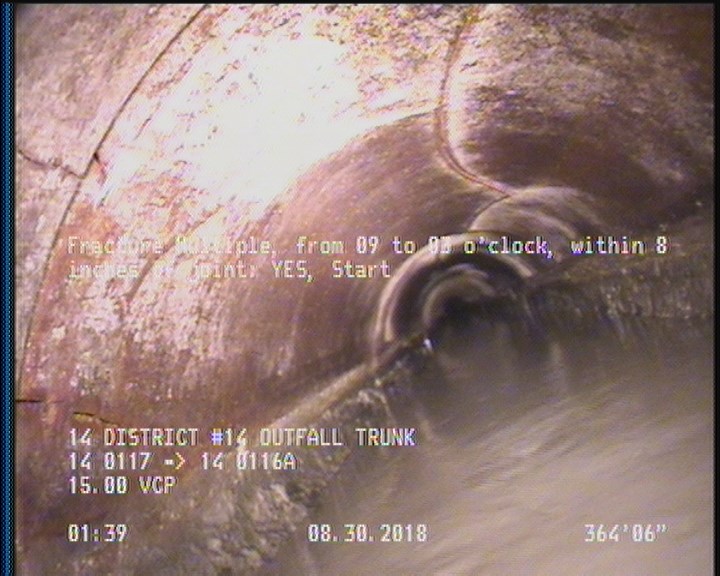

364.5 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (18)
| Distance | Code | Observation |
|---|---|---|
| 410.3 | AMH | 14 0116A |
| 408.8 | DAGS | — |
| 214.1 | TBA | — |
| 0 | MWL | — |
| 364.5 | TBA | — |
| 410.3 | MGO | ACTIVE CONNECTION AT MH 8 O'CLOCK |
| 11.8 | TBA | — |
| 0 | AMH | 14 0117 |
| 0 | MWM | — |
| 97.3 | TBA | — |
| 11.8 | CM | — |
| 258.3 | TBA | — |
| 408.8 | CM | — |
| 101.4 | TBA | — |
| 364.5 | FM | — |
| 408.8 | FM | — |
| 149.5 | TBA | — |
| 2 | DAGS | — |
Properties (4)
- additional_info
- SC364786
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-08-30T01:24:25-07:00
