Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 13, 2018, 08:08 AM

  • 16 0079_16 0078 _13092018_011211.mp4

Date
09/13/2018
W/O
723811
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00639
PipeID
P13093
Time
1:08 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6004
Sewer Name
16 ALLEN AVENUE TRUNK, SECTS 1,2,&4
City
SAN MARINO
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
18
Purpose
Routine Assessment
Project
WO_723811_TV16084_SEP2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
16 in.
Width
16 in.
Upstream MH
16 0079
Downstream MH
16 0078
Dir. of Survey
Downstream
Length Surveyed
229 ft.
Total Length
229 ft.
Structural Index
4
Structural Quick
4D3C
Structural Rating
162
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
4
Overall Quick
—
Overall Rating
162
Pipe schematic from manhole 16 0079 to 16 0078
MH: 16 0079MH: 16 0078downstream0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 16 00790 ft. MGO - General Observation - CONNECTION AT MH 7 O'CLOCK6.1 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start38.1 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"40.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"86.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"87.7 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES89.1 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"94.9 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish94.9 ft. FM - Fracture Multiple, from 07 to 05 o'clock, within 8 inches of joint: YES, Start137.5 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"140.5 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"186 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"189 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"224.5 ft. FM - Fracture Multiple, from 07 to 05 o'clock, within 8 inches of joint: YES, Finish229 ft. AMH - Downstream Manhole, Survey Ends - 16 0078

Observation photos (3)

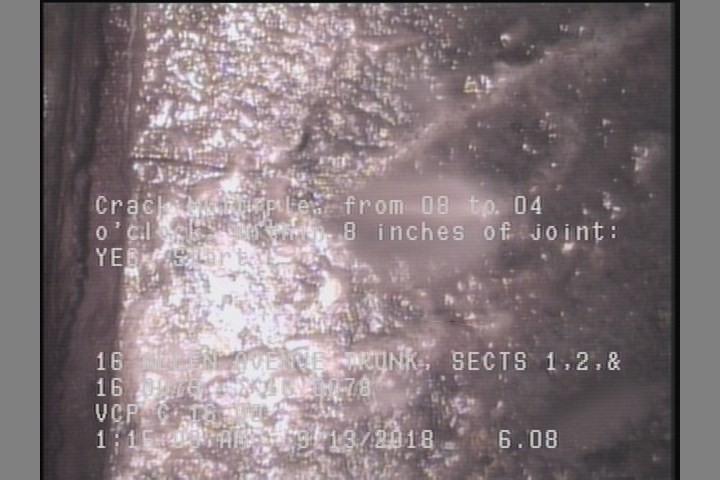

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    6.1 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

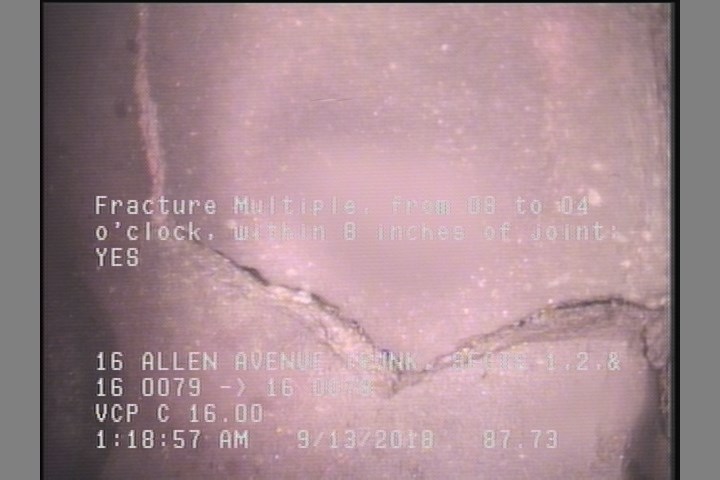

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    87.7 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

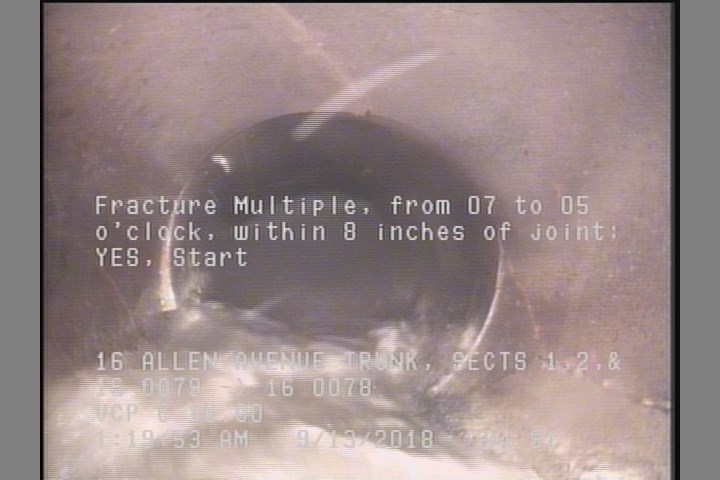

  • Fracture Multiple, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

    94.9 ft. - Fracture Multiple, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

All inspections of P13093Work order 723811

Observations (18)

DistanceCodeObservation
86.7TFC—
38.1TF—
40.2TFC—
6.1CM—
137.5TF—
87.7FM—
94.9CM—
0MWL—
229AMH16 0078
0MWM—
0AMH16 0079
94.9FM—
189TFC—
140.5TF—
89.1TF—
186TFC—
224.5FM—
0MGOCONNECTION AT MH 7 O'CLOCK

Properties (4)

additional_info
SC364819
custom_field_two
2
customer
LACSD
datetime
2018-09-13T01:08:32-07:00
