Wastewater/Activity/PacpInspection/1.0Sep 14, 2018, 05:06 AM
16 0008_16 0007 _13092018_220657.mp4
- Date
- 09/13/2018
- W/O
- 723788
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00639
- PipeID
- P13044
- Time
- 10:06 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6105
- Sewer Name
- 16 ALLEN AVENUE TRUNK, SECTS 1,2,&4
- City
- SAN GABRIEL
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 23
- Purpose
- Routine Assessment
- Project
- WO_723788_TV16107_SEP2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 16 0008
- Downstream MH
- 16 0007
- Dir. of Survey
- Downstream
- Length Surveyed
- 359.8 ft.
- Total Length
- 359.8 ft.
- Structural Index
- 3
- Structural Quick
- 3M00
- Structural Rating
- 213
- O&M Index
- 2
- O&M Quick
- 2K00
- O&M Rating
- 120
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 333
Observation photos (2)

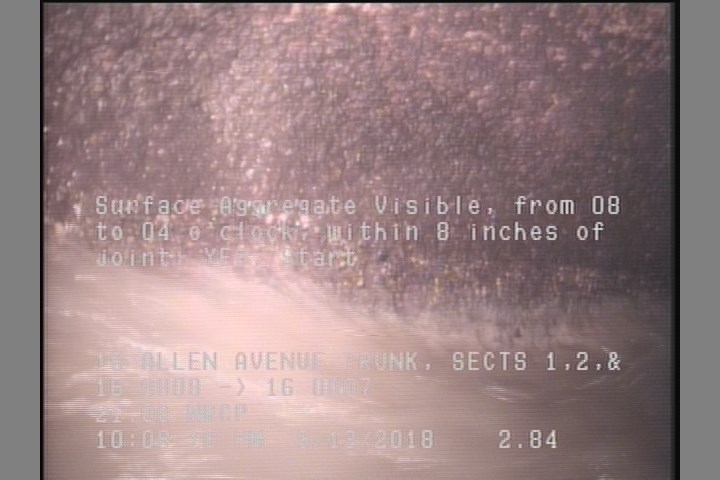

2.8 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

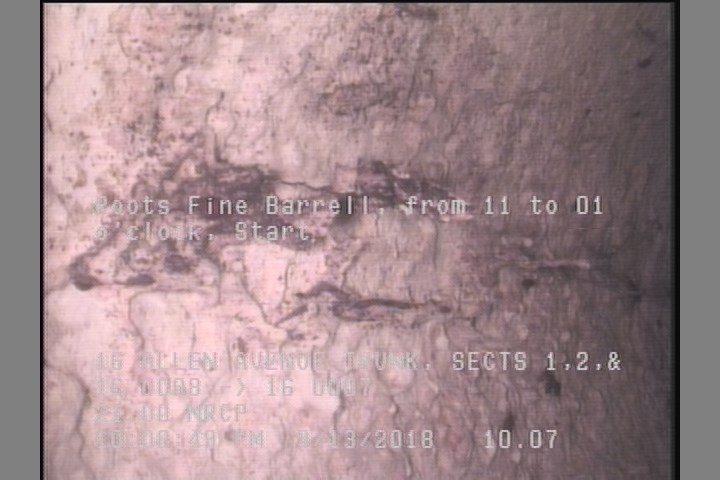

10.1 ft. - Roots Fine Barrell, from 11 to 01 o'clock, Start
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 359.8 | AMH | 16 0007 |
| 0 | MWM | — |
| 2.8 | MGO | MAG COAT |
| 10.1 | RFB | — |
| 308.5 | RFB | — |
| 359.8 | SAV | — |
| 2.8 | SAV | — |
| 0 | AMH | 16 0008 |
| 0 | MWL | — |
Properties (4)
- additional_info
- SC364821
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-09-13T22:06:52-07:00
