  • 16 0009_16 0008 _13092018_035427.mp4

Date
09/13/2018
W/O
723788
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00639
PipeID
P13045
Time
3:54 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6005
Sewer Name
16 ALLEN AVENUE TRUNK, SECTS 1,2,&4
City
SAN GABRIEL
Loc. details
Sidewalk
Location Code
F
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
23
Purpose
Routine Assessment
Project
WO_723788_TV16107_SEP2018
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
21 in.
Width
21 in.
Upstream MH
16 0009
Downstream MH
16 0008
Dir. of Survey
Downstream
Length Surveyed
362.4 ft.
Total Length
362.4 ft.
Structural Index
3
Structural Quick
3M00
Structural Rating
216
O&M Index
1
O&M Quick
231B
O&M Rating
23
Overall Index
3
Overall Quick
—
Overall Rating
239
Pipe schematic from manhole 16 0009 to 16 0008
MH: 16 0009MH: 16 0008downstream0 ft. MWM - Water Mark, 10 %of cross sectional area0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 16 00093.5 ft. MGO - General Observation - MAG COAT3.5 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start10.5 ft. RFB - Roots Fine Barrell, at 12 o'clock93.2 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"93.2 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 6"133.7 ft. RFB - Roots Fine Barrell, at 12 o'clock188.9 ft. RFB - Roots Fine Barrell, at 12 o'clock253.9 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish254 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: NO, Start275.4 ft. RFJ - Roots Fine Joint, from 10 to 02 o'clock, within 8 inches of joint: YES, Start362.4 ft. AMH - Downstream Manhole, Survey Ends - 16 0008362.4 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: NO, Finish362.4 ft. RFJ - Roots Fine Joint, from 10 to 02 o'clock, within 8 inches of joint: YES, Finish

Observation photos (6)

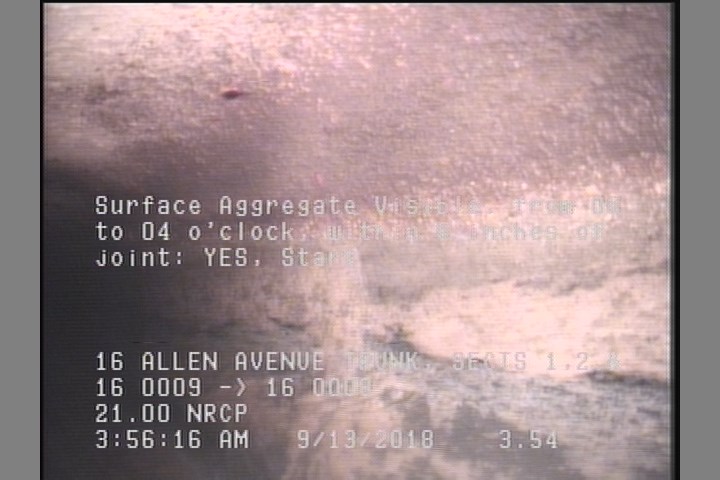

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    3.5 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

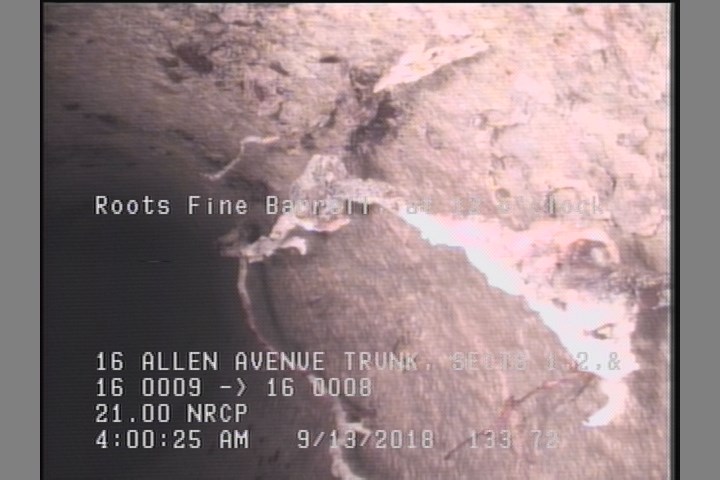

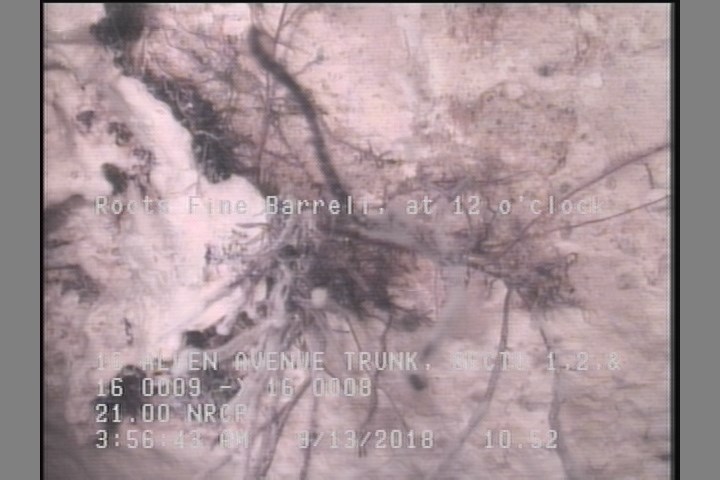

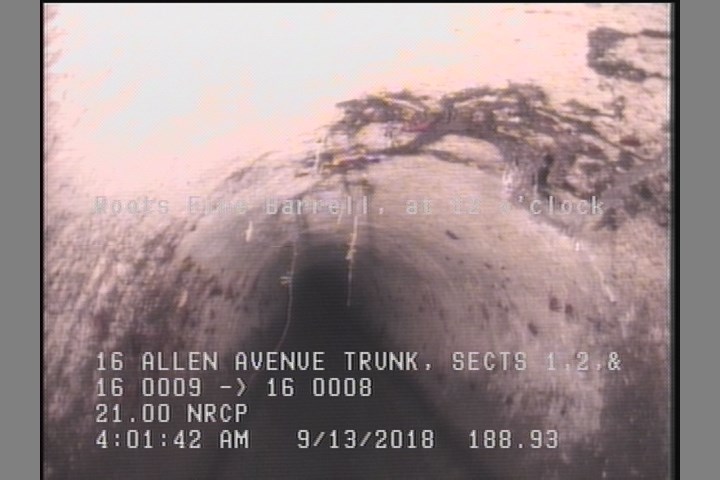

  • Roots Fine Barrell, at 12 o'clock

    10.5 ft. - Roots Fine Barrell, at 12 o'clock

  • Roots Fine Barrell, at 12 o'clock

    133.7 ft. - Roots Fine Barrell, at 12 o'clock

  • Roots Fine Barrell, at 12 o'clock

    188.9 ft. - Roots Fine Barrell, at 12 o'clock

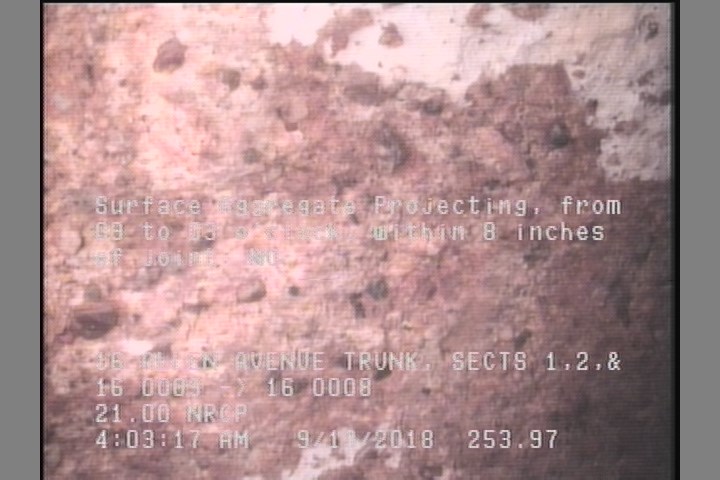

  • Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: NO, Start

    254 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: NO, Start

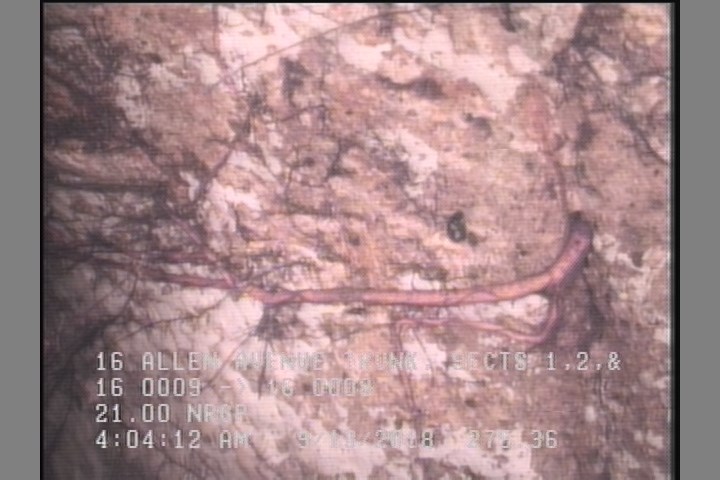

  • Roots Fine Joint, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

    275.4 ft. - Roots Fine Joint, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

All inspections of P13045Work order 723788

Observations (16)

DistanceCodeObservation
253.9SAV—
10.5RFB—
0MWM—
93.2TF—
275.4RFJ—
3.5MGOMAG COAT
362.4AMH16 0008
0MWL—
133.7RFB—
3.5SAV—
254SAP—
0AMH16 0009
362.4SAP—
93.2TF—
362.4RFJ—
188.9RFB—

Properties (3)

additional_info
SC364820
customer
LACSD
datetime
2018-09-13T03:54:12-07:00
