Wastewater/Activity/PacpInspection/1.0Sep 14, 2018, 06:39 AM
16 0005_16 0002 _13092018_233936.mp4
- Date
- 09/13/2018
- W/O
- 723788
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00639
- PipeID
- P13040
- Time
- 11:39 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6105
- Sewer Name
- 16 ALLEN AVENUE TRUNK, SECTS 1,2,&4
- City
- SAN GABRIEL
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 23
- Purpose
- Routine Assessment
- Project
- WO_723788_TV16107_SEP2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 16 0005
- Downstream MH
- 16 0002
- Dir. of Survey
- Downstream
- Length Surveyed
- 59.3 ft.
- Total Length
- 59.3 ft.
- Structural Index
- 3
- Structural Quick
- 3A29
- Structural Rating
- 51
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 51
Observation photos (2)

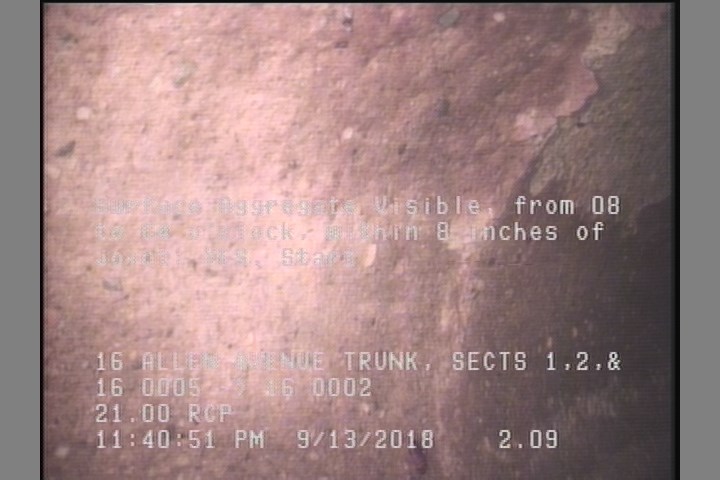

2.1 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

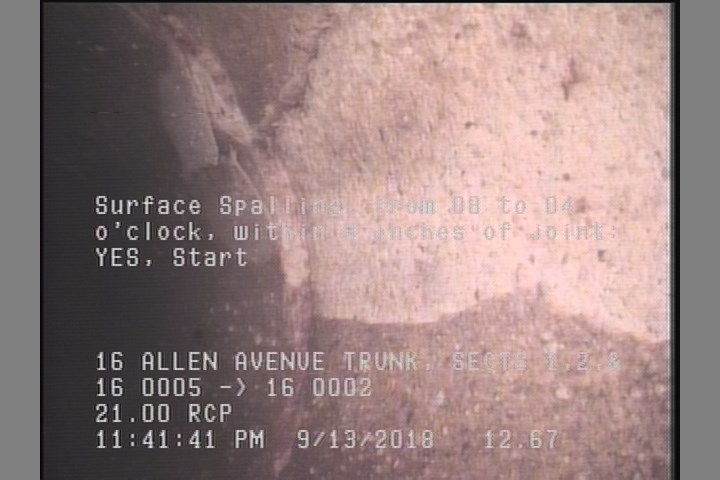

12.7 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 59.3 | SAV | — |
| 0 | MWL | — |
| 0 | MWM | — |
| 2.1 | SAV | — |
| 59.3 | SSS | — |
| 0 | AMH | 16 0005 |
| 12.7 | SSS | — |
| 59.3 | AMH | 16 0002 |
Properties (4)
- additional_info
- SC364821
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-09-13T23:39:09-07:00
