Wastewater/Activity/PacpInspection/1.0Sep 13, 2018, 04:31 AM
16 0194_16 0193_12092018_214129.mp4
- Date
- 09/12/2018
- W/O
- 723757
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00646
- PipeID
- P13237
- Time
- 9:31 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6002
- Sewer Name
- 16 ARROYO SECO TRUNK, SECTION 3
- City
- SOUTH PASADENA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 17
- Purpose
- Routine Assessment
- Project
- WO_723757_TV16114_SEP2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 16 0194
- Downstream MH
- 16 0193
- Dir. of Survey
- Downstream
- Length Surveyed
- 87.9 ft.
- Total Length
- 87.9 ft.
- Structural Index
- 3
- Structural Quick
- 563B
- Structural Rating
- 106
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 106
Observation photos (4)

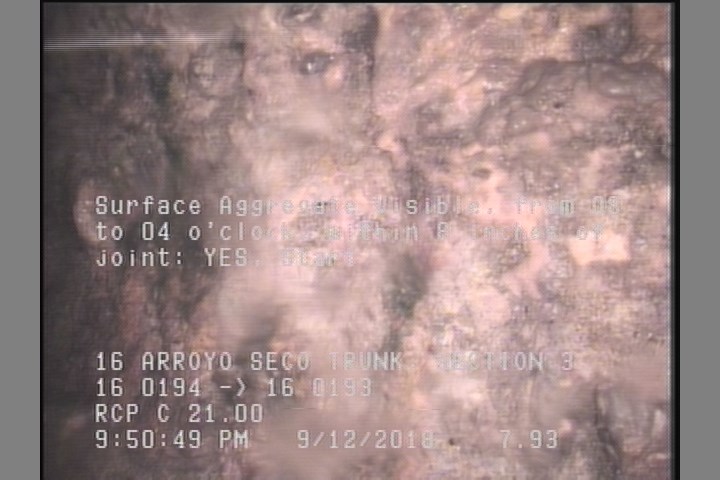

7.9 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

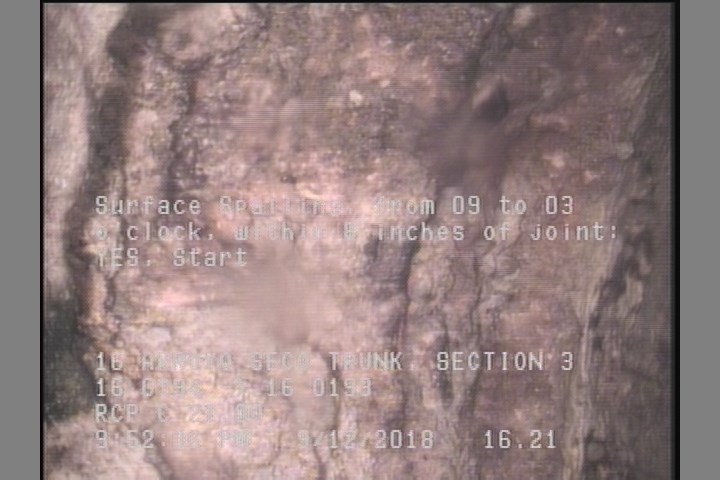

16.2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

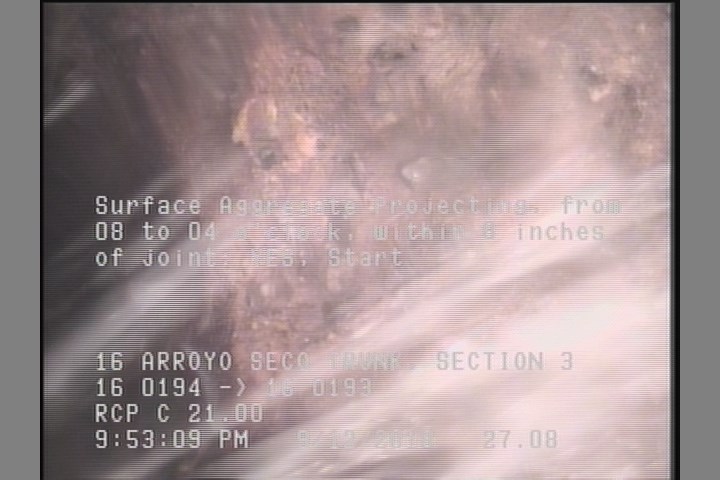

27.1 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

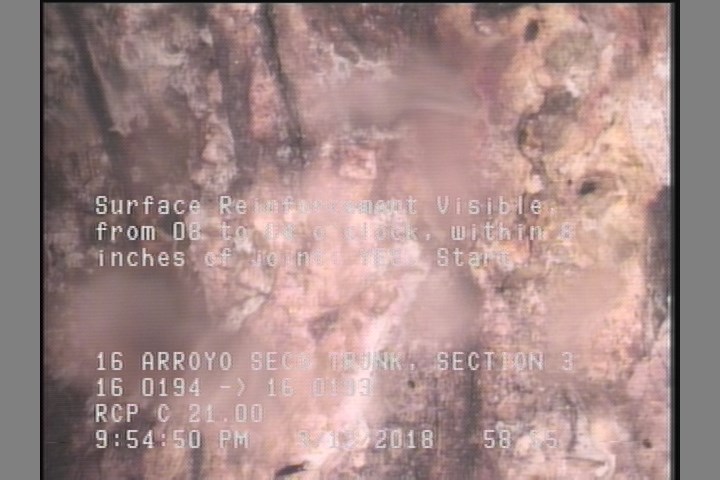

58.6 ft. - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 87.9 | SRV | — |
| 87.9 | AMH | 16 0193 |
| 87.9 | SAP | — |
| 27.1 | SAV | — |
| 16.2 | SSS | — |
| 0 | MWL | — |
| 58.6 | SRV | — |
| 0 | MWM | — |
| 0 | AMH | 16 0194 |
| 27.1 | SAP | — |
| 7.9 | SAV | — |
| 87.9 | SSS | — |
Properties (4)
- additional_info
- SC364817
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-09-12T21:31:51-07:00
