Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 13, 2018, 06:31 AM

  • 16 0187_16 0186_12092018_233219.mp4

Date
09/12/2018
W/O
723757
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00646
PipeID
P13230
Time
11:31 PM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6002
Sewer Name
16 ARROYO SECO TRUNK, SECTION 3
City
SOUTH PASADENA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
17
Purpose
Routine Assessment
Project
WO_723757_TV16114_SEP2018
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
16 0187
Downstream MH
16 0186
Dir. of Survey
Downstream
Length Surveyed
107.5 ft.
Total Length
107.5 ft.
Structural Index
3
Structural Quick
3C2C
Structural Rating
101
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
101
Pipe schematic from manhole 16 0187 to 16 0186
MH: 16 0187MH: 16 0186downstream0 ft. MWM - Water Mark, 40 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 16 01870 ft. MWL - Water Level, 20 %of cross sectional area2.9 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start13.6 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start22.7 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: NO, 6"29.4 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 6"74.9 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: NO, 6"107.5 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish107.5 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish107.5 ft. AMH - Downstream Manhole, Survey Ends - 16 0186

Observation photos (2)

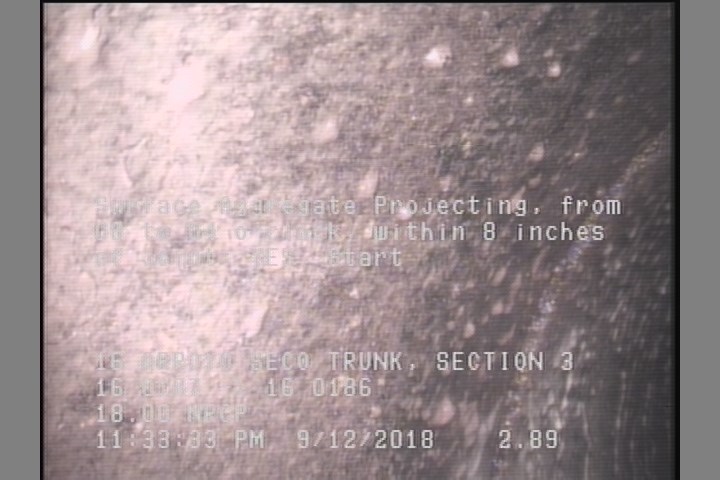

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2.9 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

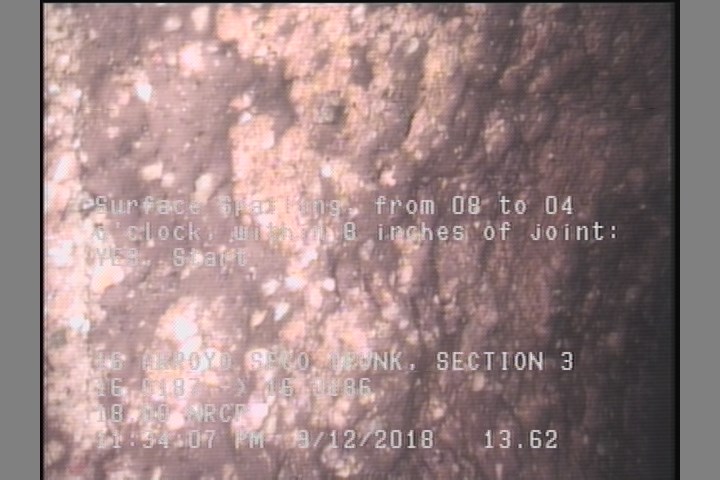

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    13.6 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P13230Work order 723757

Observations (11)

DistanceCodeObservation
0MWM—
29.4TF—
0AMH16 0187
22.7TFC—
74.9TFC—
13.6SSS—
107.5SSS—
107.5SAP—
107.5AMH16 0186
2.9SAP—
0MWL—

Properties (4)

additional_info
SC364817
custom_field_two
2
customer
LACSD
datetime
2018-09-12T23:31:50-07:00
