Wastewater/Activity/PacpInspection/1.0Sep 13, 2018, 05:23 AM
16 0191_16 0190_12092018_222516.mp4
- Date
- 09/12/2018
- W/O
- 723757
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00646
- PipeID
- P13234
- Time
- 10:23 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6002
- Sewer Name
- 16 ARROYO SECO TRUNK, SECTION 3
- City
- SOUTH PASADENA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 17
- Purpose
- Routine Assessment
- Project
- WO_723757_TV16114_SEP2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 16 0191
- Downstream MH
- 16 0190
- Dir. of Survey
- Downstream
- Length Surveyed
- 270.3 ft.
- Total Length
- 270.3 ft.
- Structural Index
- 3
- Structural Quick
- 3J2I
- Structural Rating
- 261
- O&M Index
- 1
- O&M Quick
- 1100
- O&M Rating
- 1
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 262
Observation photos (3)

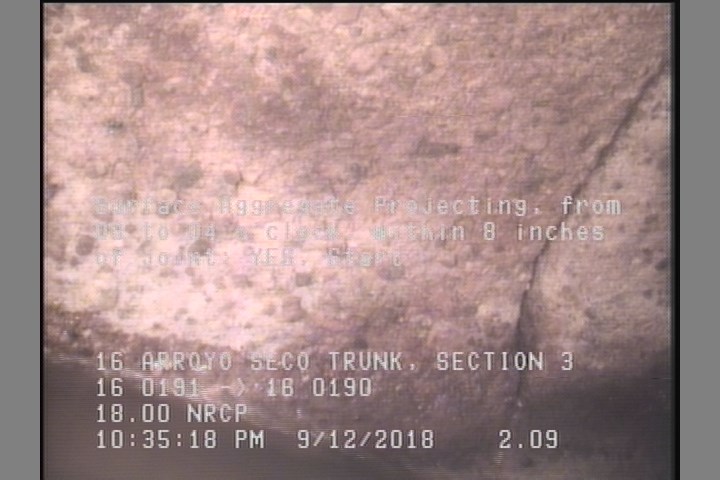

2.1 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

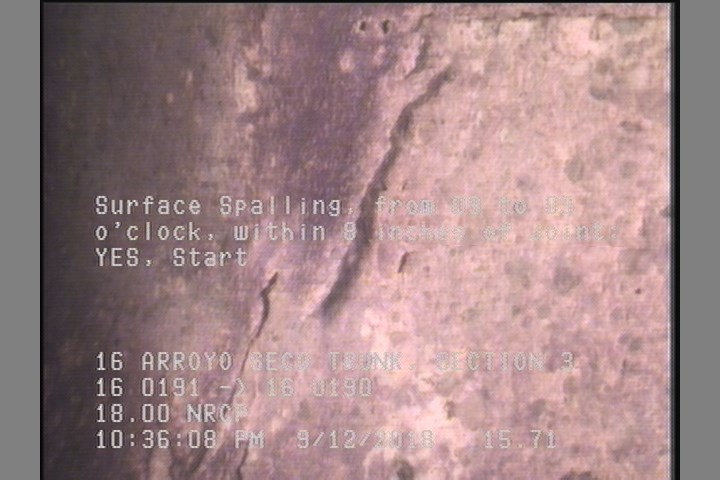

15.7 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

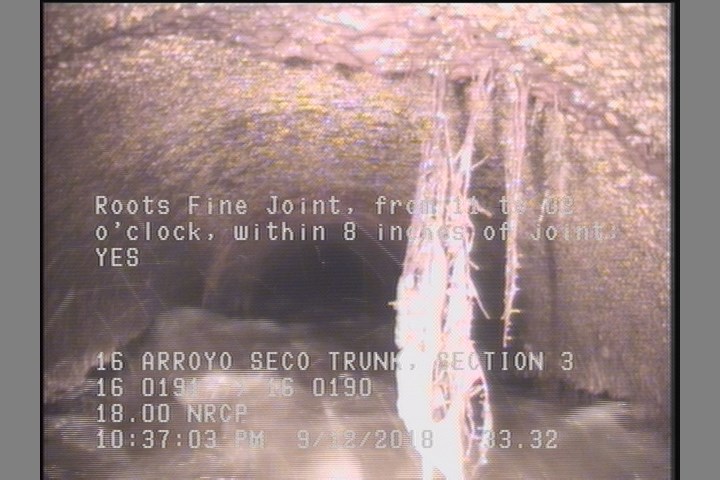

33.3 ft. - Roots Fine Joint, from 11 to 02 o'clock, within 8 inches of joint: YES
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 267.8 | SAP | — |
| 212.2 | TF | — |
| 0 | MGO | CONNECTION AT MH 10 O'CLOCK |
| 15.7 | SSS | — |
| 2.1 | SAP | — |
| 0 | AMH | 16 0191 |
| 270.3 | SSS | — |
| 270.3 | AMH | 16 0190 |
| 33.3 | RFJ | — |
| 0 | MWL | — |
| 128 | TF | — |
| 89.2 | TF | — |
Properties (4)
- additional_info
- SC364817
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-09-12T22:23:17-07:00
