Wastewater/Activity/PacpInspection/1.0Sep 13, 2018, 05:45 AM
16 0190_16 0189_12092018_224556.mp4
- Date
- 09/12/2018
- W/O
- 723757
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00646
- PipeID
- P13233
- Time
- 10:45 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6002
- Sewer Name
- 16 ARROYO SECO TRUNK, SECTION 3
- City
- SOUTH PASADENA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 17
- Purpose
- Routine Assessment
- Project
- WO_723757_TV16114_SEP2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 16 0190
- Downstream MH
- 16 0189
- Dir. of Survey
- Downstream
- Length Surveyed
- 258.2 ft.
- Total Length
- 258.2 ft.
- Structural Index
- 3
- Structural Quick
- 3I2I
- Structural Rating
- 251
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 251
Observation photos (2)

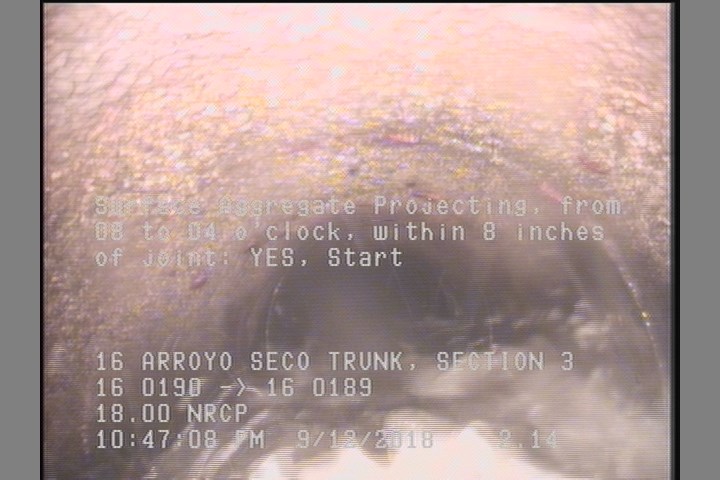

2.1 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

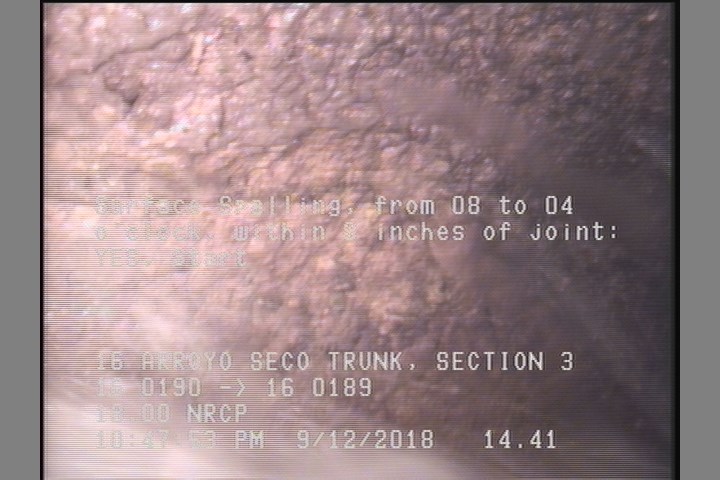

14.4 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 258.2 | SSS | — |
| 258.2 | SAP | — |
| 0 | AMH | 16 0190 |
| 0 | MWL | — |
| 258.2 | AMH | 16 0189 |
| 2.1 | SAP | — |
| 14.4 | SSS | — |
| 0 | MWM | — |
Properties (4)
- additional_info
- SC364817
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-09-12T22:45:19-07:00
