Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 29, 2018, 07:50 AM

  • B 0763_A 0815_10292018_011250.mp4

Date
10/29/2018
W/O
0736798
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00112
PipeID
P09230
Time
12:50 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H1032
Sewer Name
B JOINT OUTFALL B - UNIT 8J
City
ROSEMEAD
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
16
Purpose
Maintenance Related
Project
20181029MDM_JOINT_OUTFALL_B_UNIT_8J
Material
Reinforced Concrete Pipe
Shape
Circular
Height
36 in.
Upstream MH
B 0763
Downstream MH
A 0815
Dir. of Survey
Downstream
Length Surveyed
266.2 ft.
Total Length
266.2 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
0
Overall Quick
—
Overall Rating
0
Pipe schematic from manhole B 0763 to A 0815
MH: B 0763MH: A 0815downstream0 ft. MWL - Water Level, 30 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 12:55AM0 ft. MWL - Water Level, 20 %of cross sectional area79.5 ft. MGO - General Observation - 36" RCP114.2 ft. MGO - General Observation - 36" RCP141.3 ft. MGO - General Observation - 36" RCP266 ft. MGO - General Observation - NO PIPE DAMAGE OBSERVED266.2 ft. AMH - Downstream Manhole, Survey Ends - 1:10AM

Observation photos (3)

  • General Observation - 36" RCP

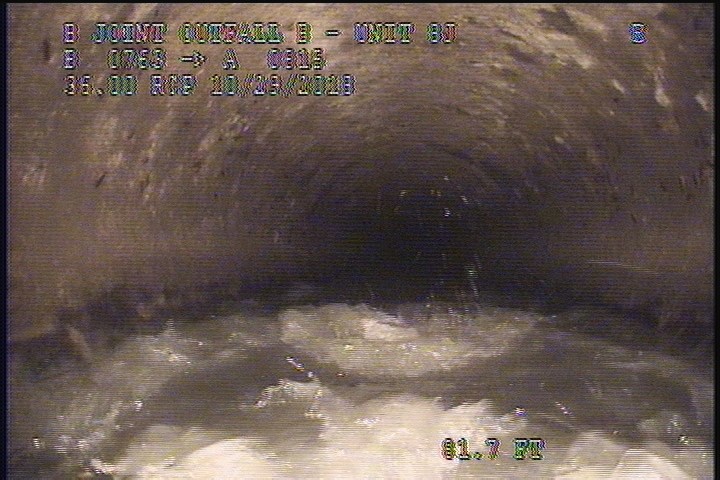

    79.5 ft. - General Observation - 36" RCP

  • General Observation - 36" RCP

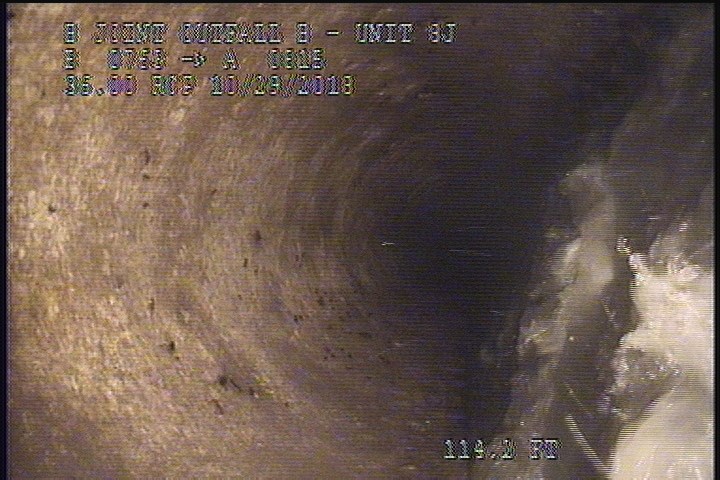

    114.2 ft. - General Observation - 36" RCP

  • General Observation - 36" RCP

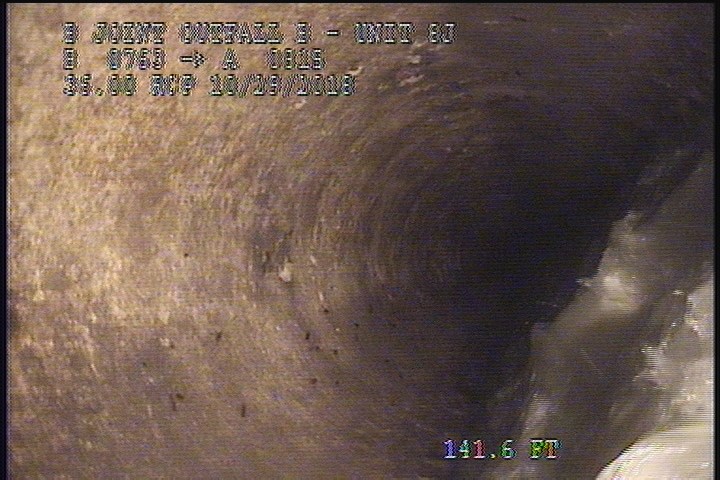

    141.3 ft. - General Observation - 36" RCP

All inspections of P09230Work order 0736798

Observations (8)

DistanceCodeObservation
266MGONO PIPE DAMAGE OBSERVED
114.2MGO36" RCP
79.5MGO36" RCP
0MWL—
266.2AMH1:10AM
0AMH12:55AM
0MWL—
141.3MGO36" RCP

Properties (3)

additional_info
LOOKING FOR PIPE DAMAGE
customer
LACSD
datetime
2018-10-29T00:50:56-07:00
