Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 7, 2017, 07:00 AM

  • J 0277_J 0276_02062017_231227.mpg

Date
02/06/2017
W/O
619078
Weather
Light Rain
Operator/Surveyor
R,VARGAS
Sewer ID
Z00059
PipeID
P11517
Time
11:00 PM
Certificate
U-209-211
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4258
Sewer Name
J JOINT OUTFALL J - UNIT 1G
City
RANCHO PALOS VERDES
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
45
Purpose
Routine Assessment
Project
WO_619078_TV05169_FEB2017
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
24 in.
Width
24 in.
Upstream MH
J 0277
Downstream MH
J 0276
Dir. of Survey
Downstream
Length Surveyed
256 ft.
Total Length
256.1 ft.
Structural Index
3
Structural Quick
3I00
Structural Rating
150
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
3
Overall Quick
—
Overall Rating
152
Pipe schematic from manhole J 0277 to J 0276
MH: J 0277MH: J 0276downstream0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - J 02770 ft. MWM - Water Mark, 20 %of cross sectional area3 ft. MGO - General Observation - MAGNESIUM H.O. START3 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start3 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start90.5 ft. MGP - General Photograph253.3 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish253.3 ft. MGO - General Observation - MAGNEZIUM H.O. FINISH253.3 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish256.1 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK ACTIVE256.1 ft. AMH - Downstream Manhole, Survey Ends - J 0276

Observation photos (3)

  • Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    3 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

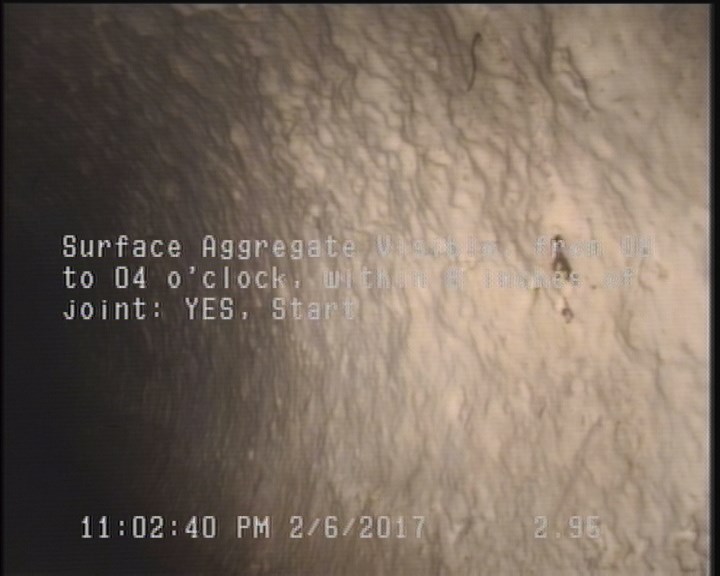

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    3 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

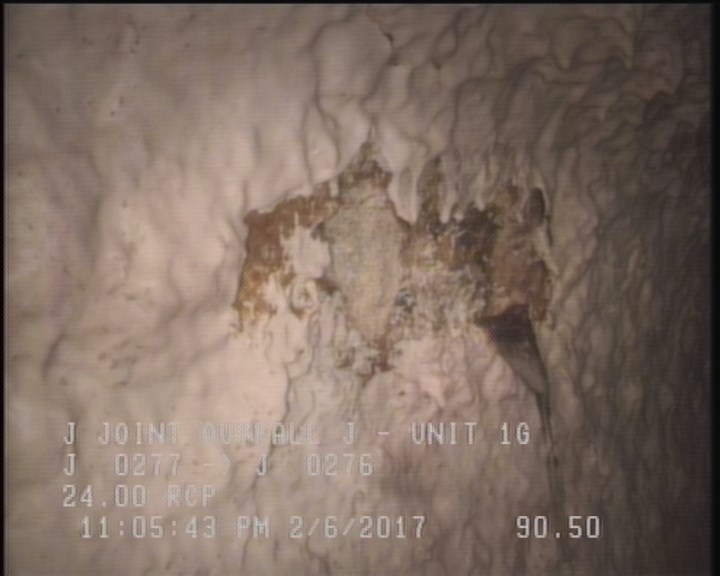

  • General Photograph

    90.5 ft. - General Photograph

All inspections of P11517Work order 619078

Observations (12)

DistanceCodeObservation
253.3SAV—
90.5MGP—
3MGOMAGNESIUM H.O. START
0MWL—
253.3MGOMAGNEZIUM H.O. FINISH
256.1MGOCONNECTION AT MH 9 O'CLOCK ACTIVE
256.1AMHJ 0276
0AMHJ 0277
253.3DAGS—
0MWM—
3DAGS—
3SAV—

Properties (4)

additional_info
SC318650
custom_field_two
3
customer
LACSD
datetime
2017-02-06T23:00:34-08:00
