Wastewater/Activity/PacpInspection/1.0Nov 27, 2017, 10:19 AM
C 0404_C 0403A _11272017_021942.mp4
- Date
- 11/27/2017
- W/O
- 674250
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00143
- PipeID
- P26315
- Time
- 2:19 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5229
- Sewer Name
- C JOINT OUTFALL C - UNIT 8E
- City
- ARTESIA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 40
- Purpose
- Routine Assessment
- Project
- WO_674250_TV02139_DEC2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- C 0404
- Downstream MH
- C 0403A
- Dir. of Survey
- Downstream
- Length Surveyed
- 67.2 ft.
- Total Length
- 67.2 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2B00
- O&M Rating
- 26
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 26
Observation photos (1)

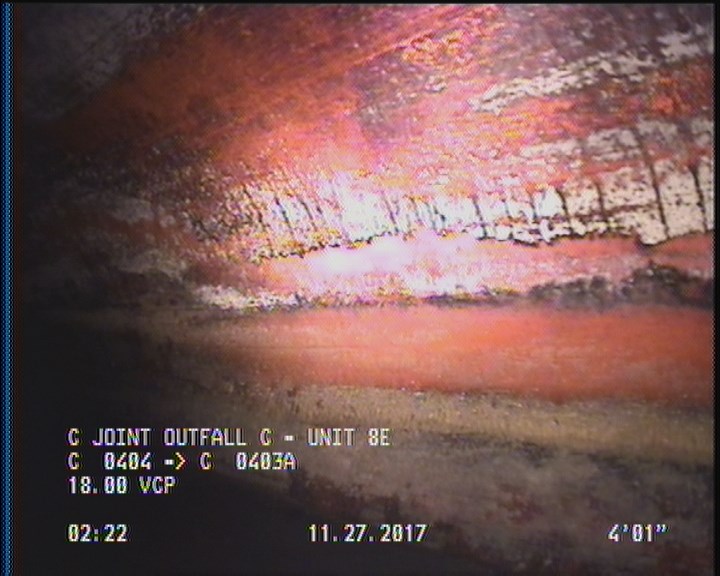

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 65.8 | DAGS | — |
| 65.8 | MGO | COCKROACHES IN MANHOLE |
| 0 | AMH | C 0404 |
| 67.1 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 2 | DAGS | — |
| 0 | MWM | — |
| 0 | MGO | COCKROACHES IN MANHOLE |
| 67.2 | AMH | C 0403A |
| 0 | MWL | — |
Properties (5)
- additional_info
- SC346100
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-11-27T02:19:21-08:00
- year_laid
- 26597
