Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 23, 2016, 11:32 AM

  • 04 0082_04 0081_23022016_033318.mp4

Date
02/23/2016
W/O
552531
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00415
PipeID
P11820
Time
3:32 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3264
Sewer Name
04 SHERMAN TRUNK
City
WEST HOLLYWOOD
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 04
Page No.
01
Purpose
Routine Assessment
Project
WO_552531_TV04009_FEB2016
Sewer Type
GRAVITY
Material
Vitrified Clay Pipe
Lining Method
Segmented Panel
Shape
Circular
Height
12 in.
Upstream MH
04 0082
Downstream MH
04 0081
Dir. of Survey
Downstream
Length Surveyed
260.7 ft.
Total Length
260.7 ft.
Structural Index
3
Structural Quick
3I00
Structural Rating
153
O&M Index
2
O&M Quick
2I00
O&M Rating
104
Overall Index
3
Overall Quick
—
Overall Rating
257
Pipe schematic from manhole 04 0082 to 04 0081
MH: 04 0082MH: 04 0081downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. AMH - Upstream Manhole, Survey Begins - 04 00820 ft. MWM - Water Mark, 20 %of cross sectional area2.4 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start5.1 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start25 ft. TFA - Tap Factory Made Active, at 09 o'clock, -, within 8 inches of joint: NO, 6"35.7 ft. TBA - Tap Break-In Active, at 03 o'clock, -, within 8 inches of joint: NO, 6"47.4 ft. TFA - Tap Factory Made Active, at 03 o'clock, -, within 8 inches of joint: NO, 6"77.8 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"94.3 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"134.6 ft. TFA - Tap Factory Made Active, at 03 o'clock, -, within 8 inches of joint: NO, 6"181 ft. TBA - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"184.8 ft. TFA - Tap Factory Made Active, at 03 o'clock, -, within 8 inches of joint: NO, 6"191.2 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"237.3 ft. TFA - Tap Factory Made Active, at 03 o'clock, -, within 8 inches of joint: NO, 6"260.7 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish260.7 ft. MGO - General Observation - CONNECTION AT MH 8 O'CLOCK260.7 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish260.7 ft. AMH - Downstream Manhole, Survey Ends - 04 0081260.7 ft. MGO - General Observation - COCKROACHES IN MANHOLE

Observation photos (4)

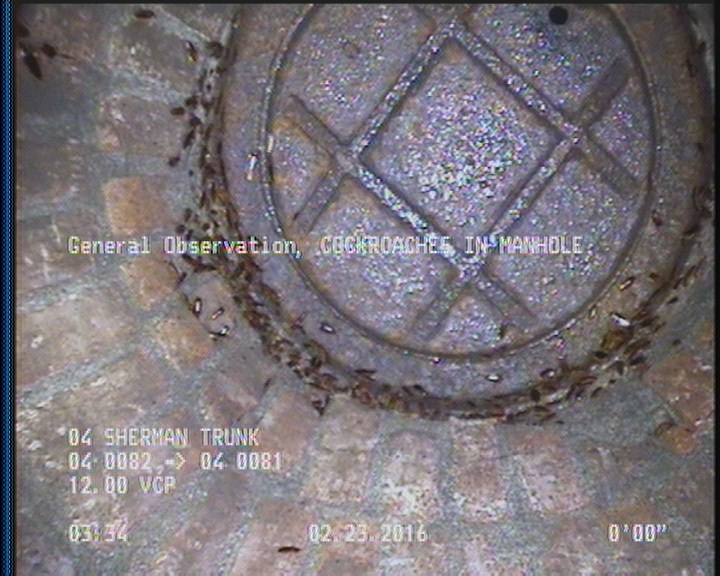

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

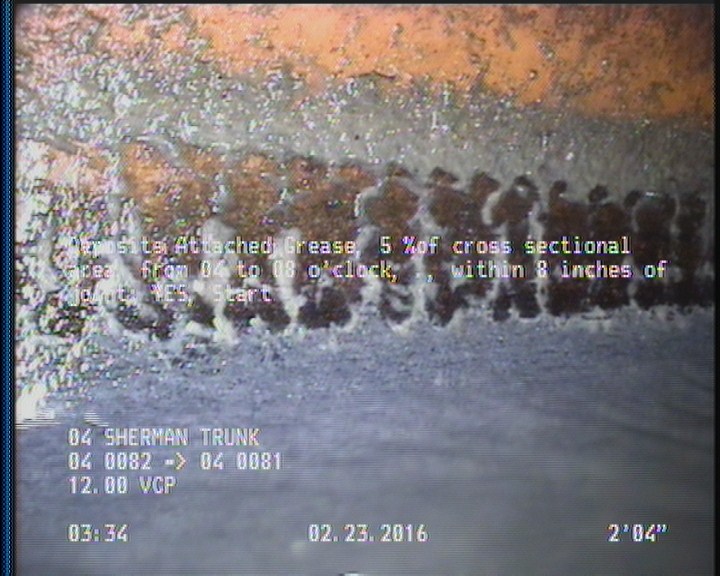

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2.4 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

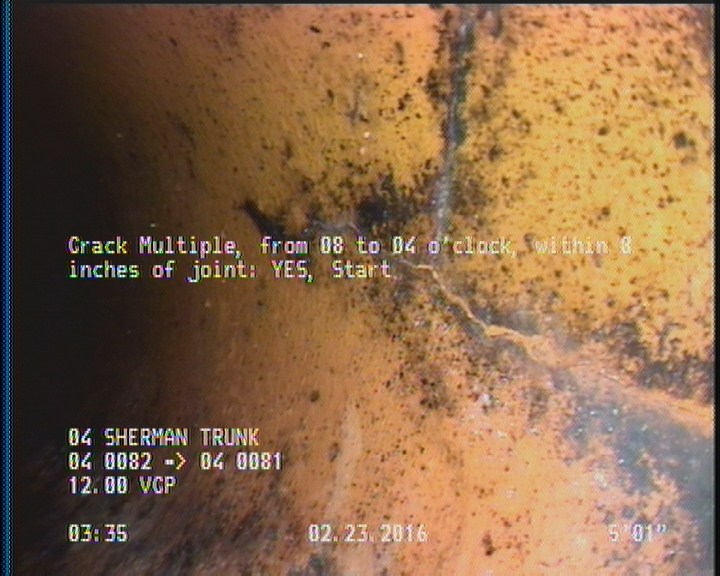

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    5.1 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

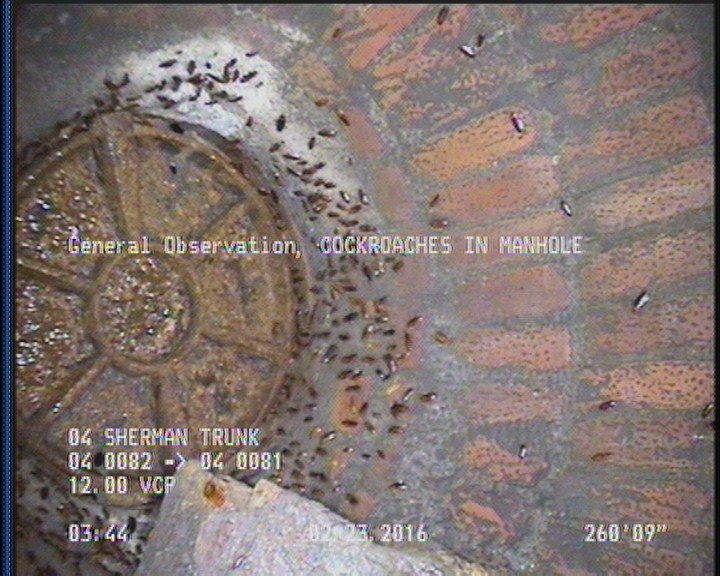

  • General Observation - COCKROACHES IN MANHOLE

    260.7 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P11820Work order 552531

Observations (21)

DistanceCodeObservation
0MWL—
2.4DAGS—
5.1CM—
260.7DAGS—
260.7MGOCONNECTION AT MH 8 O'CLOCK
35.7TBA—
94.3TFA—
237.3TFA—
181TBA—
134.6TFA—
77.8TFA—
25TFA—
260.7CM—
0MGOCOCKROACHES IN MANHOLE
184.8TFA—
260.7AMH04 0081
0AMH04 0082
47.4TFA—
191.2TFA—
260.7MGOCOCKROACHES IN MANHOLE
0MWM—

Properties (4)

additional_info
SC225487
custom_field_two
3
customer
LACSD
datetime
2016-02-23T03:32:54-08:00
