Wastewater/Activity/PacpInspection/1.0Aug 16, 2016, 07:34 AM
B 1067_B 1064 _08162016_004958.mp4
- Date
- 08/16/2016
- W/O
- 585984
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00923
- PipeID
- P22909
- Time
- 12:34 AM
- Certificate
- U-507-03-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3683
- Sewer Name
- B JOINT OUTFALL B - UNIT 1C REPLACEMENT
- City
- MONTEBELLO, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 19
- Purpose
- Routine Assessment
- Project
- WO_585984_TV02129_AUG2016
- Sewer Type
- Gravity
- Material
- RGRCP-PTL
- Shape
- Circular
- Height
- 78 in.
- Width
- 78 in.
- Upstream MH
- B 1067
- Downstream MH
- B 1064
- Dir. of Survey
- Downstream
- Length Surveyed
- 489.2 ft.
- Total Length
- 489.2 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (1)

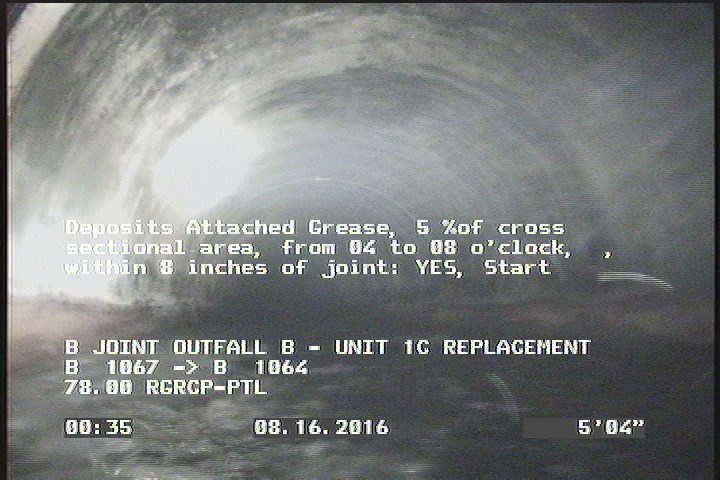

5.3 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 5.3 | DAGS | — |
| 0 | MGO | CONNECTION AT THE MH 3 O'CLOCK ACTIVE |
| 0 | MWM | — |
| 489.2 | AMH | B 1064 |
| 489.2 | MGO | CONNECTION AT THE MH 3 O'CLOCK ACTIVE |
| 477.3 | DAGS | — |
| 0 | AMH | B 1067 |
Properties (4)
- additional_info
- SC306013
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-08-16T00:34:00-07:00
