Wastewater/Activity/PacpInspection/1.0Oct 26, 2016, 02:01 PM
29 0673_29 0672 _20161026_080806.mp4
- Date
- 10/26/2016
- W/O
- 579989
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00985
- PipeID
- P24921
- Time
- 7:01 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3812
- Sewer Name
- 29 CHERRY AVENUE SEWER
- City
- SIGNAL HILL
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 29
- Page No.
- 04
- Purpose
- Routine Assessment
- Project
- WO_579989_TV29019_AUG2016
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 8 in.
- Width
- 8 in.
- Upstream MH
- 29 0672
- Downstream MH
- 29 0673
- Dir. of Survey
- Upstream
- Length Surveyed
- 120.4 ft.
- Total Length
- 120.4 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (1)

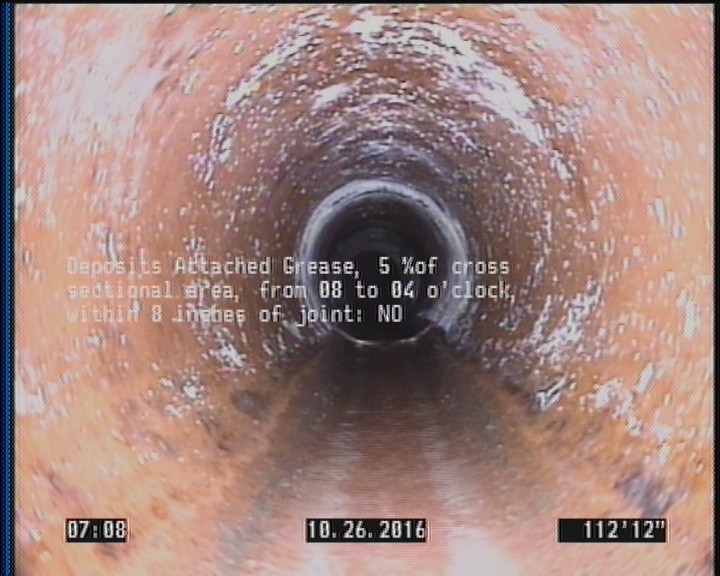

113 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: NO
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 120.4 | AMH | 29 0673 |
| 0 | AMH | 29 0672 |
| 86.4 | TF | — |
| 0 | MGO | CONNECTION AT THE MH 3 O'CLOCK |
| 113 | DAGS | — |
| 0 | MWM | — |
Properties (4)
- additional_info
- SC304559
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-10-26T07:01:57-07:00
