Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 5, 2017, 09:04 AM

  • Section#5_F 0028_F 0027__852017__G6793.mp4

Date
08/05/2017
W/O
0646716
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00033
PipeID
P10118
Time
2:04 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G6793
Sewer Name
F JOINT OUTFALL F - UNIT 1
City
LONG BEACH
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 03
Page No.
02
Purpose
Capital Improvement Program Assesment
Project
20170805MDM_JOINT_OUTFALL_F_UNIT_1
Material
Reinforced Concrete Pipe
Shape
Circular
Height
69 in.
Upstream MH
F 0028
Downstream MH
F 0027
Dir. of Survey
Downstream
Length Surveyed
530.6 ft.
Total Length
530.6 ft.
Structural Index
4
Structural Quick
5S4T
Structural Rating
934
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
4
Overall Quick
—
Overall Rating
938
Pipe schematic from manhole F 0028 to F 0027
MH: F 0028MH: F 0027downstream0 ft. AMH - Upstream Manhole, Survey Begins - 6:05AM0 ft. MWL - Water Level, 30 %of cross sectional area0 ft. MWM - Water Mark, 50 %of cross sectional area2 ft. SAM - Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG2 ft. MGO - General Observation - MAG COAT 80% START 8:00 TO 4:0012.4 ft. SRV - Surface Reinforcement Visible, from 11 to 12 o'clock, within 8 inches of joint: NO, Start - CIRCUM REBAR UNDER MAG COAT21.1 ft. SRV - Surface Reinforcement Visible, from 11 to 12 o'clock, within 8 inches of joint: NO, Finish - CIRCUM REBAR41.3 ft. SRV - Surface Reinforcement Visible, from 11 to 01 o'clock, within 8 inches of joint: YES, Start - CIRCUM REBAR UNDER MAG SPORATIC88 ft. SRV - Surface Reinforcement Visible, from 11 to 01 o'clock, within 8 inches of joint: NO - CIRCUM REBAR416.7 ft. SRV - Surface Reinforcement Visible, from 10 to 12 o'clock, within 8 inches of joint: NO - CIRCUM REBAR530.2 ft. SAM - Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - SEVERE AGG530.2 ft. SRV - Surface Reinforcement Visible, from 11 to 01 o'clock, within 8 inches of joint: YES, Finish - CIRCUM REBAR UNDER MAG SPORATIC530.6 ft. AMH - Downstream Manhole, Survey Ends - 6:45AM

Observation photos (6)

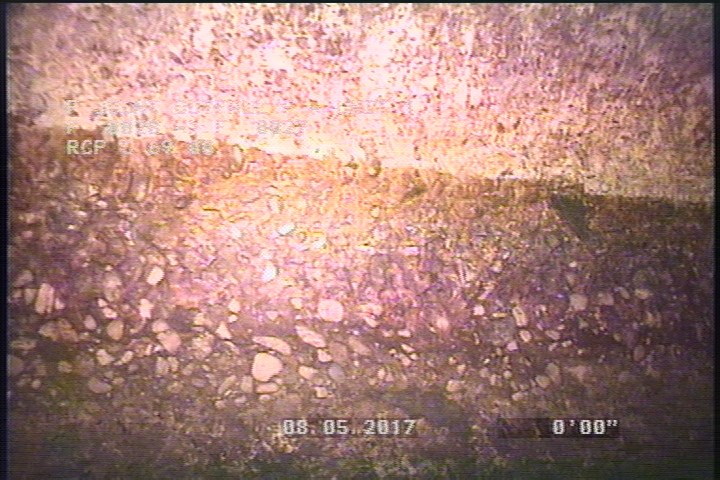

  • Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG

    2 ft. - Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG

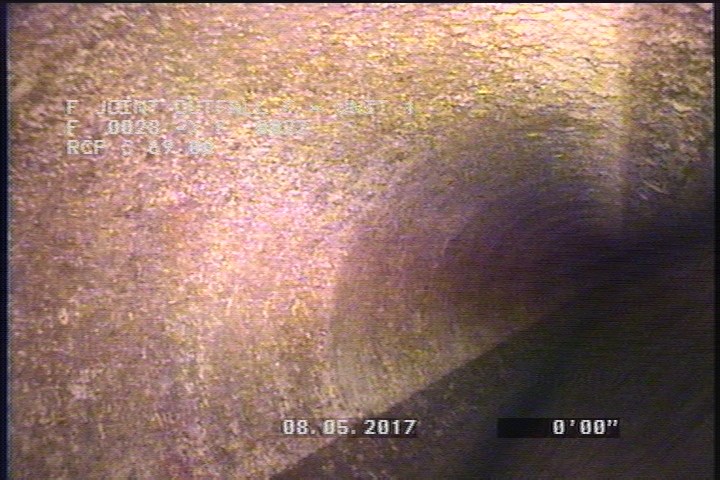

  • General Observation - MAG COAT 80% START 8:00 TO 4:00

    2 ft. - General Observation - MAG COAT 80% START 8:00 TO 4:00

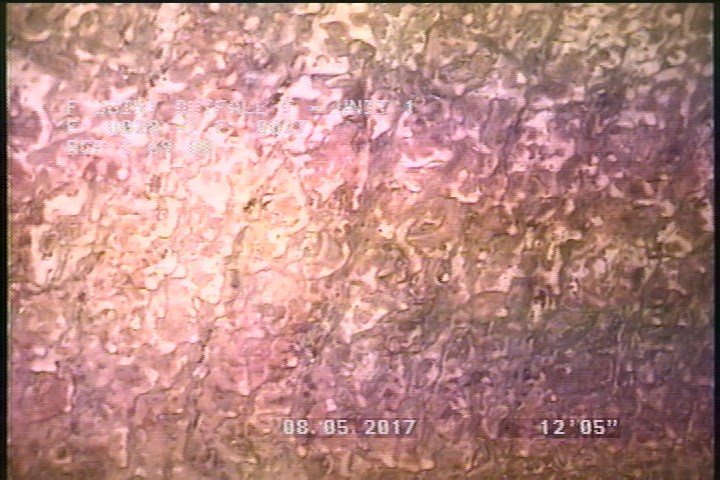

  • Surface Reinforcement Visible, from 11 to 12 o'clock, within 8 inches of joint: NO, Start - CIRCUM REBAR UNDER MAG COAT

    12.4 ft. - Surface Reinforcement Visible, from 11 to 12 o'clock, within 8 inches of joint: NO, Start - CIRCUM REBAR UNDER MAG COAT

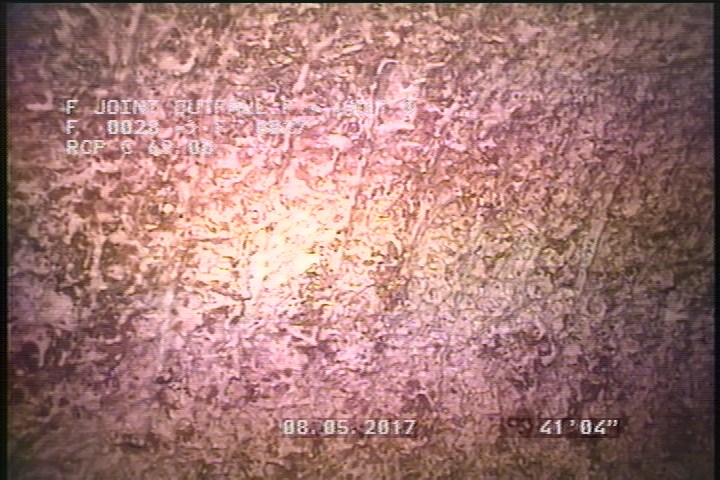

  • Surface Reinforcement Visible, from 11 to 01 o'clock, within 8 inches of joint: YES, Start - CIRCUM REBAR UNDER MAG SPORATIC

    41.3 ft. - Surface Reinforcement Visible, from 11 to 01 o'clock, within 8 inches of joint: YES, Start - CIRCUM REBAR UNDER MAG SPORATIC

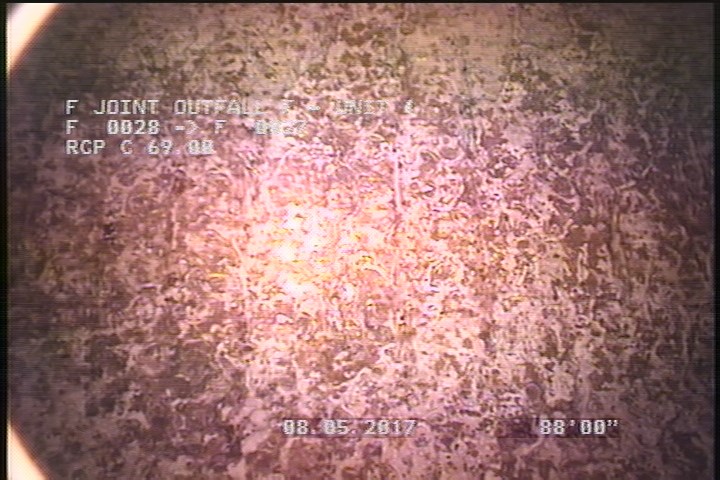

  • Surface Reinforcement Visible, from 11 to 01 o'clock, within 8 inches of joint: NO - CIRCUM REBAR

    88 ft. - Surface Reinforcement Visible, from 11 to 01 o'clock, within 8 inches of joint: NO - CIRCUM REBAR

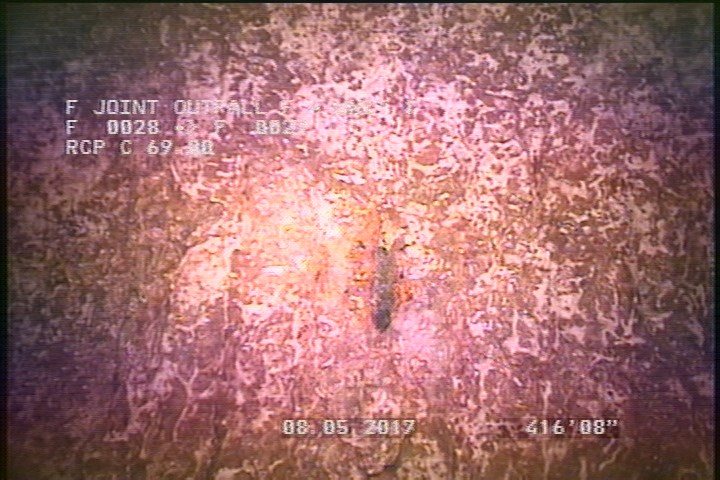

  • Surface Reinforcement Visible, from 10 to 12 o'clock, within 8 inches of joint: NO - CIRCUM REBAR

    416.7 ft. - Surface Reinforcement Visible, from 10 to 12 o'clock, within 8 inches of joint: NO - CIRCUM REBAR

All inspections of P10118Work order 0646716

Observations (13)

DistanceCodeObservation
12.4SRVCIRCUM REBAR UNDER MAG COAT
2SAMSEVERE AGG
2MGOMAG COAT 80% START 8:00 TO 4:00
0AMH6:05AM
41.3SRVCIRCUM REBAR UNDER MAG SPORATIC
88SRVCIRCUM REBAR
0MWL—
0MWM—
530.2SAMSEVERE AGG
530.6AMH6:45AM
416.7SRVCIRCUM REBAR
21.1SRVCIRCUM REBAR
530.2SRVCIRCUM REBAR UNDER MAG SPORATIC

Properties (4)

custom_field_three
CIRCUM REBAR VISIBLE
custom_field_two
2
customer
LACSD
datetime
2017-08-05T02:04:22-07:00
