  • Section#3_H 0333_H 0332__872017__G6794.mp4

Date
08/07/2017
W/O
0646404
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00175
PipeID
P10783
Time
2:46 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G6794
Sewer Name
H JOINT OUTFALL H - UNIT 4
City
PICO RIVERA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
19A
Purpose
Capital Improvement Program Assesment
Project
20170807MDM_JOINT_OUTFALL_H_UNIT_4
Material
Reinforced Concrete Pipe
Shape
Circular
Height
57 in.
Upstream MH
H 0333
Downstream MH
H 0332
Dir. of Survey
Downstream
Length Surveyed
277.8 ft.
Total Length
277.8 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
4
Overall Quick
—
Overall Rating
7
Pipe schematic from manhole H 0333 to H 0332
MH: H 0333MH: H 0332downstream0 ft. MWM - Water Mark, 60 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 3:40AM0 ft. MWL - Water Level, 30 %of cross sectional area2 ft. MGO - General Observation - MAG COAT 100% 9:00 TO 3:00 START14.9 ft. MGP - General Photograph - MAG COAT66.2 ft. SAV - Surface Aggregate Visible, at 12 o'clock, within 8 inches of joint: NO - SEVERE AGG UNDER MAG COAT277.5 ft. MGO - General Observation - MAG COAT 100% FINISH277.5 ft. MGO - General Observation - PIPE RUNS THROUGH MH277.8 ft. AMH - Downstream Manhole, Survey Ends - 4:10AM

Observation photos (4)

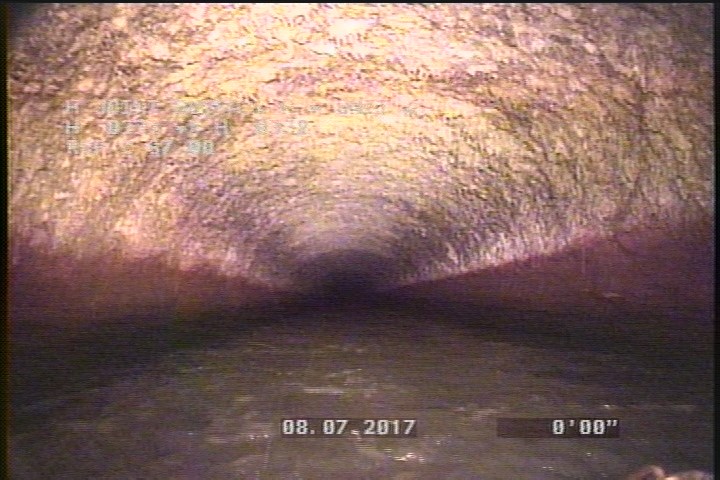

  • General Observation - MAG COAT 100% 9:00 TO 3:00 START

    2 ft. - General Observation - MAG COAT 100% 9:00 TO 3:00 START

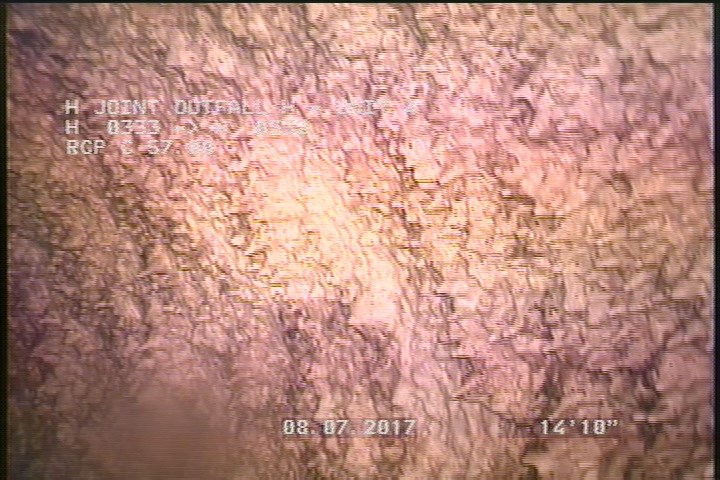

  • General Photograph - MAG COAT

    14.9 ft. - General Photograph - MAG COAT

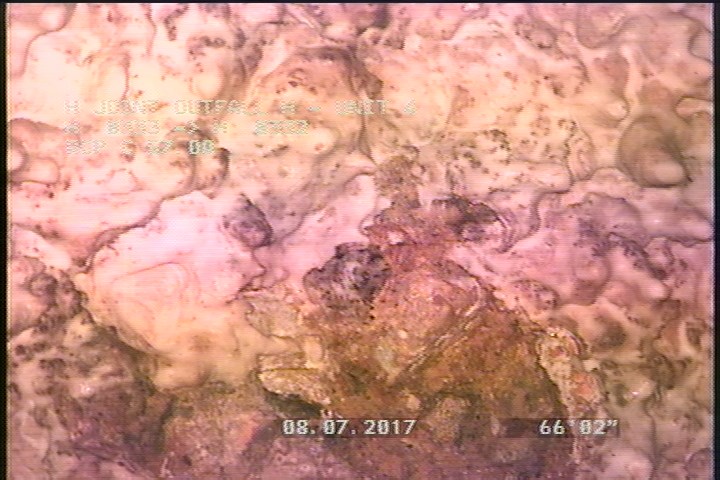

  • Surface Aggregate Visible, at 12 o'clock, within 8 inches of joint: NO - SEVERE AGG UNDER MAG COAT

    66.2 ft. - Surface Aggregate Visible, at 12 o'clock, within 8 inches of joint: NO - SEVERE AGG UNDER MAG COAT

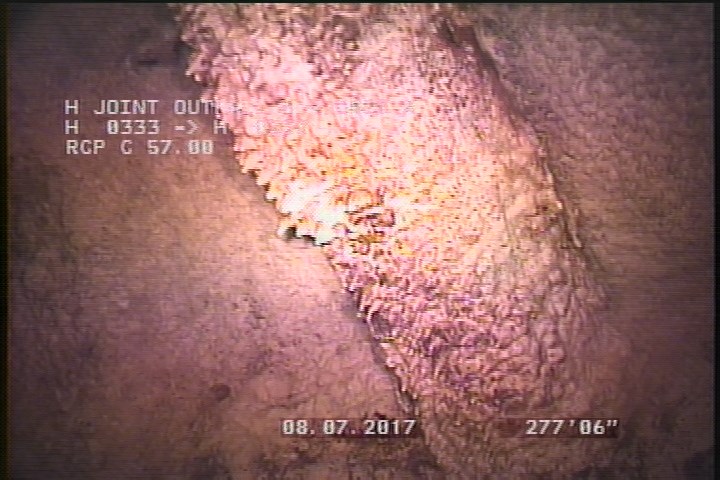

  • General Observation - PIPE RUNS THROUGH MH

    277.5 ft. - General Observation - PIPE RUNS THROUGH MH

All inspections of P10783Work order 0646404

Observations (9)

DistanceCodeObservation
277.8AMH4:10AM
0MWM—
0AMH3:40AM
66.2SAVSEVERE AGG UNDER MAG COAT
277.5MGOMAG COAT 100% FINISH
14.9MGPMAG COAT
277.5MGOPIPE RUNS THROUGH MH
0MWL—
2MGOMAG COAT 100% 9:00 TO 3:00 START

Properties (4)

custom_field_three
100% MAG COAT
custom_field_two
5
customer
LACSD
datetime
2017-08-07T02:46:37-07:00
